4

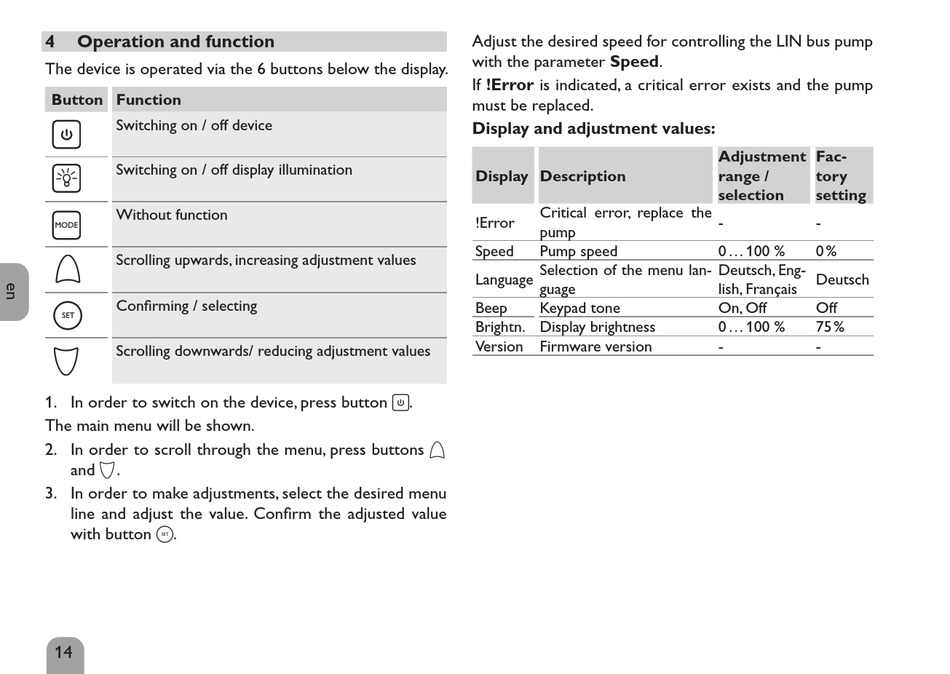

Operation and function

The device is operated via the 6 buttons below the display.

Button Function

Switching on / off device
Switching on / off display illumination
Without function
Scrolling upwards, increasing adjustment values
Confirming / selecting
Scrolling downwards/ reducing adjustment values
1. In order to switch on the device, press button ⚭.
The main menu will be shown.
2. In order to scroll through the menu, press buttons ♉
and ♊.
3. In order to make adjustments, select the desired menu
line and adjust the value. Confirm the adjusted value
with button ♟.
14
Adjust the desired speed for controlling the LIN bus pump
with the parameter Speed.
If !Error is indicated, a critical error exists and the pump
must be replaced.
Display and adjustment values:

Display Description

Critical error, replace the
!Error
pump
Speed Pump speed
Selection of the menu lan-
Language
guage
Beep Keypad tone
Brightn. Display brightness
Version Firmware version
Adjustment Fac-
range / tory
selection setting
- -
0 ... 100 % 0 %
Deutsch, Eng-
Deutsch
lish, Français
On, Off Off
0 ... 100 % 75 %
- -
