INSTRUCTION MANUAL
ZigBee+RF Switch Module
MS-104Z
1
2. Without switch
L
N
Light
3. With 2 Way switches
L
N
2 Way Switches
2 Way Switches
Light
5
Powered By
Global international operation Whenever & Wherever
You are,All-in-one Mobile App
Schedule timer
Voice control-work
Voice control-work
with Google Home
with Amazon Alexa
Anywhere
APP
ZigBee
Mesh
ZigBee Hub
Inhouse local operation
APP
App
Router
Voice control
Rocker switch
2
4. With Wall Socket
L
N
Wall Socket
Wiring Instructions and Diagrams
1.Turn off the power supply before carrying out any
electrical installation work.
2. Connect wires according to the wiring diagram.
3. Insert the module into the junction box.
4. Connect the power supply and follow switch module
configuration instructions.
Notes:
Put your smartphone close to the switch
module when you're configuring, and make
sure you have min. 50% Wi-Fi signal.
6
Push wall switch
Rocker light switch
(Reset switch)
Device Sharing

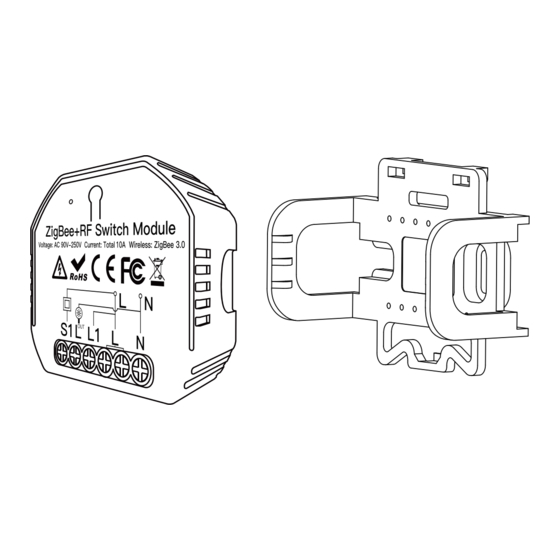

INSTALLATION
Mounting Clip
Warnings:
1. This is a Zigbee smart module switch that must be
used under Zigbee gateway hub connected with
Zigebee protocol.
2.
Installation must be carried out by a qualified electrician in
accordance with local regulations.
3.
Keep the device out of the reach of children and away from
water,damp or hot environment.
4. Install the device away from strong signal sources such as
microwave oven that may cause signal interruption resulted
in abnormal operation of the device.
5. Obstruction by concrete wall or metallic materials may
reduce the effective operation range of the device and
should be avoided.
6. Do NOT attempt to disassemble,repair or modify the device.
52 mm
S2
Push wall switch
(Reset switch)
FAQ:
Q1: What should I do if I can't configure the switch module?
a. Please check whether device is powered on.
b. Make sure your mobile and Zigbee gataway hub
are under the same 2.4GHz WiFi network.
c. Whether it's in good internet conditions.
d. Make sure the password entered in App is correct.
e. Make sure the wiring is correct.
Q2: What device can be connected to this Zigbee switch
module?
Most of your household electrical appliances can be,
such as lamps, laundry machine, coffe maker, etc.
Q3: What happens if the WiFi goes off?
You can still control the device connected the switch
module with your traditional switch and once WiFi is
active again the devices connected to App will
connect automatically for normal control.
Q4: What should I do if I change the WiFi network or
change the password?
You have to re-connect your Zigbee gateway hub to the
n
ew WiFi network according
TECHNICAL SPECIFICATIONS
Product type
Voltage
Current
Wireless Protocol
Operation temp.
Case temp.
Operation range
Dims (WxDxH)
IP rating
Warranty
WIRING DIAGRAM
1. With one switch
L
N
L
2
S1
L
1
L
N
3
MANUAL OVERRIDE
The Zigbee switch module terminal reserves the access of
manual override fu nction for the end-user to switch on/off.
• Switch on/off for permanent on/off function.
Notes:
1) Both the adjustment on App and switch can be reset,
the last adjustment remains in memory.
2) The App control is synchronized with the manual
switch.
to he App User Manual.
t
Scan the QR code to download Smart Life App, or
you can also search keyword "Smart Life" at App
Store or Googleplay to download App.
7
ZigBee +RF Switch Module
90-250V AC
10A
ZigBee 3.0
-10ºC - +40ºC
Tc: +80ºC (Max.)
≤200 m
52x47x18 mm
IP20
1 year
Light switch
Light
4
APP USER MANUAL
iOS App / Android App
8
