USING THE ACCESSORIES

CONNECTOR
The connector is used to attach the triangular tool
or the rectangular tool to the extension tubes
or the steam hose.
POSITION 1 - ASSEMBLY

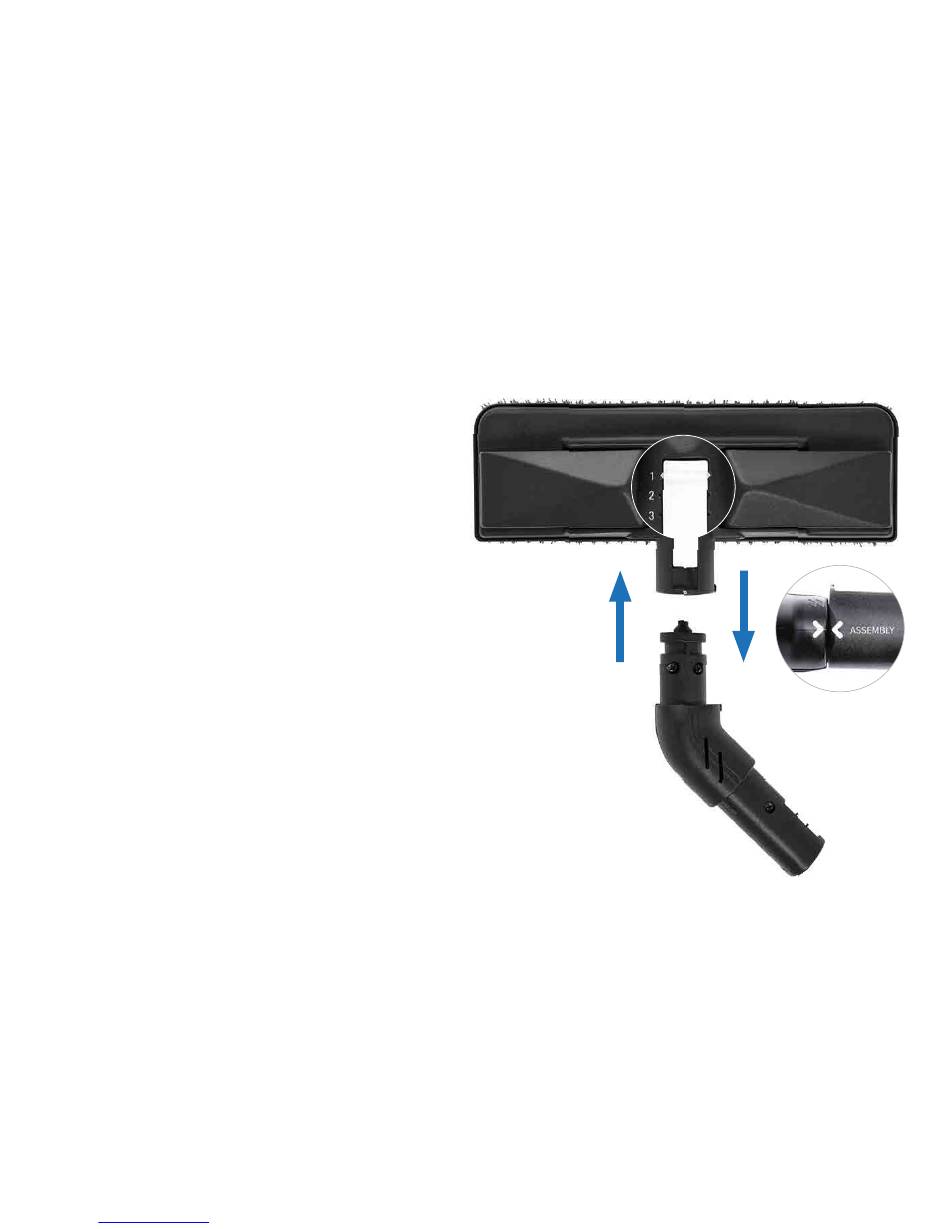

Installing the connector
• Slide the white lever to the first position (Assembly).
• Insert the connector sideways, aligning the two white arrows.
• Rotate the connector to align the arrow with the white dot on the tool.
Removing the connector
• Align the white dot with the arrow on the connector.
• Slide the white lever to the first position (Assembly).
• Rotate the connector to align the two white arrows.
• Pull out the connector.
