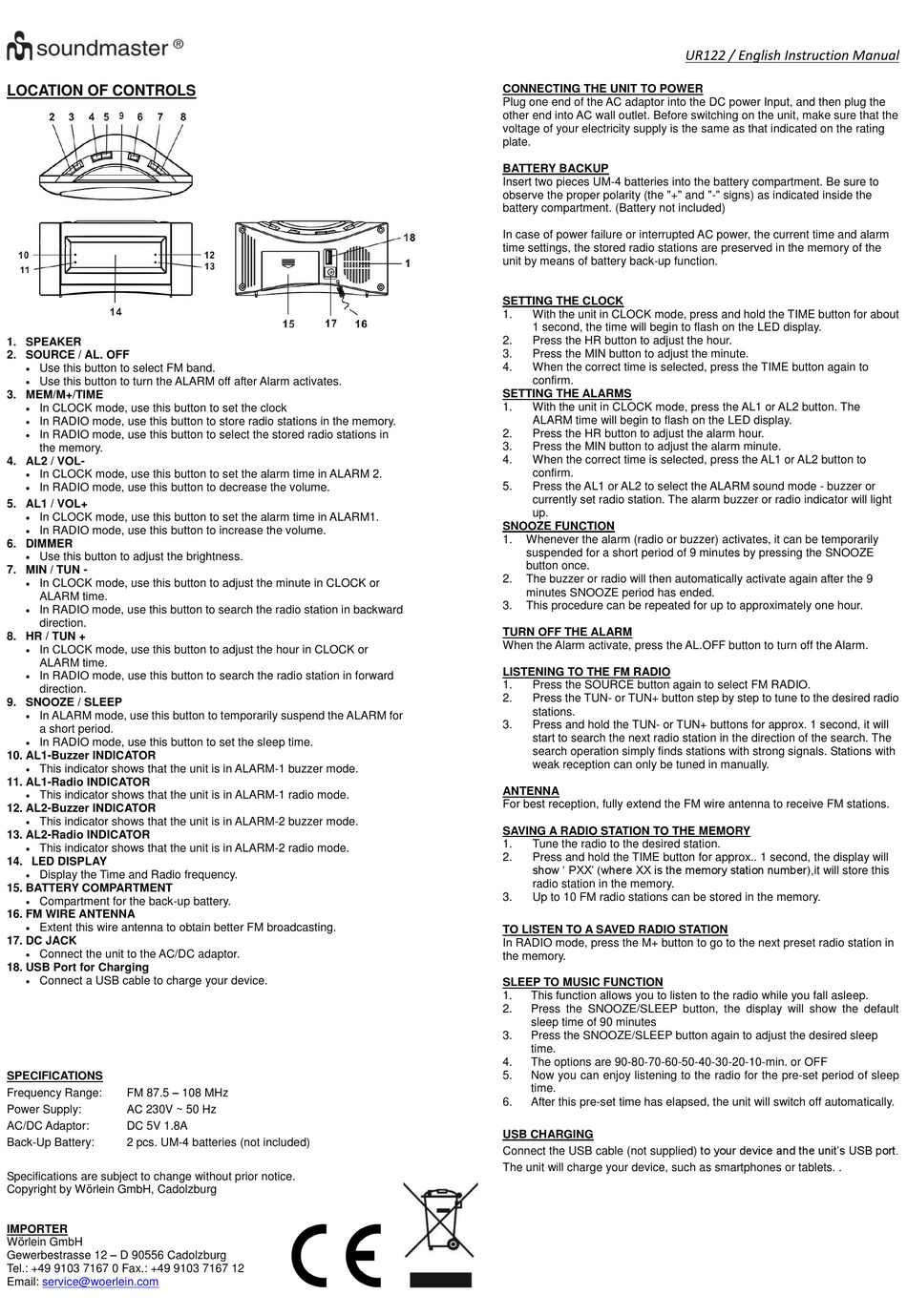

LOCATION OF CONTROLS

1. SPEAKER
2. SOURCE / AL. OFF
 Use this button to select FM band.
 Use this button to turn the ALARM off after Alarm activates.
3. MEM/M+/TIME
 In CLOCK mode, use this button to set the clock
 In RADIO mode, use this button to store radio stations in the memory.
 In RADIO mode, use this button to select the stored radio stations in
the memory.
4. AL2 / VOL-
 In CLOCK mode, use this button to set the alarm time in ALARM 2.
 In RADIO mode, use this button to decrease the volume.
5. AL1 / VOL+

In CLOCK mode, use this button to set the alarm time in ALARM1.
 In RADIO mode, use this button to increase the volume.
6. DIMMER
 Use this button to adjust the brightness.
7. MIN / TUN -
 In CLOCK mode, use this button to adjust the minute in CLOCK or
ALARM time.
 In RADIO mode, use this button to search the radio station in backward
direction.
8. HR / TUN +
 In CLOCK mode, use this button to adjust the hour in CLOCK or
ALARM time.
 In RADIO mode, use this button to search the radio station in forward
direction.
9. SNOOZE / SLEEP
 In ALARM mode, use this button to temporarily suspend the ALARM for
a short period.

In RADIO mode, use this button to set the sleep time.
10. AL1-Buzzer INDICATOR
 This indicator shows that the unit is in ALARM-1 buzzer mode.
11. AL1-Radio INDICATOR
 This indicator shows that the unit is in ALARM-1 radio mode.
12. AL2-Buzzer INDICATOR
 This indicator shows that the unit is in ALARM-2 buzzer mode.
13. AL2-Radio INDICATOR

This indicator shows that the unit is in ALARM-2 radio mode.
14. LED DISPLAY
 Display the Time and Radio frequency.
15. BATTERY COMPARTMENT
 Compartment for the back-up battery.
16. FM WIRE ANTENNA
 Extent this wire antenna to obtain better FM broadcasting.
17. DC JACK

Connect the unit to the AC/DC adaptor.
18. USB Port for Charging
 Connect a USB cable to charge your device.
SPECIFICATIONS
FM 87.5 – 108 MHz
Frequency Range:
Power Supply: AC 230V ~ 50 Hz
AC/DC Adaptor: DC 5V 1.8A
Back-Up Battery: 2 pcs. UM-4 batteries (not included)
Specifications are subject to change without prior notice.
Copyright by Wörlein GmbH, Cadolzburg
IMPORTER
Wörlein GmbH
Gewerbestrasse 12 – D 90556 Cadolzburg
Tel.: +49 9103 7167 0 Fax.: +49 9103 7167 12
Email: service@woerlein.com
CONNECTING THE UNIT TO POWER
Plug one end of the AC adaptor into the DC power Input, and then plug the
other end into AC wall outlet. Before switching on the unit, make sure that the
voltage of your electricity supply is the same as that indicated on the rating
plate.
BATTERY BACKUP
Insert two pieces UM-4 batteries into the battery compartment. Be sure to
observe the proper polarity (the "+" and "-" signs) as indicated inside the
battery compartment. (Battery not included)
In case of power failure or interrupted AC power, the current time and alarm
time settings, the stored radio stations are preserved in the memory of the
unit by means of battery back-up function.
SETTING THE CLOCK
1. With the unit in CLOCK mode, press and hold the TIME button for about
1 second, the time will begin to flash on the LED display.
2. Press the HR button to adjust the hour.
3. Press the MIN button to adjust the minute.
4. When the correct time is selected, press the TIME button again to
confirm.
SETTING THE ALARMS
1. With the unit in CLOCK mode, press the AL1 or AL2 button. The
ALARM time will begin to flash on the LED display.
2. Press the HR button to adjust the alarm hour.
3. Press the MIN button to adjust the alarm minute.
4. When the correct time is selected, press the AL1 or AL2 button to
confirm.
5. Press the AL1 or AL2 to select the ALARM sound mode - buzzer or
currently set radio station. The alarm buzzer or radio indicator will light
up.
SNOOZE FUNCTION
1. Whenever the alarm (radio or buzzer) activates, it can be temporarily
suspended for a short period of 9 minutes by pressing the SNOOZE
button once.
2. The buzzer or radio will then automatically activate again after the 9
minutes SNOOZE period has ended.
3. This procedure can be repeated for up to approximately one hour.
TURN OFF THE ALARM
When the Alarm activate, press the AL.OFF button to turn off the Alarm.
LISTENING TO THE FM RADIO
1. Press the SOURCE button again to select FM RADIO.
2. Press the TUN- or TUN+ button step by step to tune to the desired radio
stations.
3. Press and hold the TUN- or TUN+ buttons for approx. 1 second, it will
start to search the next radio station in the direction of the search. The
search operation simply finds stations with strong signals. Stations with
weak reception can only be tuned in manually.
ANTENNA
For best reception, fully extend the FM wire antenna to receive FM stations.
SAVING A RADIO STATION TO THE MEMORY
1. Tune the radio to the desired station.
2. Press and hold the TIME button for approx.. 1 second, the display will
show ' PXX' (where XX is the memory station number),it will store this
radio station in the memory.
3. Up to 10 FM radio stations can be stored in the memory.
TO LISTEN TO A SAVED RADIO STATION
In RADIO mode, press the M+ button to go to the next preset radio station in
the memory.
SLEEP TO MUSIC FUNCTION
1. This function allows you to listen to the radio while you fall asleep.
2. Press the SNOOZE/SLEEP button, the display will show the default
sleep time of 90 minutes
3. Press the SNOOZE/SLEEP button again to adjust the desired sleep
time.
4. The options are 90-80-70-60-50-40-30-20-10-min. or OFF
5. Now you can enjoy listening to the radio for the pre-set period of sleep
time.
6. After this pre-set time has elapsed, the unit will switch off automatically.
USB CHARGING
Connect the USB cable (not supplied) to your device and the unit's USB port.
The unit will charge your device, such as smartphones or tablets. .
UR122 / English Instruction Manual
