More V57 Gebrauchsanweisung, Instandhaltungsrichtlinien Und Ersatzteile Seite 2

Ref. No. Part No. Description
001 2MV57-A001 Counter Sunk Screw
002 2MV57-A002 Washer
003 2MV57-A003 Deflector
004 2MCN2357-A108 Hex. Soc. Hd. Bolt
005 2MV57-A005 Cap
1
006 2MV57-A006 Gasket
007 2MV57-A007 Ring
93
008 2MV57-A008 Seal
92
009 2MV57-A009 Compression Spring
010 2MV57-A010 O-Ring
3
011 2MV57-A011 O-Ring
012 2MV57-A012 Head Valve Piston
013 2MCN2357-A119 O-Ring 4
015 2MCN2357-A120 Driver Unit
2
016 2MV57-A016 Collar
017 2MV57-A017 Cylinder
018 2MCN2357-A123 O-Ring
019 2MV57-A019 Cylinder Ring
020 2MV57-A020 Cylinder Spacer 85
021 2MV57-A021 O-Ring
022 2MV57-A022 Bumper
023 2MV57-A023 Safety
024 2MV57-A024 Nose Piece
5
025 2MV57-A025 Spring Cover
026 2MV57-A026 O-Ring
027 2MCN2970-A402 O-Ring
028 2MCN2357-A426 Door Shaft Pin
6
029 2MCN2970-A416 Pu Retainer
030 2MCN2970-A413 Door Latch
031 2MCN2970-A414 Latch Spring 7
032 2MCN3165-A211 Spring Pin
033 2MCN2357-A416 Door
8
034 2MCN2357-A421 Pin Nail Stop
035 2MCN2357-A420 Nail Stop
036 2MV57-A036 Spring 9
037 2MCN2357-A436 Feed Finger
038 2MCN2970-A437 Feed Finger Spring
91
039 2MCN2970-A435 Pin Feed Piston
040 2MV57-A040 Feed Piston
10
041 2MCN3390-A409 O-Ring
042 2MV57-A042 O-Ring
043 2MCN2357-A408 Pusher Spring B
11
044 2MCN2357-A411 Rod
045 2MCN2357-A410 Pusher Spring
046 2MV57-A046 Feed Bumper 12
047 2MCN2357-A412 Feed Piston Cap
048 2MCN2970-A411 C-Ring
049 2MV57-A049 Body
050 2MV57-A050 Handle Grip
051 2MV57-A051 C-Ring
052 2MV57-A052 Filter
053 2MV57-A053 Spring
054 2MV57-A054 End Cap
056 2MV70-A101 Trigger Assy
057 2MV70-A102 Sequential Trigger
Kit Guarnizioni / Kit O-Rings
058 2MV57-A058 Roll Pin
059 2MV57-A059 Safety Guide
060 2MV57-A060 O-Ring
061 2MV57-A061 Valve Plunger
062 2MV57-A062 O-Ring
063 2MV57-A063 O-Ring
064 2MV57-A064 Spring
065 2MV57-A065 Plunger
066 2MV57-A066 O-Ring
067 2MV57-A067 O-Ring
068 2MCN2970-A211 Pin
069 2MV57-A069 O-Ring
070 2MV70-K102 Plunger Cap 084
071 2MV57-A084 Trigger Valve Head 085
072 2MV57-A072 Spring Base 086
088
073 2MV57-A073 Spring
074 2MV57-A074 Spacer 089
090
075 2MV57-A075 Magazine Case
078 2MV57-A078 Magazine Shaft Pin 091
079 2MV57-A079 Magazin Post 092
080 2MV57-A080 Washer 093
081 2MCN2970-A442 Bolt Cap 100
K100
082 2MV57-A082 Hex. Soc. Hd. Bolt

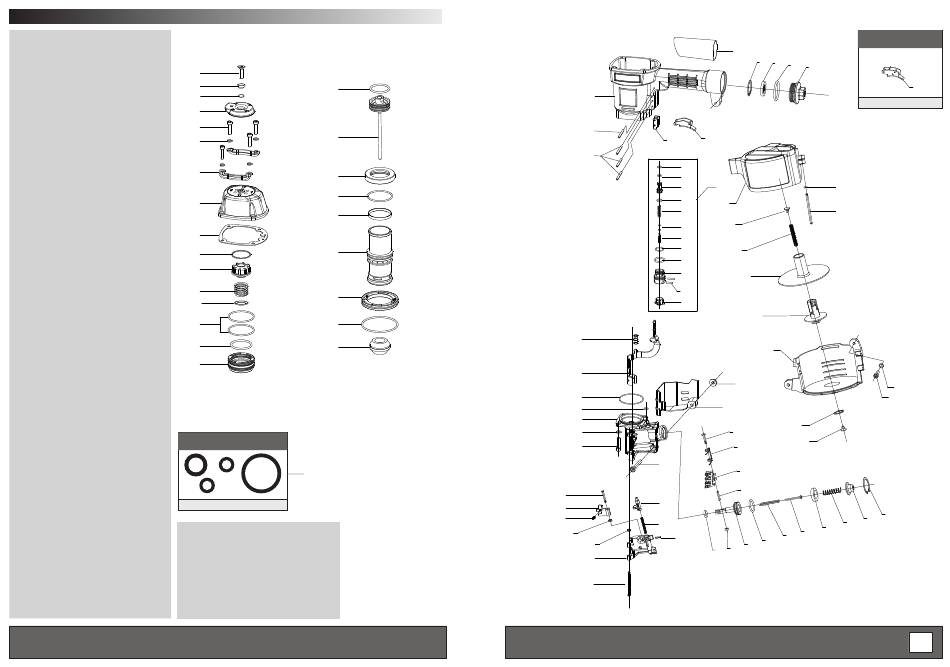

Parti di ricambio - Spare parts - Ersatzteile - Pièces de rechange - Piezas de repuesto
Antallaktika - Partes sobresselentes - Wisselstukken - Reservedele
13
15
16
18
19
17
20
21
22
K100
2 M V 5 7 - K 1 0 0
2MV57-A084 Trigger Valve Head
2MV57-A085 Protection
2MV57-A086 Hex. Soc. Hd. Bolt
2MV57-B088 Pin
2MV57-A089 Washer
2MCN3165-A216 Spring Pin
2MV57-A091 Washer
2MV57-A092 O-Ring
2MV57-A093 Washer
2MV57-A100 Trigger Valve Assy
2MV57-K100 Kit O-Ring
