ENGLISH
DESCRIPTION
The switch Ref. 1039/44 is provided with Power over Ethernet (PoE) feature: it has 8 ports and can work in
Fast Ethernet at 100Mbps or Ethernet at 10Mbps.
Ports from 1 to 4 use PoE standard and automatically detect the presence of PoE compatible devices. The
switch supplies a total of 58W to the 4 PoE ports for powering all the PoE standard devices in the Ipercom
system.
Use CAT5 cable with Urmet RJ45 connectors for connecting the devices to the switch.
PACKAGING
The package includes:
•
the Switch Ref. 1039/44
•
a power supply
•
power cables
•
rubber feet

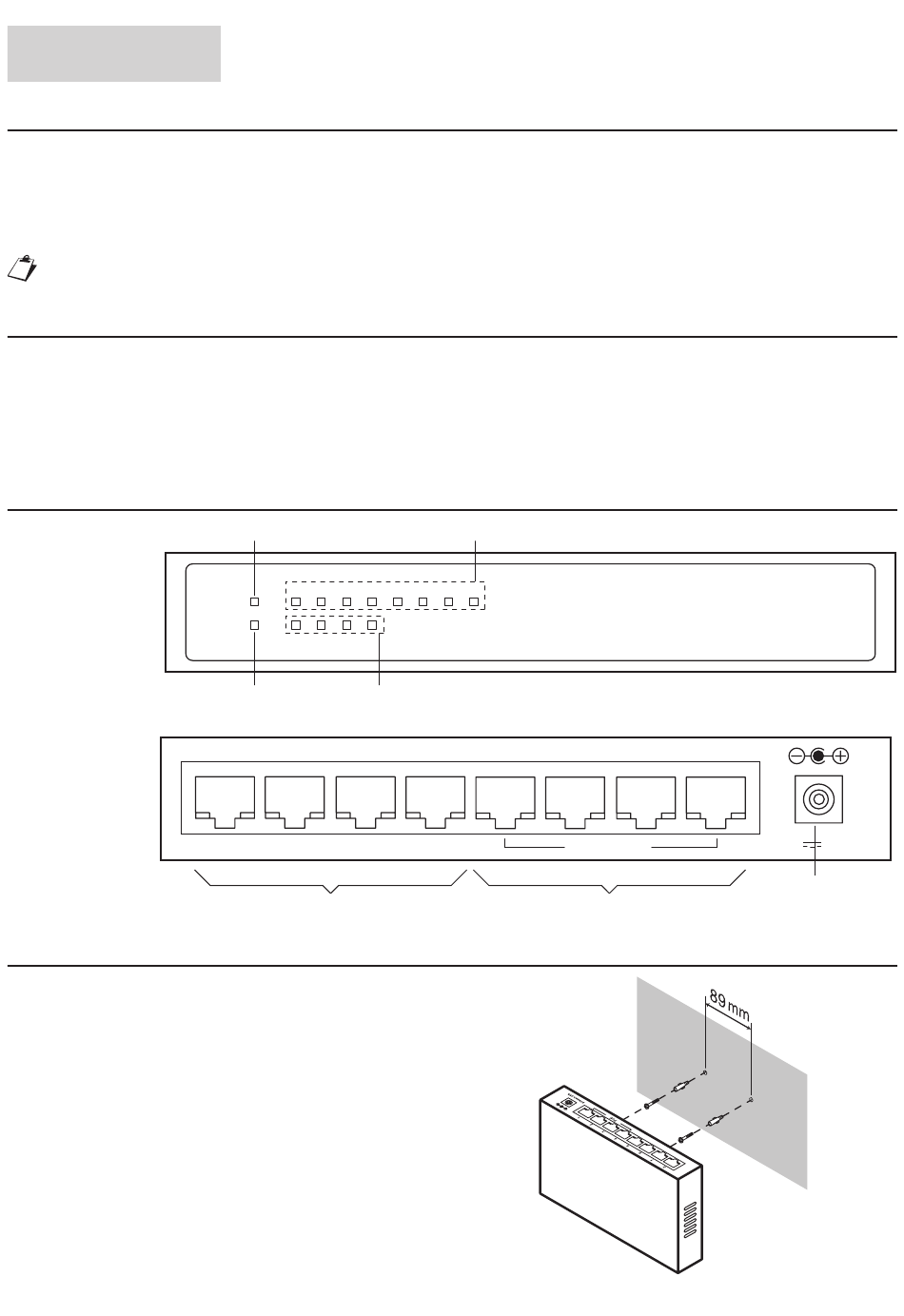

CONNECTORS, INDICATORS AND PORTS
PWR power supply led
FRONT
VIEW
REAR
VIEW
DEVICE INSTALLATION
The switch Ref. 1039/44 can be installed on a table by
inserting the special rubber feet supplied on the base of
the device, or on the wall using screws and plugs not
supplied, see below.
4
1
2
3
4
PWR
MAX
MAX LED
Led PoE Ports
8
7
6
Ports
Led Link / Act 1 ÷ 8
5
6
7
8
Link/Act
PoE Ports
5
4
n.2 dowels
Ø 5 mm
3
2
1
PoE
PoE Ports
2 self-tapping screws
Ø 2,9 x 32 mm
51V
1.25A
Power
input
DS1039-059
