INTRODUCTION
In accord with Regulation (EU) 2017/745, this product is part of the CLASS I MEDICAL DEVICES. You should care-
fully read this manual before using this medical device.
DESCRIPTION
This article is a trolley made of painted steel with 3 or 4 fixed shelves. It is a service trolley for hospital use. The Excel
is a practical trolley suitable to support and transport small electromedical instruments.
COMPONENTS
- N.3 Shelves cod.27440
- N.4 Shelves cod.27441
- N.2 Legs
Assembly material:

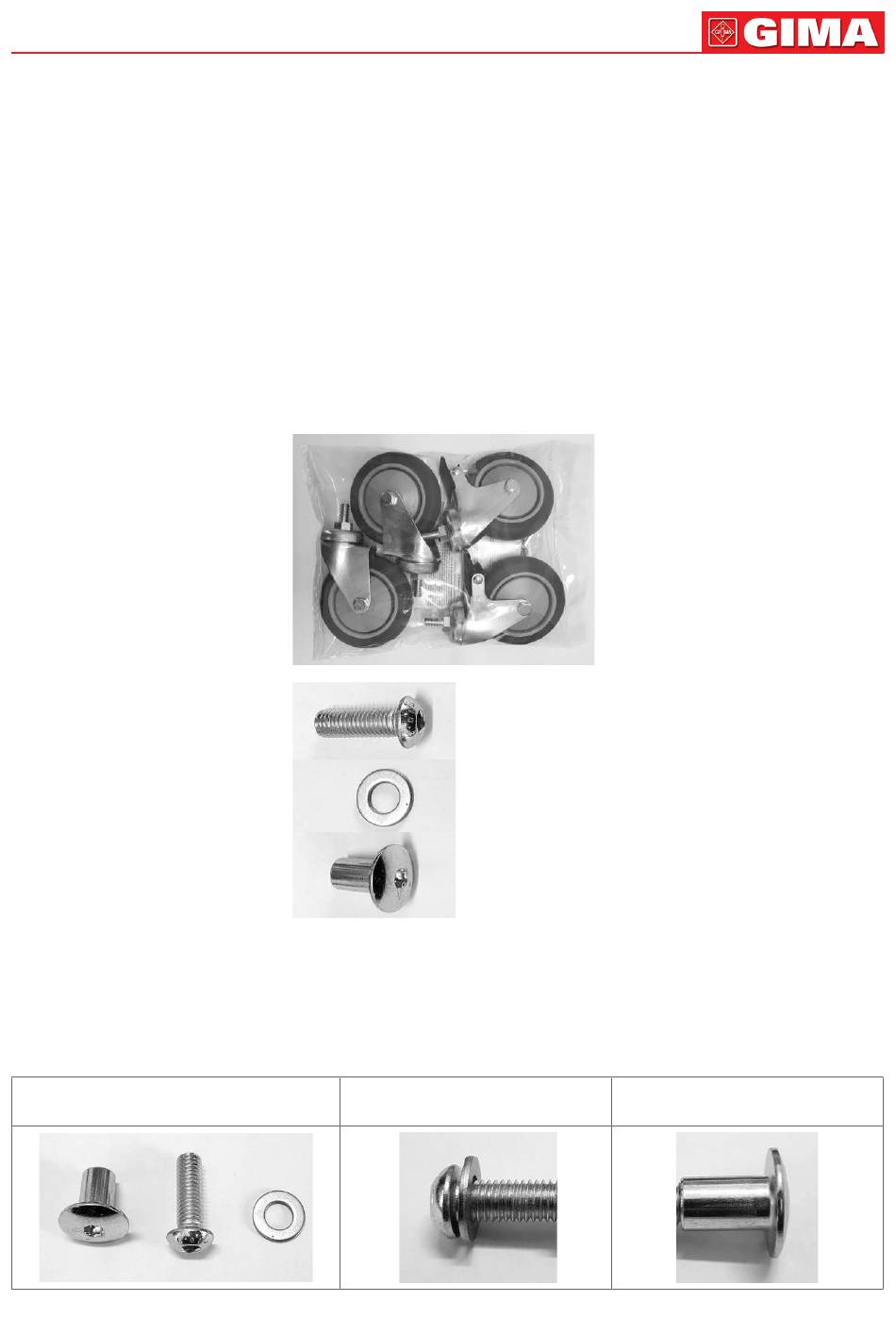

- N. 4 wheels
- 12 screws TTBE 8X25 cod.27440
- 16 screws TTBE 8x25 cod.27441
- 12 washers 8X16 cod.27440
- 16 washers 8X16 cod.27441
- 12 screws TT 8X16 cod.27440
- 16 screws TT 8X16 FE cod.27441
- N.2 ALLEN KEYS
ASSEMBLY INSTRUCTIONS
Begin the assembly phase by setting up a stable horizontal work plan.
Screw the wheels to the base of both legs.
Start to fix the shelves to the structure and take the connecting screws.
Connecting screws Insert screw and washer INSIDE
the shelf.
ENGLISH
Insert the TT screw from the
OUTSIDE of the structure.
