Power Windows
Leve-glace Electrique
Elektrische Fensterheber
Elevalunas Electricos
Dê Poder a Janelas
Alzacristalli Elettrici
Skoda Fabia (1999>3/2007)
Versioni / Models: Classic [Solo per
elettrificazione degli alzacristalli manuali
/ Only for replacement of manual
window regulators
Skoda Combi (1999>)
Versioni / Models: Classic [Solo per
elettrificazione degli alzacristalli manuali
/ Only for replacement of manual
window regulators
Skoda Station Wagon (1999>)
Versioni / Models: Classic [Solo per
elettrificazione degli alzacristalli manuali
/ Only for replacement of manual
window regulators
advised position for the switches installation
position conseillee pour l'installation des boutons
emfohlene lage für den schalterneinbau
posicion aconsejada para la instalacion de los pulsadores
posição para a inslalação dos interruptores
posizione consigliata per l'istallazione dei pulsanti
SK28 2011
Werbung
Verwandte Anleitungen für Electric Life SK28 2011
Inhaltszusammenfassung für Electric Life SK28 2011
- Seite 1 Leve-glace Electrique Elektrische Fensterheber Elevalunas Electricos Dê Poder a Janelas Alzacristalli Elettrici SK28 2011 advised position for the switches installation position conseillee pour l’installation des boutons emfohlene lage für den schalterneinbau Skoda Fabia (1999>3/2007) posicion aconsejada para la instalacion de los pulsadores Versioni / Models: Classic [Solo per posição para a inslalação dos interruptores...
- Seite 2 left door - portière gauche - linke tür - puerta lado izquierdo - porta esquerda - porta lato sinistro THIS INSTALLATION INSTRUCTION IS FOR BOTH LEFT AND RIGHT SIDE. CETTE INSTRUCTION DE MONTAGE EST POUR LES DEUX COTES DROIT ET GAUCHE. DIESE MONTAGE-ANLEITUNG IST FÜR DIE BEIDE LINKE UND RECHTE SEITE.
- Seite 3 SK28...
- Seite 5 18- 11- 2011 ENGLISH ENGL ISH THIS INSTALLATION INSTRUCTION IS FOR BOTH LEFT AND RIGHT SIDE. A) Remove door trim. Release the glass and remove metal panel from the door. Drill original fixing rivets and remove window regulator. Remove the window rubber packing to insert the electric window regulator rails into the door. Drill into positions 1, 2, 3 and 4 (ø 6,5 mm.).

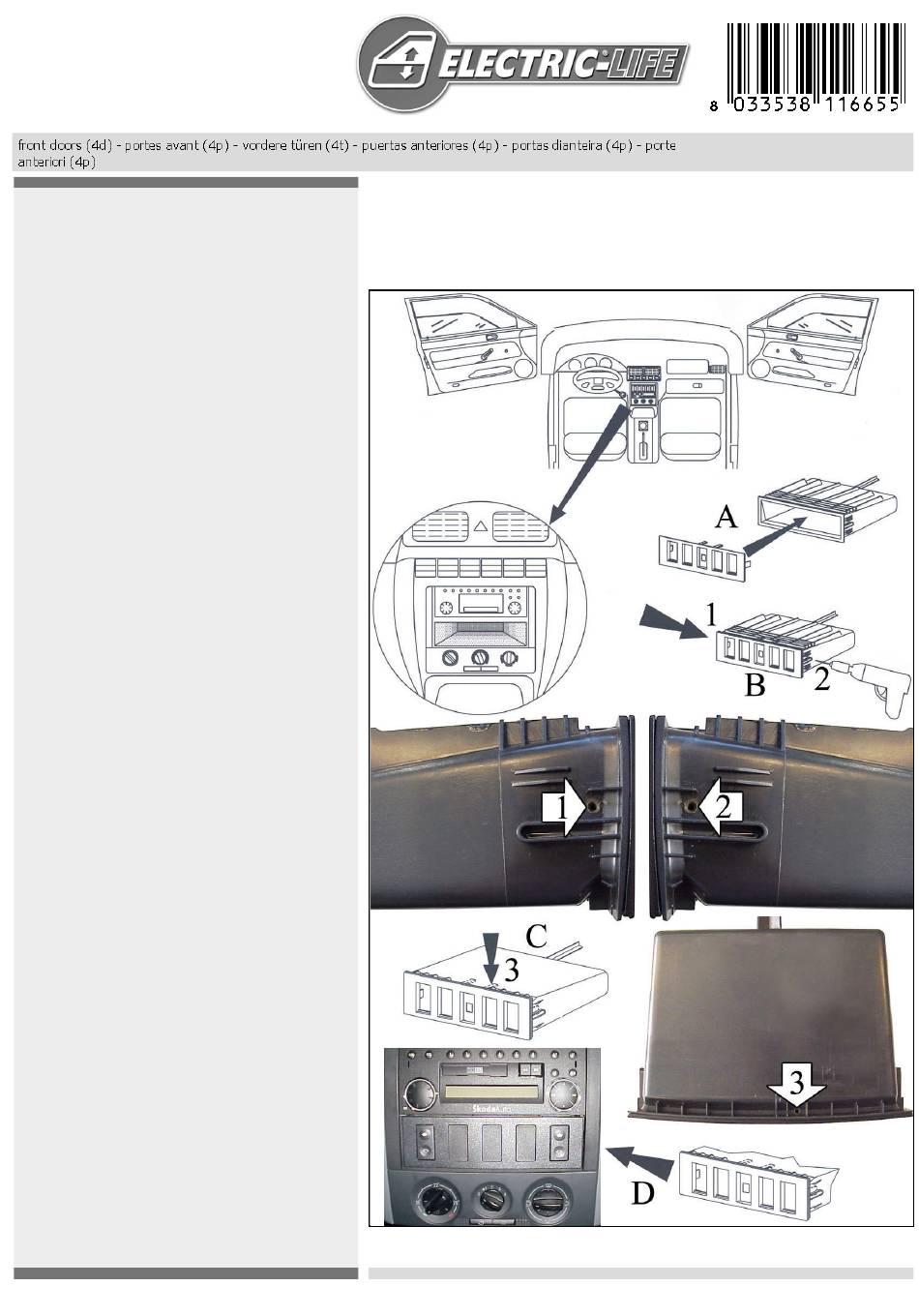

- Seite 6 SK28 18- 11- 2011 ENGLISH ENGL ISH THIS INSTALLATION INSTRUCTION IS FOR BOTH LEFT AND RIGHT SIDE. SK28 ADVISED POSITION FOR THE SWITCHES INSTALLATION. Remove the glove box as shown in the drawing (point A). Insert the switch mounting; fit it and drill into positions 1 and 2 (Ø 2) through the locating wings (point B). Fix the mounting with the screws supplied into positions 1 and 2.
