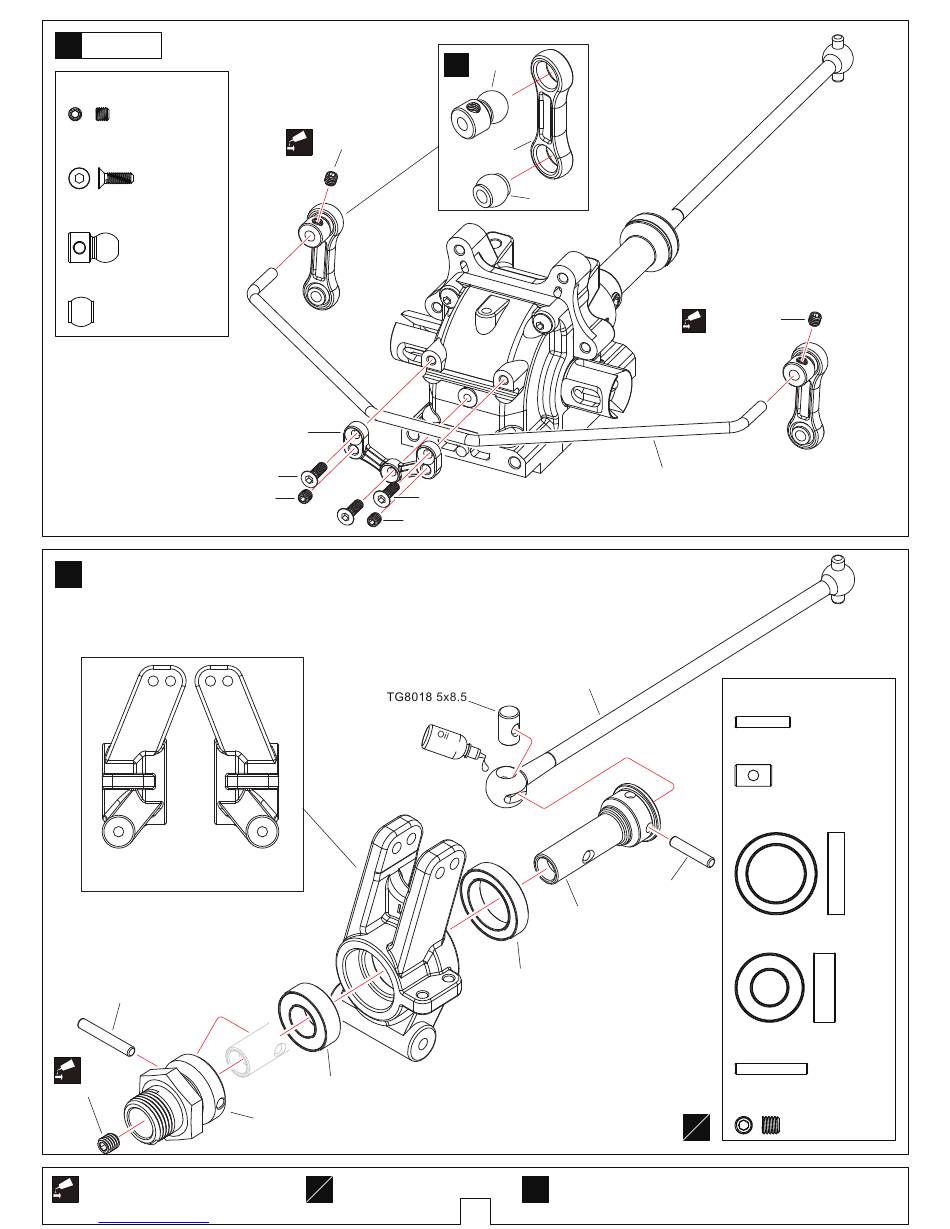

Team C T8TE Competition Offroad Truggy Montageanleitung Seite 16

21 Rear Swaybar
Bag
Stabi hinten
T08601/T08756 M3x3 Screw
Schraube
........................4
T08601 M2.5x8 Screw
Schraube
..................3
T08756 6.8 Ball stud-Swaybar
Kugelkopf Stabi
.....................2
T08755 6.8 Ball stud-Swaybar
Kugelkopf Stabi
...........................2
22
Rear Hub Carrier
Achsschenkel hinten
T08605
Rear Hub Carriers-L
Achsschenkelhalter hinten links/rechts
TG8015 2.5x16.8
Screw
Cement
84001 M4x4
Apply threadlock
Schraubensicherungslack verwenden
Screw
Cement
Downloaded from www.Manualslib.com
E
-
T08756 M3x3
Screw
Cement
T08601
Swaybar Mount
Stabi Halterung
T08601 M2.5x8
T08601 M3x3
E
-
Bag
T08605
Rear Hub Carriers-R
T08664 8x16x5
TG8015
Wheel Hex Hub
Radmitnehmer
Assemble both Left and Right
L
R
Beide Seiten (links/rechts) auf
die gleiche Weise montieren
manuals search engine
x2
T08756
T08760
T08755
T08601 M2.5x8
T08601 M3x3
TG8018
132mm Drive Shaft
132mm Antriebswelle
T08772
CVD Connecting Cup
CVD Aufnahmebuchse
T08665 13x19x4
Assemble as many times as specified
x2
So oft montieren wie angegeben
11
T08756 M3x3
Screw
Cement
T08647
Rear Swaybar
Stabi hinten
TG8018 2.5x12.8 Pin
TG8018 5x8.5 CVD Shaft
CVD Schaft
........................2
T08665 13x19x4 Ball Bearing
Kugellager
TG8018 2.5x12.8
T08664 8x16x5 Ball Bearing
Kugellager
TG8015 2.5x16.8 Pin
84001 M4x4 Screw
Schraube
L
........................2
R
..................2
.........2
.........2
..................2
