First

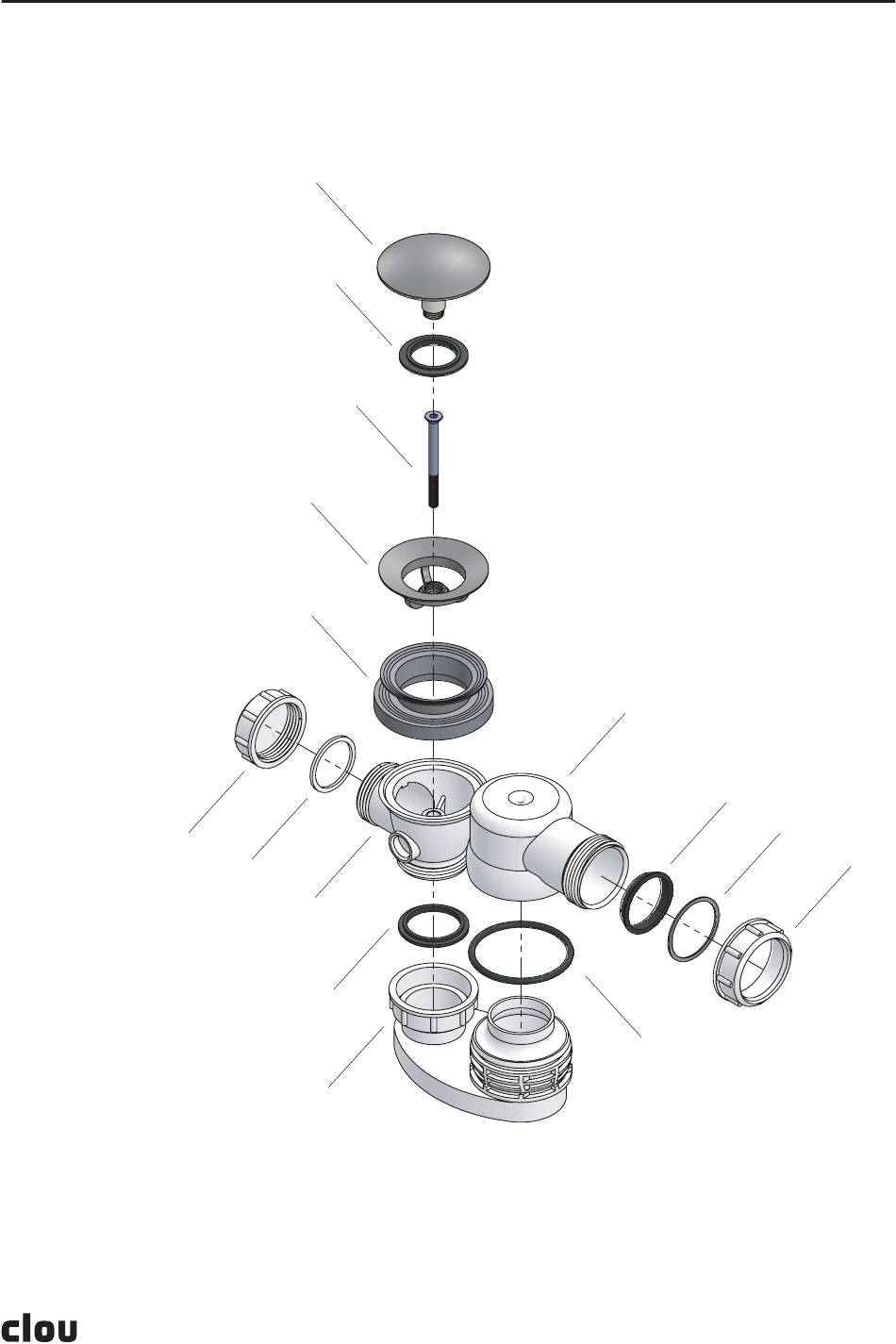

bathtub drain
CL/05.13010
Part
1
trap part 3
2
O-ring ball joint
3
trap part 2
4
O-ring sewer connection
5
O-ring sewer cap
sewer connection cap
6
7
O-ring trap
8
trap part 1
9
O-ring overflow cap
10
overflow cap closed
11
main sealer
12
bottom cap
13
M6x70 bolt
14
O-ring stop/go drain
15
stop/go drain with cap
10
Dimensions in mm, for reference only / 08.06.2020 / rev_02
15
14
13
12
11
9
8
7
1
3
4
5
2
www.clou.nl
6
