Operating Instructions
USB 3.1 CFexpress
®
Item No. 2163522
Intended Use
The product is intended to be used as a USB type-C
supplied via USB. It supports USB 3.1 Gen2 and will work without the need to install any
additional software. It is compatible with Windows
USB 3.1 Gen2 permits connection speeds of up to 10 Gbps. Actual performance
may vary based on the CFexpress
connection, cable type, and various other factors.
It is intended for indoor use only. Do not use it outdoors. Contact with moisture must be avoided
under all circumstances.
For safety and approval purposes, you must not rebuild and/or modify this product. If you use
the product for purposes other than those described above, the product may be damaged. In
addition, improper use can result in other hazards. Read the instructions carefully and store
them in a safe place. Make this product available to third parties only together with its operating
instructions.
This product complies with the statutory national and European requirements. All company
names and product names are trademarks of their respective owners. All rights reserved.
Delivery Content
• CFexpress
card reader
®
• Operating instructions
Up-to-Date Operating Instructions
Download the latest operating instructions at www.conrad.com/downloads or
scan the QR code shown. Follow the instructions on the website.
Explanation of Symbols
The symbol with the exclamation mark in the triangle is used to indicate important
information in these operating instructions. Always read this information carefully.
The arrow symbol indicates special information and advice on operation.
Safety Instructions
Read the operating instructions carefully and especially observe the safety
information. If you do not follow the safety instructions and information
on proper handling in this manual, we assume no liability for any resulting
personal injury or damage to property. Such cases will invalidate the warranty/
guarantee.
a) General Information
• The device is not a toy. Keep it out of the reach of children and pets.
• Do not leave packaging material lying around carelessly. This may become
dangerous playing material for children.
• Protect the appliance from extreme temperatures, direct sunlight, strong jolts, high
humidity, moisture, flammable gases, steam and solvents.
• Do not place the product under any mechanical stress.
• If it is no longer possible to operate the product safely, take it out of operation and
protect it from any accidental use. Safe operation can no longer be guaranteed
if the product:
- is visibly damaged,
- is no longer working properly,
- has been stored for extended periods in poor ambient conditions or
- has been subjected to any serious transport-related stresses.
• Please handle the product carefully. Jolts, impacts or a fall even from a low height
can damage the product.
• Consult an expert when in doubt about the operation, safety or connection of the
appliance.
• Maintenance, modifications and repairs must only be completed by a technician
or an authorised repair centre.
• If you have questions which remain unanswered by these operating instructions,
contact our technical support service or other technical personnel.
b) Connected devices
• Also observe the safety and operating instructions of any other devices which are
connected to the product.
SSD Reader
CFexpress
card reader. Power is
TM
®
, Mac, and Linux operating systems.
®
card, host computer port, file type, USB
®

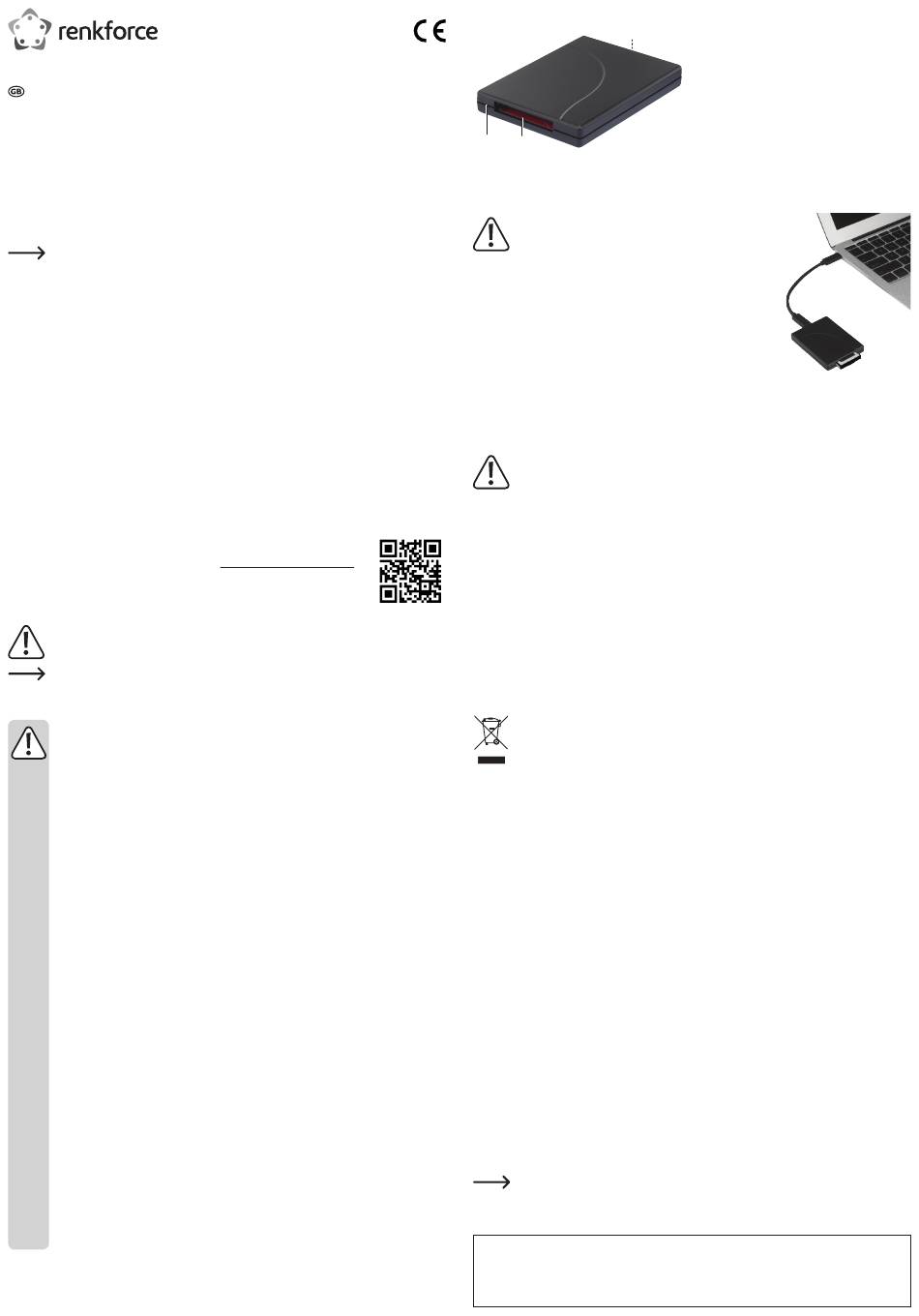

Operating Elements
3
1
2
Operation
a) Connecting to Computer
A USB type-A 5V 500mA port will not supply enough
power to operate the CFexpress
Do not use excessive force when inserting the
CFexpress
card.
®
port (3) to an available USB
• Connect the USB Type-C
TM
Type-C
port on your computer (cable not included).
TM
• Insert the CFexpress
card into the slot (2) until you feel a
®
"click".
b) LED Status Indication
• When the drive is in idle state the LED status indicator (1) is lit solid.
• When data transfer is in progress the LED status indicator (1) flashes.
c) Disconnect from Computer
To avoid file corruption or loss of data, never disconnect the drive or reader when
data transfer is in progress.
• Eject the CFexpress
card using your computer operating system before removing it from
®
the card slot (2). Refer to your computer operating system help guide for information about
how to do this.
• Push the CFexpress
card in until you feel a "click", then remove the card from the slot (2).
®
Care and Cleaning
• The card reader does not require any special care or maintenance.
• Do not use any aggressive cleaning agents, rubbing alcohol or other chemical solutions as
they can cause damage to the housing and malfunctioning.
• Clean the product with a dry, fibre-free cloth.
Disposal
Electronic devices are recyclable waste and must not be disposed of in the
household waste. At the end of its service life, dispose of the product in accordance
with applicable regulatory guidelines. You thus fulfill your statutory obligations and
contribute to the protection of the environment.
Technical Data
Input voltage/current ..................... 5 V/DC 3 A via USB 3.1 Type-C
Media ............................................ CFexpress
Interface ........................................ Input: CFexpress
Output: USB 3.1 Gen 2 Type-C
Cable ............................................ USB Type-C
Compliance ................................... PCI Express Revision 3.1a, NVM Express 1.3,
USB 3.1 Gen2 Specification, USB Attached SCSI Protocol
(UASP) Specification (Revision 4)
Support ......................................... TRIM, USB 3.1 Gen2 power saving mode, SuperSpeed+
(10 Gbps), SuperSpeed (5 Gbps), FullSpeed (12 Mbps)
transaction
Connector ..................................... Push-push
Supported OS ............................... Mac 10.8 (or above)
Windows
Linux kernel 2.6.31 (or above)
Drivers .......................................... In-box support (no additional drivers needed)
Operating conditions ..................... 0 to +70 ºC, 20 – 80 % RH (non-condensing)
Storage conditions ........................ -40 to +85 ºC, 15 – 90 % RH (non-condensing)
Dimensions (L x W x H) ................ 130 x 34.5 x 10.5 mm
Weight .......................................... 55 g
Visit the Conrad website and search item no. 2163522 for information about any
optional accessories.
This is a publication by Conrad Electronic SE, Klaus-Conrad-Str. 1, D-92240 Hirschau (www.conrad.com). All rights
including translation reserved. Reproduction by any method, e.g. photocopy, microfilming, or the capture in electronic data
processing systems require the prior written approval by the editor. Reprinting, also in part, is prohibited. This publication
represent the technical status at the time of printing.
Copyright 2019 by Conrad Electronic SE.
1 LED status indicator
2 CFexpress
card slot
®
3 USB type-C
port
TM
reader and card.
®
TM
type B card
®
type B card
®
TM
male to male (not included)
TM
8 (or above) 32 and 64-bit variations
®
*2163522_v1_1019_02_dh_m_en
