Operating instructions
RF-DKS-400 USB-C™ 10-in-1 Laptop docking sta-
tion 87 W
Item no. 2266923
Intended use
This product is designed to be connected to a computer or smartphone with a USB-C™ port
and provides a range of additional interfaces.
a) External graphics card: You can connect an HDMI device and one VGA monitor. This will
give your computer 2 additional monitor connections.
b) External network adapter: Designed to establish a network connection, e.g. if your com-
puter does not have a network socket.
c) External USB hub: An integrated USB3.0 hub with 3 ports provides additional USB ports,
e.g. for a USB mouse, a USB keyboard or an additional USB drive.
d) External sound card: The stereo jack socket (3.5 mm, for headphones and/or micropho-
ne) can be used to connect analogue audio devices, e.g. a headset.
e) There is also a USB-C™ charging port (PD3.0) for powering the docking station. The
charging current for powering USB devices is provided via the USB3.0 ports and the USB
C™ port.
This product is intended for indoor use only. Do not use it outdoors. Contact with moisture (e.g.
in a bathroom) must be avoided under all circumstances.
For safety and approval purposes, do not rebuild and/or modify this product. Using the product
for purposes other than those described above may damage the product. In addition, improper
use can cause hazards such as a short circuit or fire. Read the operating instructions carefully
and store them in a safe place. Only make this product available to third parties together with
its operating instructions.
This product complies with statutory, national and European regulations. All company and pro-
duct names contained herein are trademarks of their respective owners. All rights reserved.
HDMI is a registered trademark of HDMI Licensing L.L.C.
Delivery contents
• Laptop docking station • Operating instructions
Up-to-date operating instructions
Download the latest operating instructions at www.conrad.com/downloads or
scan the QR code shown. Follow the instructions on the website.
Description of symbols
The symbol with an exclamation mark in a triangle is used to highlight important
information in these operating instructions. Always read this information carefully.
The arrow symbol indicates special information and advice on how to use the pro-
duct.
This symbol reminds you to read the operating instructions included with the pro-
duct.
This product has been CE tested and therefore complies with the necessary national
and European regulations.
Safety instructions
Read the operating instructions carefully and especially observe the safety information.
If you do not follow the safety information and information on proper handling in these
operating instructions, we will assume no liability for any resulting personal injury or
damage to property. Such cases will invalidate the warranty/guarantee.
a) General information
• The device is not a toy. Keep it out of the reach of children and pets.
• Do not leave packaging material lying around carelessly. It may become a
dangerous plaything for children.
• Protect the product from extreme temperatures, direct sunlight, strong jolts, high
humidity, moisture, flammable gases, vapours and solvents.
• Do not place the product under any mechanical stress.
• If it is no longer possible to operate the product safely, stop using it and prevent
unauthorised use. Safe operation can no longer be guaranteed if the product:
- is visibly damaged,
- is no longer working properly,
- has been stored for extended periods in poor ambient conditions or
- has been subjected to any serious transport-related stress.
• Handle the product carefully. Jolts, impacts or a fall even from a low height may
damage the product.
• Consult a technician if you are not sure how to use or connect the product, or if
you have concerns about safety.
• Maintenance, modifications and repairs may only be carried out by a technician or
a specialist repair centre.
• If you have questions which remain unanswered by these operating instructions,
contact our technical support service or other technical personnel.
b) Persons and product
• Never use the product immediately after it has been brought from a cold room into
a warm one. This may cause condensation to form, which can destroy the product.
Allow the product to reach room temperature before connecting it and putting it to
use. This may take several hours.
• Never pour liquids over electrical devices or place objects filled with liquid next to
the device. If liquid or an object does enter the interior of the device, disconnect
the corresponding power supply. Discontinue use and take the product to a
specialist repair centre.
c) Connected devices
• Always observe the safety information and operating instructions of any other
devices which are connected to the product.

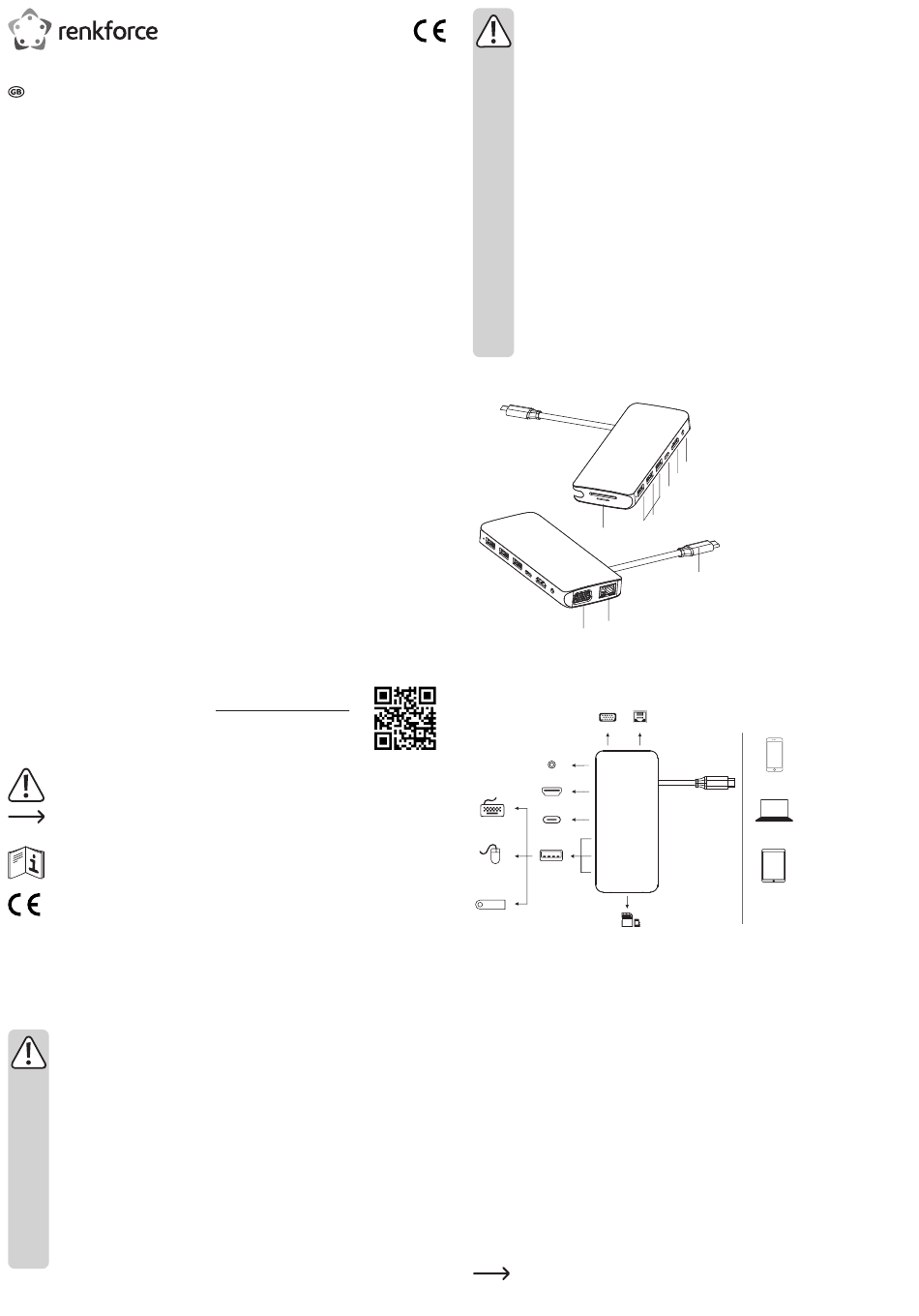

Operating elements
5
7
8

Operation

a) Connection
VGA Ethernet
Audio
HDMI
Keyboard
PD3.0
USB3.0x3
Mouse
USB stick
• 3.5 mm jack socket (1): Use this socket to connect analogue audio devices such as
a headset, microphone or speaker.
• HDMI connection (2): Use this socket to connect a display device with an HDMI plug (for
video signals with 4K2K 30 Hz/3840 x 2160 pixels).
• Connect a USB-C™ PD charger to the charging port (PD3.0) (3) to supply the docking
station with power (max. 100 W in the input). When charging the battery of a device
connected to the docking station, the maximum charging power is 87 W.
• USB3.0 x 3 (4) connections: Connect peripheral devices such as keyboards, mice and USB
storage devices.
• SD & microSD card reader slot (5): Insert suitable SD or microSD cards. Insert an SD card
(max. 2 TB capacity) into the SD card slot. Memory cards are not included with the product.
• USB-C™ connection plug (6): Use this USB-C™ connection to connect the host,
e.g. a laptop computer, smartphone or tablet.
• Ethernet connection (7): Use this connection to connect a network host and establish
a network connection for the docking station. For details, see section "b) Network
connection".
• VGA connection (8): You can use this connection to connect a VGA monitor as a display
device with a resolution of up to 1080 p (60 Hz).
If you output the video signal simultaneously via the HDMI and VGA output, the
1 3.5 mm jack socket (audio)
2 HDMI port
3 USB-C™ charging port (PD3.0)
4 USB3.0 ports
1
5 SD & microSD card reader slot
2
3
6 USB-C™ connection plug (host)
7 Ethernet connection
4
8 VGA connection
6
Mobile
Macbook
Tablet PC
SD & microSD
card reader
