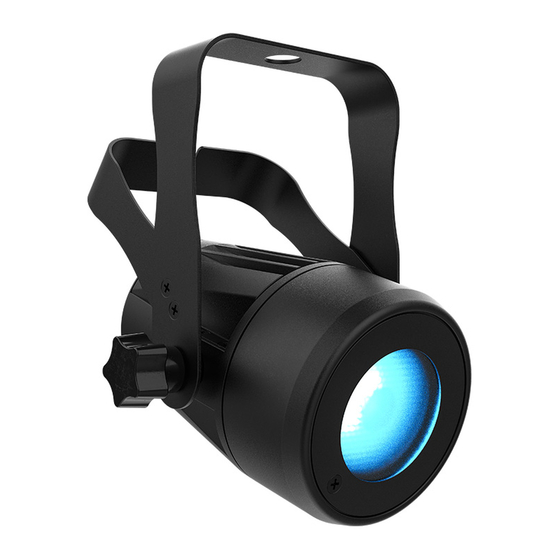

QUICK REFERENCE GUIDE About This Guide The COLORdash Accent 3 Quick Reference Guide (QRG) has basic product information such as connection, mounting, menu options, and DMX values. Download the User Manual from www.chauvetprofessional.com for more details. Disclaimer The information and specifications contained in this QRG are subject to change without notice. LIMITED WARRANTY FOR WARRANTY REGISTRATION AND COMPLETE TERMS AND CONDITIONS PLEASE VISIT OUR WEBSITE.
QUICK REFERENCE GUIDE AC Power This product has an auto-ranging power supply that can work with an input voltage range of 100–240 VAC, 50/60 Hz. AC Plug Connection Wire (U.S.) Wire (Europe) Screw Color AC Live Black Brown Yellow/Brass AC Neutral White Blue Silver...
Seite 4
QUICK REFERENCE GUIDE Control Panel Description Button Function <MENU> Exits from the current menu or function <ENTER> Enables the currently displayed menu or sets the currently selected value into the selected function <UP> Navigates upwards through the menu list or increases the numeric value when in a function <DOWN>...
Seite 5
QUICK REFERENCE GUIDE Main Level Programming Levels Description AUTO. 1 AUTO. 2 AUTO. 3 AUTO. 4 AUTO. 5 Preset automatic programs AUTO. 6 AUTO. 7 AUTO. 8 AUTO. 9 AUTO. 10 SPEED 0–100 User Program 1 User Program 2 User Program 3 User Program 4 User Program 5 Auto...
Seite 6
QUICK REFERENCE GUIDE Main Level Programming Levels Description Continue to last defined setting during Hold Last DMX signal loss or DMX error DMX Error/Lost Blackout during DMX signal loss or DMX Blackout error 3200K 3400K 3500K 4000K 4200K 4500K 4900K Green Allows user to customize color Calibration...
QUICK REFERENCE GUIDE DMX Values HSIC (7 Channels) Channel Function Value Percent/Setting Intensity 000 255 0–100% 000 255 0–100% Hue fine 000 255 0–100% Saturation 000 255 0–100% 000 010 No function 011 028 3200K 029 ...
Seite 8
QUICK REFERENCE GUIDE Advanced (11 Channels) Channel Function Value Percent/Setting Dimmer 000 255 0–100% Dimmer fine 000 255 0–100% 000 255 0–100% Green 000 255 0–100% Blue 000 255 0–100% Amber 000 255 0–100% 000 ...
Seite 9
QUICK REFERENCE GUIDE Channel Function Value Percent/Setting 000 040 No function 041 050 Auto 1 051 060 Auto 2 061 070 Auto 3 071 080 Auto 4 081 090 Auto 5 091 100 Auto 6 101 ...
GUÍA DE REFERENCIA RÁPIDA Acerca de Esta Guía La Guía de Referencia Rápida (GRR) del COLORdash Accent 3 contiene información básica sobre el producto, como montaje, opciones de menú y valores DMX. Descargue el Manual de Usuario de www.chauvetprofessional.com para información más detallada.
GUÍA DE REFERENCIA RÁPIDA Corriente Alterna Este producto tiene una fuente de alimentación con detección automática que.uede funcionar con un rango de tensión de entrada de100 a 240 VCA, 50/60 Hz. Enchufe CA Conexión Cable (EE.UU.) Cable (Europa) Color del tornillo CA Cargado Negro Marrón...
Seite 12
GUÍA DE REFERENCIA RÁPIDA Descripción del Panel de Control Botón Función <MENU> Sale del menú o función actual Habilita el menú actualmente en pantalla o configura el valor seleccionado actualmente dentro de la <ENTER> función seleccionada <UP> Navega hacia arriba por la lista de menú o aumenta el valor numérico cuando está en una función <DOWN>...
Seite 13
GUÍA DE REFERENCIA RÁPIDA Nivel Principal Niveles de Programación Descripción AUTO. 1 AUTO. 2 AUTO. 3 AUTO. 4 AUTO. 5 Programas automáticos preestablecidos AUTO. 6 AUTO. 7 AUTO. 8 AUTO. 9 AUTO. 10 SPEED 0–100 User Program 1 User Program 2 User Program 3 User Program 4 User Program 5...
Seite 14
GUÍA DE REFERENCIA RÁPIDA Nivel Principal Niveles de Programación Descripción Continúa con la última configuración tras Hold Last la pérdida de señal DMX o error DMX DMX Error/Lost Apaga el dispositivo tras la pérdida de Blackout señal DMX o error DMX 3200K 3400K 3500K...
GUÍA DE REFERENCIA RÁPIDA Valores DMX HSIC (7 canales) Canal Función Valor Porcentaje/Configuración Intensidad 000 255 0–100% 000 255 0–100% Hue fino 000 255 0–100% Saturación 000 255 0–100% 000 010 Sin función 011 028 3200K 029 ...
Seite 16
GUÍA DE REFERENCIA RÁPIDA Advanced (11 canales) Canal Función Valor Porcentaje/Configuración Atenuador 000 255 0–100% Atenuador fino 000 255 0–100% Rojo 000 255 0–100% Verde 000 255 0–100% Azul 000 255 0–100% Ámbar 000 255 0–100% 000 ...
Seite 17
GUÍA DE REFERENCIA RÁPIDA Canal Función Valor Porcentaje/Configuración 000 040 Sin función 041 050 Auto 1 051 060 Auto 2 061 070 Auto 3 071 080 Auto 4 081 090 Auto 5 091 100 Auto 6 101 ...
MANUEL DE RÉFÉRENCE À Propos de ce Manuel Le Manuel de Référence du COLORdash Accent 3 (MdR) reprend des informations de base sur cet appareil notamment en matière de connexions, montage, options de menu et valeurs DMX. Télécharger le Manuel d'Utilisation sur www.chauvetprofessional.com pour de plus amples informations.
MANUEL DE RÉFÉRENCE Alimentation CA Cet appareil est doté d'une alimentation universelle prenant en charge toute tension d'entrée comprise entre 100 et 240 VCA, 50/60 Hz. Prise CA Connexion Câble (États-Unis) Câble (Europe) Couleur de la vis Conducteur CA Noir Marron Jaune/Cuivré...
Seite 20
MANUEL DE RÉFÉRENCE Description du Tableau de Commandes Bouton Fonction <MENU> Permet la sortie du menu ou de la fonction en cours <ENTER> Permet l’affichage du menu en cours ou permet de configurer la valeur en cours dans la fonction sélectionnée Permet de parcourir les listes ou les menus vers le haut, dans une fonction permet d'augmenter les <UP>...
Seite 21
MANUEL DE RÉFÉRENCE Niveau Niveaux de Programmation Description Principal AUTO. 1 AUTO. 2 AUTO. 3 AUTO. 4 AUTO. 5 Programmes automatiques prédéfinis AUTO. 6 AUTO. 7 AUTO. 8 AUTO. 9 AUTO. 10 SPEED 0–100 User Program 1 User Program 2 User Program 3 User Program 4 User Program 5...
Seite 22
MANUEL DE RÉFÉRENCE Niveau Niveaux de Programmation Description Principal Revernir au dernier réglage défomo lors Hold Last d’une perte de signal DMX ou d’une erreur DMX DMX Error/Lost Coupure de courant en cas de perte de Blackout signal DMX ou d’erreur DMX 3200K 3400K 3500K...
MANUEL DE RÉFÉRENCE Valeurs DMX HSIC (7 canaux) Canal Fonction Valeur Pourcentage/Configuration Intensité 000 255 0–100% Teinte 000 255 0–100% Teinte fin 000 255 0–100% Saturation 000 255 0–100% 000 010 Pas de fonction 011 028 3200K 029 ...
Seite 24
MANUEL DE RÉFÉRENCE Advanced (11 canaux) Canal Fonction Valeur Pourcentage/Configuration Gradateur 000 255 0–100% Gradateur fin 000 255 0–100% Rouge 000 255 0–100% Vert 000 255 0–100% Bleu 000 255 0–100% Ambre 000 255 0–100% 000 ...
Seite 25
MANUEL DE RÉFÉRENCE Canal Fonction Valeur Pourcentage/Configuration 000 040 Pas de fonction 041 050 Auto 1 051 060 Auto 2 061 070 Auto 3 071 080 Auto 4 081 090 Auto 5 091 100 Auto 6 101 ...
SCHNELLANLEITUNG Über diese Schnellanleitung In der Schnellanleitung des COLORdash Accent 3 finden Sie die wesentlichen Produktinformationen, wie etwa über die Montage, Menüoptionen und DMX-Werte des Geräts. Laden Sie für weiterführende Informationen unter www.chauvetprofessional.com das Benutzerhandbuch herunter. Haftungsausschluss Die in dieser Anleitung aufgeführten Informationen und Spezifikationen können ohne vorherige Ankündigung geändert werden. EINGESCHRÄNKTE GARANTIE ZUR REGISTRIERUNG FÜR GARANTIEANSPRÜCHE UND ZUR EINSICHT IN DIE VOLLSTÄNDIGEN GESCHÄFTSBEDINGUNGEN BESUCHEN SIE BITTE UNSERE WEBSITE.
SCHNELLANLEITUNG Wechselstrom Dieses Gerät verfügt über ein Vorschaltgerät, das automatisch die anliegende Spannung erkennt, sobald der Netzstecker in die Schukosteckdose gesteckt wird, und kann mit einer Eingangsspannung von 100~240 V AC, 50/60 Hz arbeiten. Wechselstromstecker Anschluss Draht (USA) Draht (Europa) Schraubenfarbe Stromführender AC-Leiter Schwarz...
Seite 28
SCHNELLANLEITUNG Beschreibung des Bedienfeldes Taste Funktion <MENU> Damit verlassen Sie das aktuelle Menü oder die Funktion. <ENTER> Damit wird das aktuell angezeigte Menü aktiviert oder der aktuell ausgewählte Wert einer Funktion eingestellt. Damit navigieren Sie sich durch die Menüpunkte nach oben oder erhöhen den numerischen Wert der <UP>...
Seite 29
SCHNELLANLEITUNG Hauptebene Programmierebenen Beschreibung AUTO. 1 AUTO. 2 AUTO. 3 AUTO. 4 AUTO. 5 Voreingestellte automatische Programme AUTO. 6 AUTO. 7 AUTO. 8 AUTO. 9 AUTO. 10 SPEED 0–100 User Program 1 User Program 2 User Program 3 User Program 4 User Program 5 Auto Benutzerdefinierte Autoprogramme...
Seite 30
SCHNELLANLEITUNG Hauptebene Programmierebenen Beschreibung Bei DMX-Signalverlust oder DMX-Fehler Hold Last auf die zuletzt definierte Einstellung zurücksetzen DMX Error/Lost Blackout während DMX-Signalverlust Blackout oder DMX-Fehler 3200K 3400K 3500K 4000K 4200K 4500K 4900K Green Ermöglicht dem Benutzer das Anpassen Calibration 0-255 der Farbtemperatur 5600K Blue 6000K...
Seite 33
SCHNELLANLEITUNG Kanal Funktion Wert Prozent/Einstellung 000 040 Keine Funktion 041 050 Auto 1 051 060 Auto 2 061 070 Auto 3 071 080 Auto 4 081 090 Auto 5 091 100 Auto 6 101 ...
BEKNOPTE HANDLEIDING Over deze handleiding De COLORdash Accent 3 Beknopte Handleiding (BH) bevat basisinformatie over het product, zoals aansluiting, montage, menu-opties en DMX-waarden. Download de gebruikershandleiding op www.chauvetprofessional.com voor meer informatie. Disclaimer De informatie en specificaties in deze BH kunnen zonder voorafgaande kennisgeving worden gewijzigd. BEPERKTE GARANTIE GA NAAR ONZE WEBSITE VOOR REGISTRATIE VAN DE GARANTIE EN DE VOLLEDIGE ALGEMENE VOORWAARDEN.
Seite 35
BEKNOPTE HANDLEIDING AC-stroom Dit product heeft een voeding met automatisch bereik die werkt met een ingangsspanning van 100–240 VAC, 50/60 Hz. AC-stekker Aansluiting Snoer (VS) Snoer (Europa) Schroefkleur AC Live Zwart Bruin Geel/messing AC Neutraal Blauw Zilver AC Aarde Groen/geel Groen/geel Groen Om onnodige slijtage te elimineren en zijn levensduur te verlengen, gedurende perioden wanneer het...
Seite 36
BEKNOPTE HANDLEIDING Beschrijving bedieningspaneel Toets Functie <MENU> Sluit het huidige menu of functie af <ENTER> Activeert het huidige getoonde menu of plaatst de huidige geselecteerde waarde in de geselecteerde functie <UP> Navigeert omhoog via het menu of verhoogt de numerieke waarde wanneer in een functie <DOWN>...
Seite 37
BEKNOPTE HANDLEIDING Hoofdniveau Programmeerniveaus Beschrijving AUTO. 1 AUTO. 2 AUTO. 3 AUTO. 4 AUTO. 5 Preset automatic programs AUTO. 6 AUTO. 7 AUTO. 8 AUTO. 9 AUTO. 10 SPEED 0–100 User Program 1 User Program 2 User Program 3 User Program 4 User Program 5 Auto Door de gebruiker gedefinieerde...
Seite 38
BEKNOPTE HANDLEIDING Hoofdniveau Programmeerniveaus Beschrijving Gaat verder met de laatste opdracht na Hold Last verlies van DMX-regeling DMX Error/Lost Verduistert de product na verlies van Blackout 3200K 3400K 3500K 4000K 4200K 4500K 4900K Green Hiermee kan de gebruiker de Calibration 0-255 kleurtemperatuur aanpassen 5600K...
