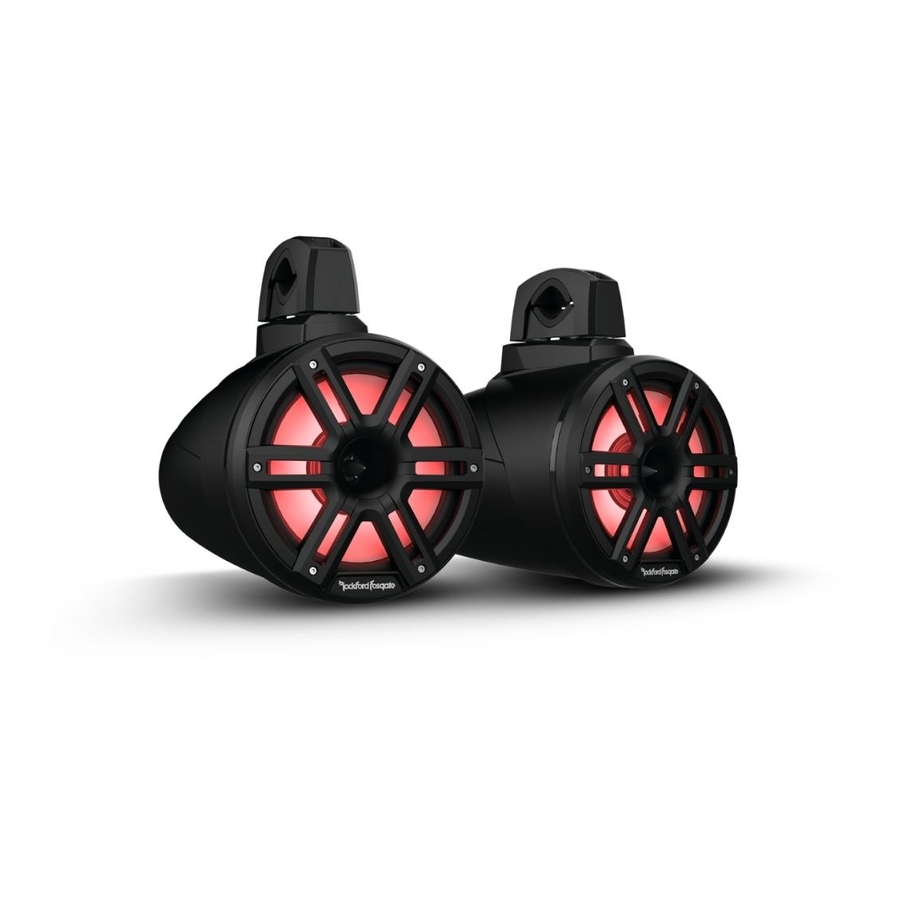

Inhaltszusammenfassung für punch M2WL-8

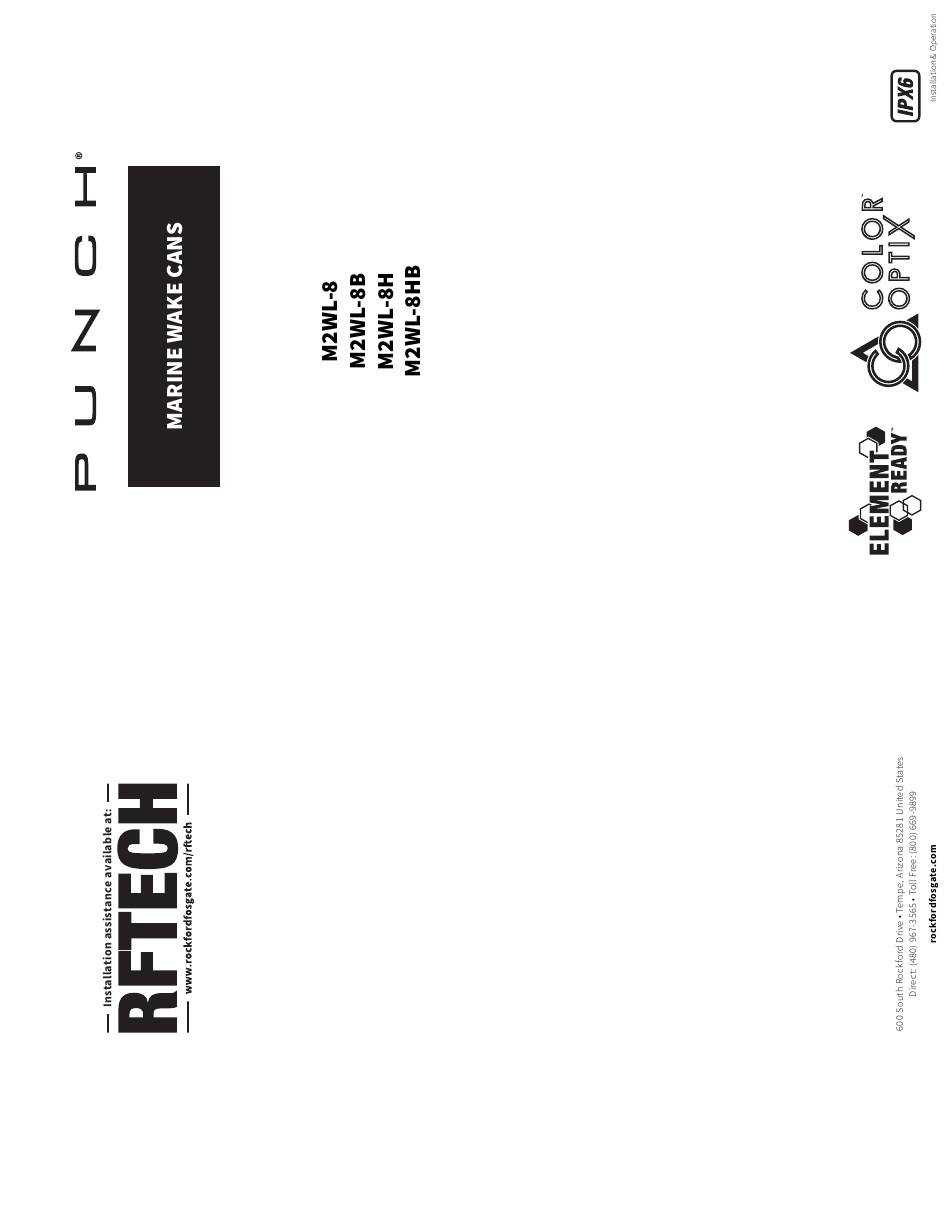

- Seite 1 08312020 1230-73789-01-A Printed In China...
- Seite 2 ©2020 Rockford Corporation. All Rights Reserved. ROCKFORD FOSGATE, PUNCH and associated logos where applicable are registered trademarks ® of Rockford Corporation in the United States and/or other countries. All other trademarks are the property of their respective owners. Specifications...
-
Seite 3: Specifications
Specifications Model M2WL-8 M2WL-8H M2WL-8B M2WL-8HB Nominal Diameter - inch (mm) (203mm). (203mm). Description 2-Way 2-Way Nominal Impedance (Ohms) 4Ω 4Ω Frequency Response (Hz) 35-24kHz 35-25kHz Power Handling - Watts 250/1000 300/1200 (RMS/Peak) Sensitivity (2.83V/1M) 93.1dB 94dB Grille/Trim Ring LED Current Draw .25 Amps... -
Seite 4: Speaker Adjustment
Diagrams Grill Options (Included) illus.-2.1 Speaker Adjustment Remove the speaker to reveal 3° the multi-point mounting option to make sure your speaker is mounted correctly. No matter what direction the speaker is mounted, it should always look like the image above. illus.-3.1 Rear LED Ring Rotation Rotate RGB Medallion to look like... - Seite 5 Diagrams Rotation Lock-down Remove plastic plug to access rotation lock- down torx. illus.-3.3 Use included Safety Torx Wrench to tighten can to clamp to keep Wake Can from swivling Inside Clamp Wiring Wiring is in clamp, remove top part of clamp to see wiring plug illus.-4.1...
-
Seite 6: Installation Considerations
Installation 1 - BLACK (Speaker Negative, 18 AWG) 2 - YELLOW (12V + Input, 22 AWG) 3 - RED (Speaker Positive, 18 AWG) 4 - GREEN (Ground Input, 22 AWG) 5 - RED (Ground Input, 22 AWG) 6 - BLUE (Ground Input, 22 AWG) Included with speakers ™... -
Seite 7: Montage
Français Español 1. Considérations d’installation Consideraciones para la instalación 2. Avant de commencer toute installation, suivez ces règles Antes de comenzar cualquier instalación, siga estas simples reglas: simples: 1. Asegúrese de leer detenidamente y comprender las instrucciones antes 3. Assurez-vous de lire attentivement et de comprendre les de intentar instalar estos altavoces. - Seite 8 Deutsch Italiano Einbauüberlegungen Considerazioni sull’installazione Befolgen Sie vor Beginn einer Installation die folgenden einfachen Regeln: Prima di iniziare qualsiasi operazione d’installazione, vi consigliamo di seguire queste semplici regole: 1. Lesen und verstehen Sie die Anweisungen sorgfältig, bevor Sie versuchen, diese Lautsprecher zu installieren. 1.
-
Seite 12: Warranty
Length of Warranty POWER Amplifiers – 2 Years BMW® Direct Fit Speakers – 2 Years PUNCH® & PRIME® Amplifiers – 1 Year Speakers, Signal Processors, Accessories and Capacitors – 1 Year All marine, motorcycle, motorsport products - 2 Years Any Factory Refurbished Product – 90 Days (receipt required)
