ASROCK H81 Pro BTC Handbuch Seite 25

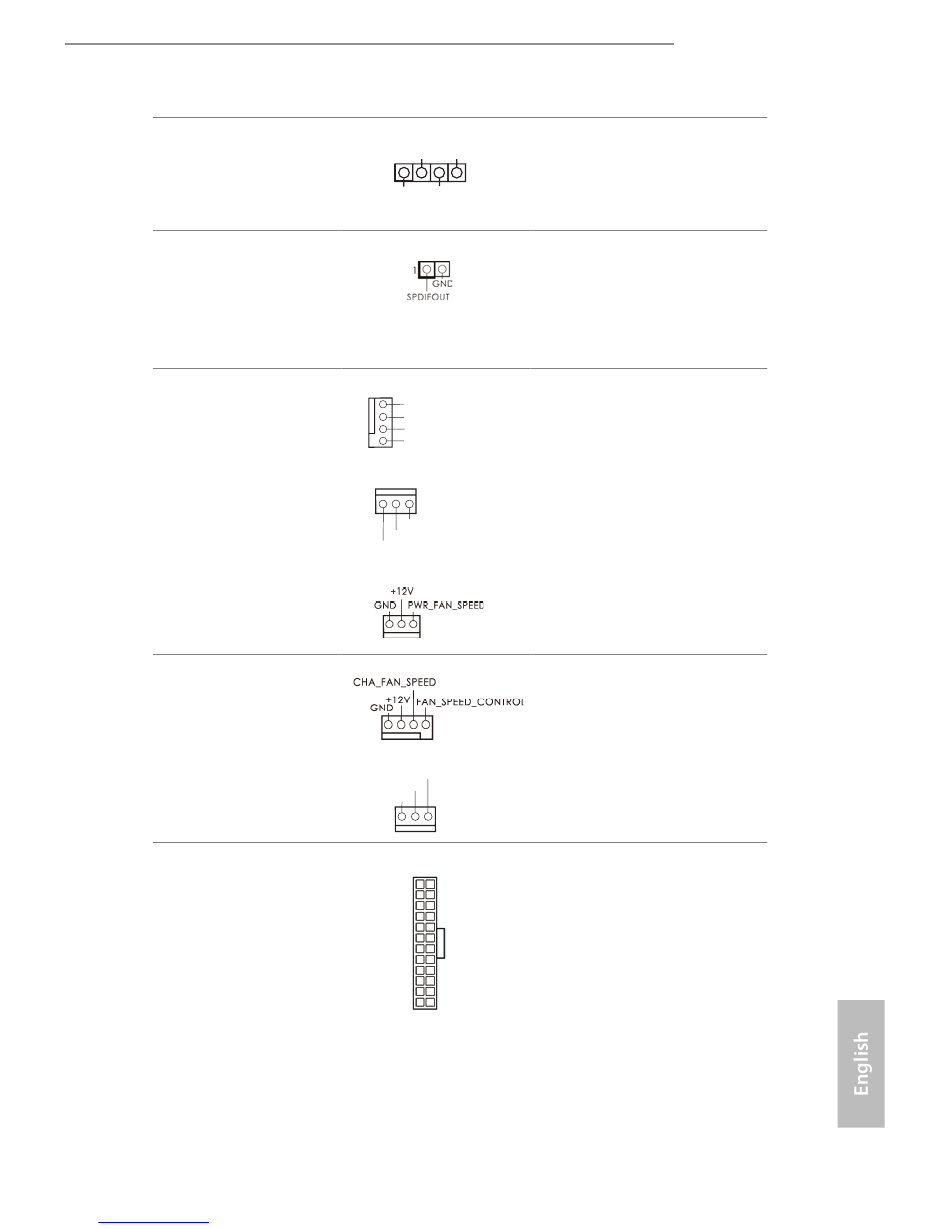

Chassis Speaker Header
(4-pin SPEAKER1)
(see p.1, No. 10)
SPDIF Out Connector
(2-pin SPDIF_OUT1)
(see p.1, No. 19)
Chassis and Power Fan
Connectors
(4-pin CHA_FAN1)
(see p.1, No. 8)
(3-pin CHA_FAN2)
(see p.1, No. 18)
(3-pin PWR_FAN1)
(see p.1, No. 3)
CPU Fan Connectors
(4-pin CPU_FAN1)
(see p.1, No. 2)
(3-pin CPU_FAN2)
(see p.1, No. 1)
ATX Power Connector
(24-pin ATXPWR1)
(see p.1, No. 7)
