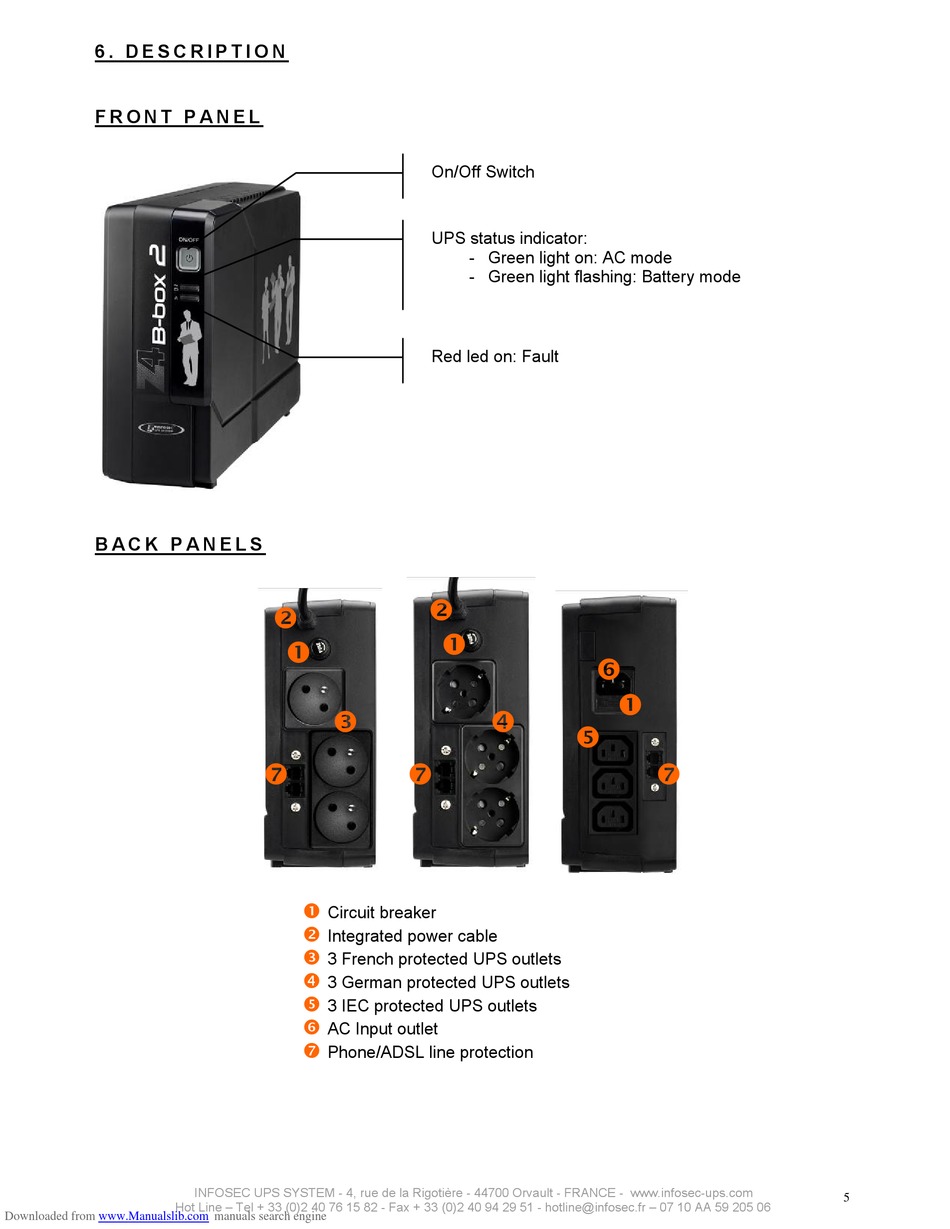

6 . D E S C R I P T I O N
F R O N T P A N E L
B A C K P A N E L S
Hot Line – Tel + 33 (0)2 40 76 15 82 - Fax + 33 (0)2 40 94 29 51 - hotline@infosec.fr – 07 10 AA 59 205 06
Downloaded from www.Manualslib.com





Circuit breaker

Integrated power cable

3 French protected UPS outlets

3 German protected UPS outlets

3 IEC protected UPS outlets

AC Input outlet

Phone/ADSL line protection
INFOSEC UPS SYSTEM - 4, rue de la Rigotière - 44700 Orvault - FRANCE - www.infosec-ups.com
manuals search engine
On/Off Switch
UPS status indicator:
- Green light on: AC mode
- Green light flashing: Battery mode
Red led on: Fault








