Comus Calvi II Bedienungsanleitung Seite 4

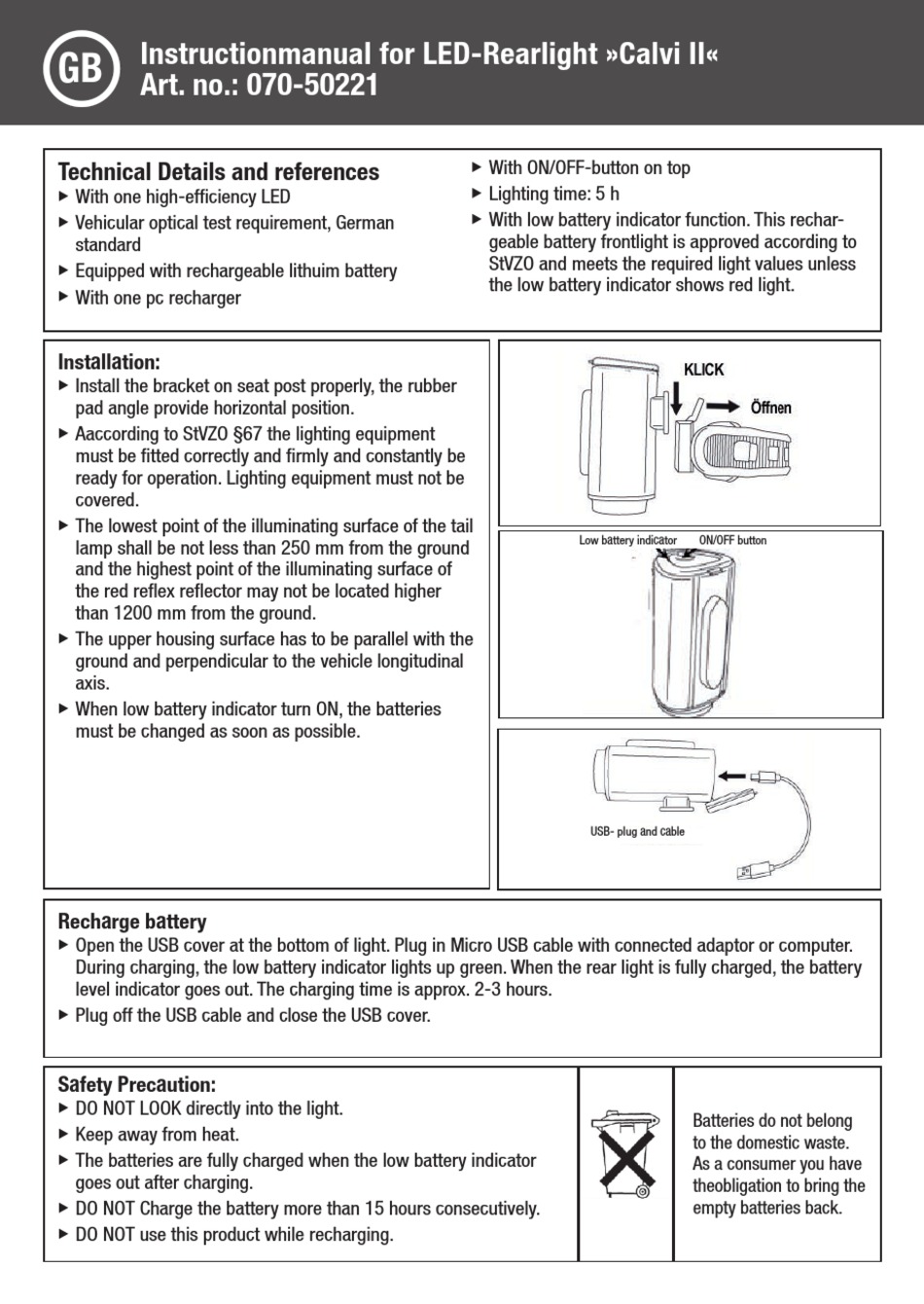

Instructionmanual for LED-Rearlight »Calvi II«
GB
Art. no.: 070-50221
Technical Details and references
With one high-efficiency LED
u
Vehicular optical test requirement, German
u
standard
Equipped with rechargeable lithuim battery
u
With one pc recharger
u
Installation:
Install the bracket on seat post properly, the rubber
u
pad angle provide horizontal position.
Aaccording to StVZO §67 the lighting equipment
u
must be fitted correctly and firmly and constantly be
ready for operation. Lighting equipment must not be
covered.
The lowest point of the illuminating surface of the tail
u
lamp shall be not less than 250 mm from the ground
and the highest point of the illuminating surface of
the red reflex reflector may not be located higher
than 1200 mm from the ground.
The upper housing surface has to be parallel with the
u
ground and perpendicular to the vehicle longitudinal
axis.
When low battery indicator turn ON, the batteries
u
must be changed as soon as possible.
Recharge battery
Open the USB cover at the bottom of light. Plug in Micro USB cable with connected adaptor or computer.
u
During charging, the low battery indicator lights up green. When the rear light is fully charged, the battery
level indicator goes out. The charging time is approx. 2-3 hours.
Plug off the USB cable and close the USB cover.
u
Safety Precaution:
DO NOT LOOK directly into the light.
u
Keep away from heat.
u
The batteries are fully charged when the low battery indicator
u
goes out after charging.
DO NOT Charge the battery more than 15 hours consecutively.
u
DO NOT use this product while recharging.
u
With ON/OFF-button on top
u
Lighting time: 5 h
u
With low battery indicator function. This rechar-
u
geable battery frontlight is approved according to
StVZO and meets the required light values unless
the low battery indicator shows red light.
Low battery indicator
USB- plug and cable
ON/OFF button
Batteries do not belong
to the domestic waste.
As a consumer you have
theobligation to bring the
empty batteries back.
