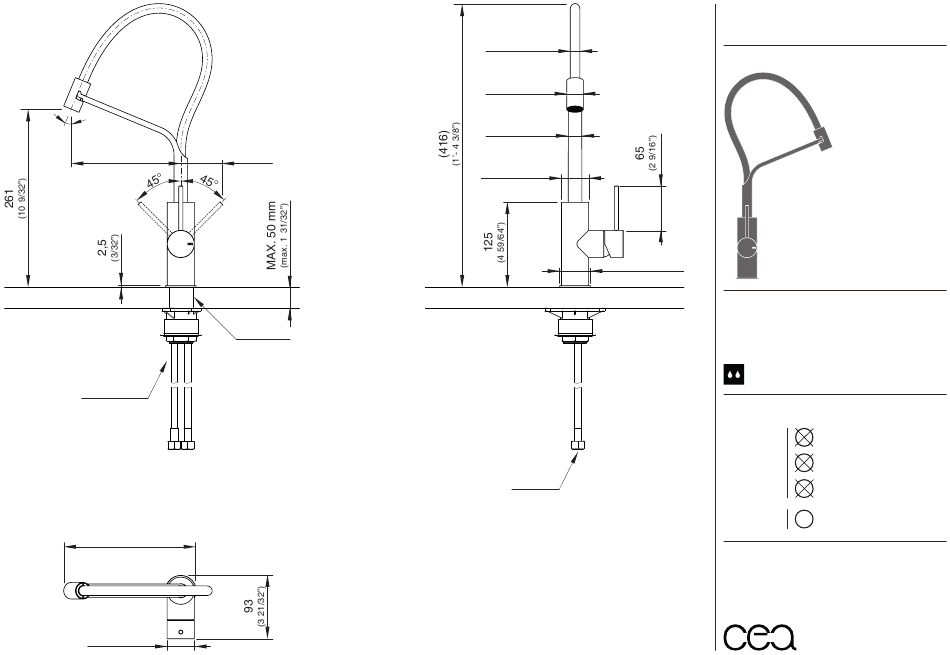

23°
140
(5 33/64")
L. 600 mm
(1' - 11 5/8")
193
(7 19/32")
Ø40
(Ø1 37/64")
62
(2 7/16")
Ø34
(Ø1 11/32")
Ø14
(Ø35/64")
Ø24
(Ø15/16")
Ø20
(Ø25/32")
Ø40
(Ø1 37/64")
Ø45
(Ø1 49/64")
G 3/8"
MIL203
_ REV10
CEA DESIGN STUDIO
MIL203/MILO360
AISI 316/L STAINLESS STEEL
Miscelatore monoforo con bocca
di erogazione girevole e doccino
estraibile. Flessibile in gomma
siliconica colorata
Deck mounted mixer with swivelling
spout and pull-out hand shower.
Hose in coloured silicone rubber
Aeratore utilizzabile in cucina e lavanderia
Suitable for kitchen and laundry sink
MANUTENZIONE / MAINTENANCE
acido clorico e muriatico
HCl
cloric and muriatic acid
acido fluoridrico
NON UTILIZZARE
HFl
DO NOT USE
hydrofluoric acid
ipoclorito di sodio
NaClO
chlorine bleach
sapone a PH neutro
UTILIZZARE
PH
TO USE
7
neutral PH soap
Questi disegni sono proprietà di CEADESIGN SRL s.u. pertanto non potranno
essere utilizzati e/o comunicati a terzi, anche in forma parziale, senza preventiva
autorizzazione. CEADESIGN SRL s.u. si riserva il diritto di apportare modifiche ai
disegni al fine di migliorare il prodotto.
CEADESIGN SRL s.u. has the property rights on these drawings, therefore they
cannot be used and/or transferred to third party, even in partial form, without any
prior authorization. Furthermore CEADESIGN SRL s.u. reserves the right to apply
any change to these drawings in order to upgrade the product.
