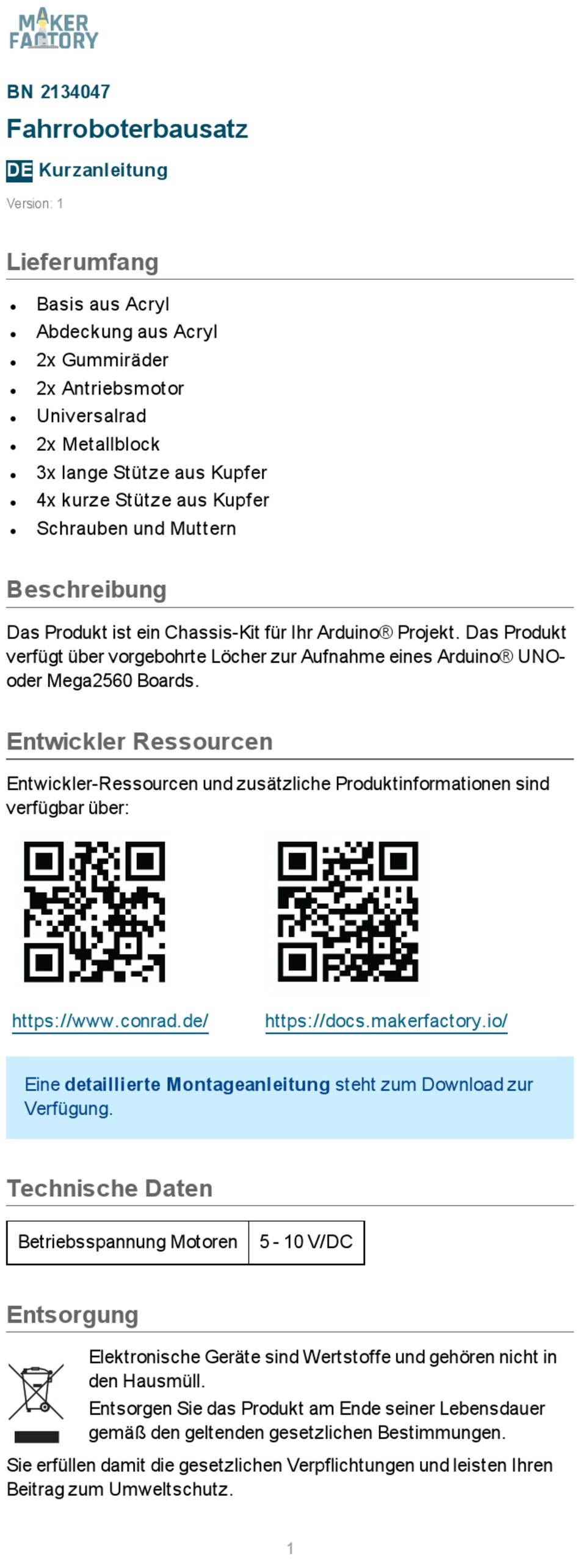

BN 2134047 Fahrroboterbausatz Kurzanleitung Version: 1 Lieferumfang Basis aus Acryl Abdeckung aus Acryl 2x Gummiräder 2x Antriebsmotor Universalrad 2x Metallblock 3x lange Stütze aus Kupfer 4x kurze Stütze aus Kupfer Schrauben und Muttern Beschreibung Das Produkt ist ein Chassis-Kit für Ihr Arduino® Projekt. Das Produkt verfügt über vorgebohrte Löcher zur Aufnahme eines Arduino®...
Seite 2
Impressum Dies ist eine Publikation der Conrad Electronic SE, Klaus-Conrad-Str. 1, D-92240 Hirschau (www.conrad.com). Alle Rechte einschließlich Übersetzung vorbehalten. Reproduktionen jeder Art, z. B. Fotokopie, Mikroverfilmung, oder die Erfassung in elek- tronischen Datenverarbeitungsanlagen, bedürfen der schriftlichen Genehmigung des Herausgebers. Nachdruck, auch auszugsweise, verboten.
Seite 3
BN 2134047 Drive Robot Chassis Kit Quick Instructions Version: 1 Delivery Content Base acrylic board Top acrylic board 2x Rubber wheel 2x Gear motor Universal wheel 2x Metal block 3x Long copper cylinder 4x Short copper cylinder Nuts and bolts Description The product is car chassis kit for your Arduino®...
Seite 4
Legal Notice This is a publication by Conrad Electronic SE, Klaus-Conrad-Str. 1, D- 92240 Hirschau (www.conrad.com). All rights including translation reserved. Reproduction by any method, e.g. photocopy, microfilming, or the capture in electronic data pro- cessing systems require the prior written approval by the editor. Reprinting, also in part, is prohibited.
