Connecting the Phone Adapter to the
Telephone

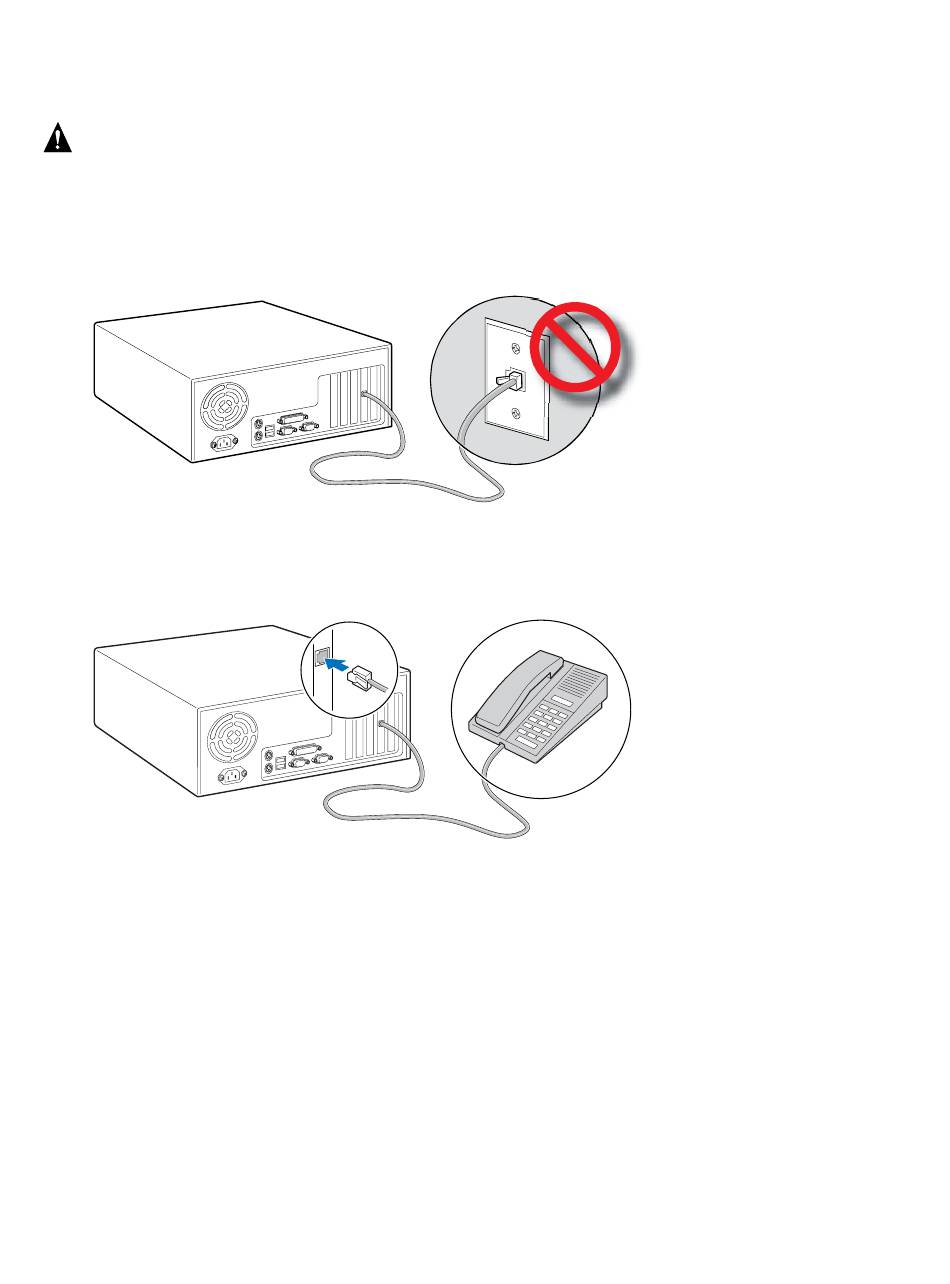

CAUTION
Do not directly connect the Intel 600SM Phone Adapter card to a
telephone wall jack. The phone adapter will not function properly
until it is disconnected from the telephone wall jack and the PC is
rebooted. The phone adapter will only function properly when
connected to an analog phone.
1. Connect a standard telephone to the RJ-11 jack on the back
panel of the phone adapter card, as shown below.
2. Reconnect the PC's AC power cord.
RJ-11
OM19433
OM19434
7
