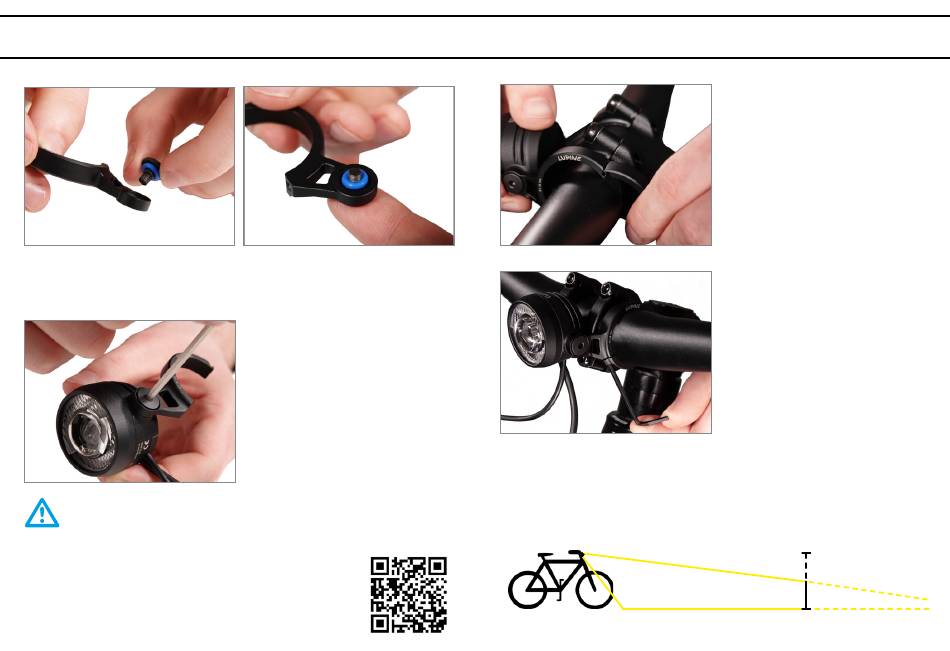

Assembly
1.
1. Put the M4 bolt screw through the hole of the upper part of the holding
clamp. Follow the order: Screw / O-Ring / Holder / O-Ring
2.
For a centric installation at 50mm stems, there's a stem kit
(Art.No. 5355) available.
Here you'll find a video, how to prepare the light cable
for installation.
2. Mount the upper clamp on to the
lamphead. Use the enclosed allen
key size 3 for that. (2Nm)
Note: The screw should be attached
pretty easily. If not, please try to
postition it and screw it on again.
Otherwise the thread can be da-
maged.
The mount should be positioned near to the stem. The notches of the junc-
tion have to interlock perfectly. The lamphead should be positioned centered
and also near to the stem.
Adjustment of the lamp:
Height of the light cone after
5m: Half height as outlet
Height for Mounting: 400-1200mm
3.
3. Position the lamp together
with the clamp at the left side of
the stem. Then bring both halfs
of the mount together.
4.
4. Allign the lamp correctly and
screw it tightly with the allen key 2.5,
max. 1Nm
1/2
5m:
