Topeak WHITELITE HP MEGA 420 Bedienungsanleitung

3W
Constant
1.5W
Constant
On-Off,
Blinking
mode
selection
button
off
LIGHT UNIT
HELMET
HELMET MOUNT
MOUNT PAD
PROTECTION PAD X 2pcs
INSTALLATION
A
Rubber Pad B
+
B
Rubber Pad B
BATTERY CHARGING
Connect Micro
USB Cable to
PowerPack
and computer
USB port, or
USB charger
to charge
Open Micro USB Port Cap
PowerPack.
Charging Time (approx)
• Charging and operating times may vary depending
4-5
on ambient temperature and power source.
hours
CAUTION
1. This PowerPack is not waterproof. Never intentionally submerge it under water or connect to light body
when it's raining.
2. If PowerPack is dropped, battery case may be cracked and a short circuit may occur. Replace
PowerPack immediately.
3. If the PowerPack body or parts become dirty, clean gently with a soft damp cloth using mild soap.
Never use harsh chemicals to clean PowerPack or allow moisture to contact terminals.
4. When connecting and disconnecting the plug and socket, hold the connector ends only. Do not attempt
to connect or disconnect the plug/ socket interface by pushing or pulling on wires or serious damage
to wires and connectors will occur.
5. After long periods of non-use, the battery will lose charge. Always charge the battery fully before each
use and storage.
6. Maintain the battery by charging it every two months and storing it in a cool, dry place to prevent from
decreasing its lifespan. 3 to 5 charging cycles are needed to attain full capacity after a long period of
non-use.
7. Safely and properly dispose of old Li-ion batteries according to your local regulations.
8. Topeak does not take any responsibility for any lost information on device of any kind and will not
reimburse you for any such loss.
9. Keep out of reach of children.
10. Pacemaker users should never use this device.
11. If the Power Indicator does not work after pressing the power Indicator button, please recharge the
battery immediately.

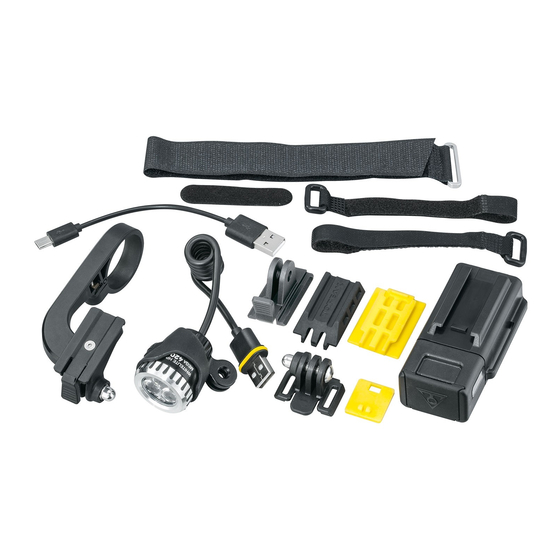

WHITELITE HP MEGA 420
™
WITH 3000mAh POWERPACK
MICRO-USB CABLE
GoPro® MOUNT ADAPTER
STRAP X 2pcs
3mm ALLEN KEY
Helmet Mount
Strap
Protection pad
Helmet
Mount Pad
Helmet Mount
Only
To computer USB port
or USB charger.
USB
STRAP
A
RUBBER PAD X 2pcs
POWERPACK
Indicator Button
USB Output
Port (5V/2A)
Battery
Level Indicator
BATTERY LEVEL INDICATOR
Micro USB Input
Port (5V/1A)
0~25% 25~50%
(recharge battery)
or
HELMET MOUNT REMOVAL
3 mm Allen Key
Recommended Torque
1.5 Nm
Power Indicator Battery Power Level
INPUT
Micro USB
Micro-USB Cable
The blue LED's will blink when
charging and will stop blinking
when battery is fully charged.
SPARE PARTS
POWERPACK HELMET MOUNT
Art No. TMS-SP102
MICRO USB CABLE
Art No. TMS-SP101 Art No. TRK-PAN004
OPTIONAL ACCESSORIES
PANOCOMP X MOUNT MOBILE POWERPACK
Art No. TRK-PANO10
B
WARNING
Although light body is water-resistant (under normal
weather conditions of rain, etc.) never intentionally
submerge it underwater.
Do not contact the light unit surface during
operation, as it may cause a risk of burns.
• Press for checking
SPECIFICATION
battery power level
before each use.
Function : 3W Constant / 1.5W Constant / Blinking
Burn Time : 1.3 hrs / 2.8 hrs / 2.8 hrs
Luminous : 420 Lumens / 180 Lux / 5M
Lamp : 1W LED
Battery : 3.7V 3000mAh Lithium Ion
Charge : Micro USB
Input Charge Time (approx): 4-5hrs.
Output: USB ports / DC 5V 2A
Input: Micro USB / DC 5V 1A
50~75% 75~100%
Power Indicator: 4 LED's
3 mm Allen Key
Recommended Torque
1.5 Nm
2
1
Connect light unit to
powerpack USB Output
Port and make sure the
USB Cable is installed
properly before use.
Do not charge battery in a damp or dusty location or
0 ~ 25%
areas affected by oil fumes or steam.
25 ~ 50% Do not charge battery on carpet, fabric materials or near
a heater or in direct sunlight.
50 ~ 75%
Do not disassemble or modify the battery case.
Do not connect or disconnect USB charging cord with
75 ~ 100%
wet hands as you may risk fire and/ or electric shock.
Do not leave battery connected to charger over 48 hours
continuously.
Do not insert metal parts into the terminal.
It is normal for the battery charger and battery to
become hot during charging. Please use caution when
charging battery.
WARRANTY
1-year Warranty: All mechanical components (body, covers
and fasteners) against manufacturer defects only.
90-day Warranty: All batteries and cables against
manufacturer defects only.
Warranty Claim Requirements
To obtain warranty service, you must have your original
sales receipt. Items returned without a sales receipt will
assume that the warranty begins on the date of
manufacture. All warranties will be void if the product is
damaged due to user crash, abuse, system alteration,
modification, or used in any way not intended as
described in this manual.
* The specifications and design are subject to change
without notice.
6000
Please contact your Topeak dealer with any questions.
For USA customer service call: 1-800-250-3068
www.topeak.com
* Designed for use with GoPro® products. GoPro is a
registered trademark of GoPro®, Inc.
Art No. TMPP-2
USER'S GUIDE
EN
NOTE:
• Ensure powerpack
and light unit are
firmly affixed on
helmet. Press
Indicator button for
checking battery
power level before
each use.
• Turn on light before
wearing helmet.
USB Output
Port (5V/2A)
