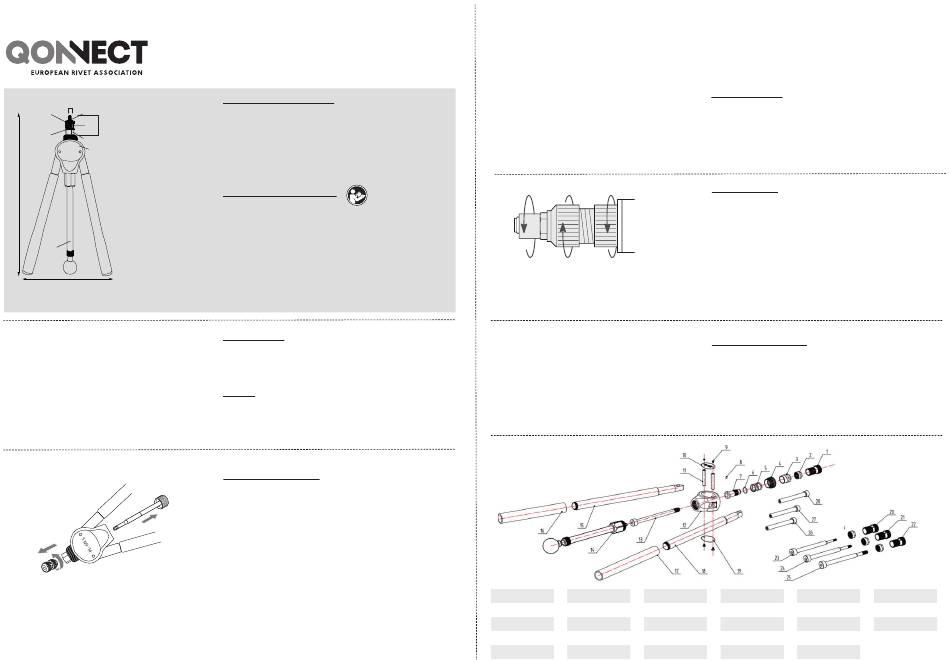

PL-6NS
Manual
OPERATING INSTRUCTIONS
HAND TOOL FOR BLIND RIVET NUT M3M6
PL-6NS
TECHNICAL INFORMATION
Capacity: Blind rivet nuts M3 - M4 - M5 – M6
Blind rivet bolts M4 - M5 - M6
Material: Aluminium, Steel and Stainless Steel
Size: 380 mm (L) x 170 mm (H) 64 mm (P) 16 mm (0)
Weight: 0.77 Kg
DESCRIPTION OF THE TOOL
Read the manua
1. Tool body
2. Left and right lever
3. Spindle
4. Mandrel M6
5. Anvil M6
6. Counter lock nut
7. Front sleeve with stroke indicator
8. Adjust nut
INSTRUCTIONS
The hand tool will be standard equipped with the M6 anvil and M6
mandrel for Rivet nuts.
The other components will be stored separate in the carton box.
FIRST USE:
Make sure before using the tool that the anvil and the mandrel are
suitable for the thread of the insert to be used. Otherwise change it to
a different size.
A
CHANGE TO A DIFFERENT SIZE:
Open the levers (2) Now Unscrew the anvil (5) and the lock nut (6).
Screw out the spindle(3) This way the mandrel will come loose, and you
will be able to withdraw the mandrel from the tool. Replace by choosing
the correct size from the spare parts in the carton box, and re-assemble
by following the above steps in the opposite direction.
To change into setting Rivet bolts, choose the correct size Rivbolt
*
puller, and combine it with the correct Anvil and lock nut.
l
6 5
1 6
04L00438 04F60037
2 7
04P00435 04Z20901
3 8
04L20121 04F00102
4 9
04L20122 04L21636
5 10
04L20875 04L20509
B
STROKE ADJUSTMENT:
Close the levers completely and use the adjust nut to increase or
decrease the stroke. The higher the stroke, the higher the deformation
of the rivet nut will be, and vice versa.
The stroke is dependent on:
• The grip range
• The blind rivet nut
C
ANVIL ADJUSTMENT:
After adjusting the stroke, is it necessary to adjust the anvil (5) and its
counter lock nut (6).
Open the levers completely. This way the mandrel will come out
completely. The protrusion of the mandrel out of the anvil should be as
long as the whole rivet nut. This to make sure the full thread of the rivet
nut will be used to set the rivet nut. Unscrew the counter lock nut (6)
and adjust the anvil (5) by turning left or right, to increase or decrease
the length. After the correct length is applied, screw the counter lock
nut until it is tight. Changing the threaded inserts or stroke requires this
step ever time.
D
SETTING A THREADED INSERT:
Put the tool in start position by opening the levers up to a maximum,
so that the mandrel will come out completely. Screw the insert on the
threaded end of the mandrel, and make sure it is completely tight. Now
insert it into the hole of the material. The hole size must be slightly
larger than the rivet nut. Check the specifications of the rivet nut to be
sure. Close the levers completely to set the rivet nut. Once the rivet nut
is set, unscrew the threaded insert by using the spindle.
11 16 21
04L20511 04L20902 04L00436
12 17 22
04L20510 04L20513 04L00437
13 18 23
04L20127 04Z20903 04L20130
14 19 24
04Z20953 04L20507 04L20129
15 20 25
04Z20902 04L00434 04L20128
26
04L20721
27
04L20722
28
04L20723
PL-6NS
Manual
