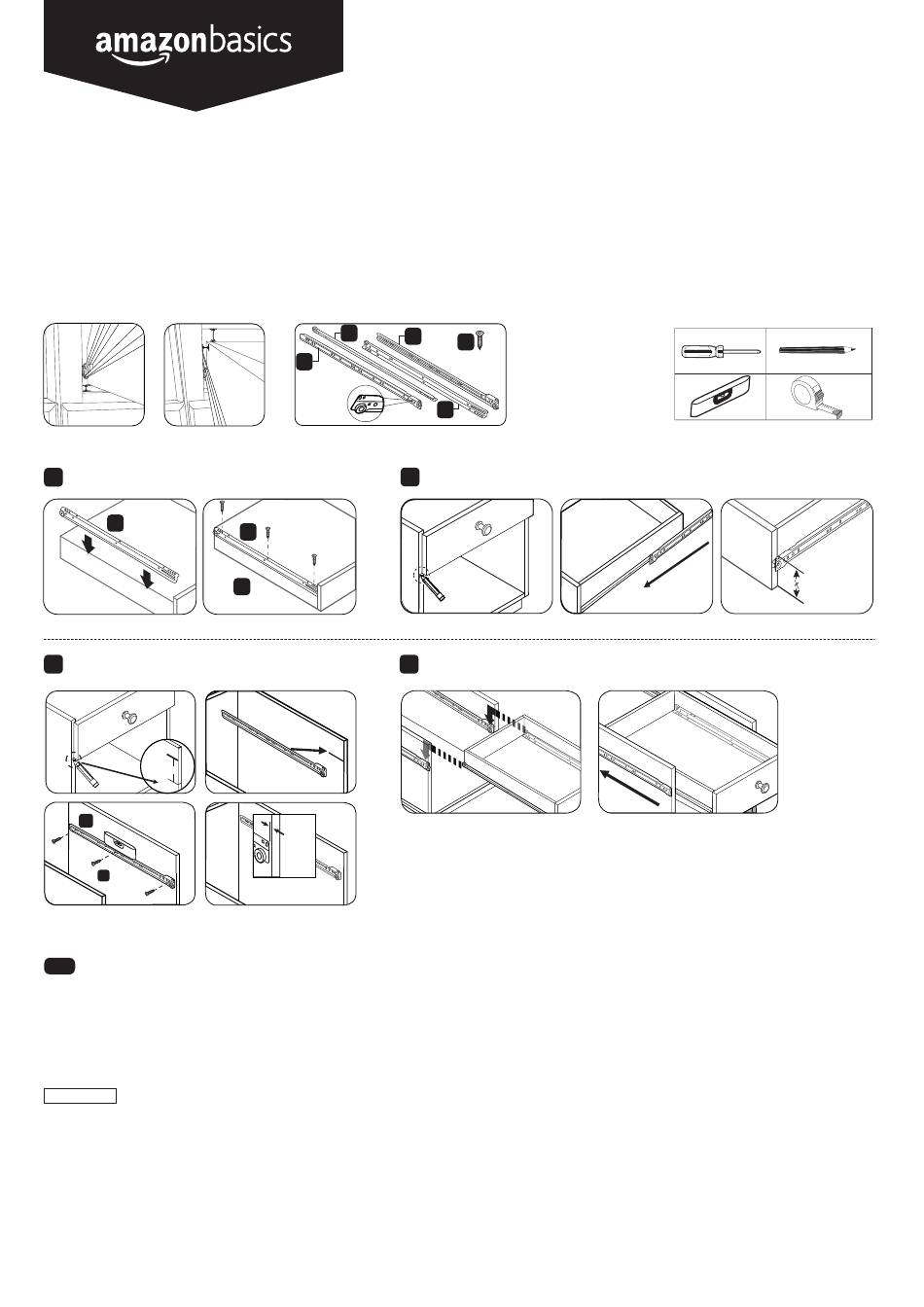

AmazonBasics AB-5009 Montageanleitung

Drawer Slide Installation Guide
Guide d'Installation De La Coulisse Pour Tiroir
Schubladenauszug – Montageanleitung
Guida all'Installazione Di Una Guida Scorrevole Per Cassetti
Guía De Instalación De La Guía Telescópica Del Cajón
Installatiehandleiding voor Ladegeleiders
引き出しスライド取り付けガイド
B01N7TOO9X, B01N13646M, B01MTB9YJ5, B01N365TIC, B01N135YE4, B01N9TY9YM, B01MS9NPOE, B01MTB9X9E
5/8"(16mm)
1/2"(12.7mm)
1/4"(6.4mm)
1
B2
3
1 2
x
B1
C x3
3
4
EN
Caution
This product contains small items that could be a choking hazard if swallowed. Keep
these items away from young children.
• Make Sure these instructions are read and completely understood before
attempting installation. If you are unsure of any part of this installation, please
contact a professional installer for assistance.
NOTICE
These slides are for frameless cabinets. Face-frame cabinets will
require a face-frame kit.
What's included:
A. Two (2) Cabinet Member
B. Two (2) Drawer Member
C. Twelve (12) #6 x ½" Flat Head Wood Screws
A2
B1
A1
2
B2
C
x3
1
4
1/8"
(3.3mm)
C
B2
2
Product Specifications:
• Applicable for office file drawers, bedroom furniture and kitchen cabinets made
from wood or plastic.
• Thickness: 0.047 inch (1.2mm); Width: 0.88 inch (22.4mm).
• 55 lbs max weight capacity; made from cold rolled steel and nylon track wheels.
• Premium bottom mounting euro drawer slides with white powder coat finish.
• Recommended clearance for bottom of drawer: 1/4 inch (6.4mm).
• Recommended clearance for top of drawer: 5/8 inch (16mm).
• Recommended side clearance: 1/2 inch (12.7mm).
• This item is available in the following lengths: 10", 12", 14", 16", 18", 20",
22" and 24".
• Certified to the EN and US corrosion resistance standard.
