Adjust the picture size and focus
Refer to "Image Projection" in the projector operation manual for information on adjusting the focus and
picture size.
Handling Precautions
●Do not disassemble this lens.
Please refer to your authorized dealer for any maintenance and inspections requiring an open cabinet.
●Touching any other internal part could cause personal injury or machine malfunction.
●Do not touch any glass or protruding part of the lens. This may cause personal injury and reduced
performance of the projector.
●When maintaining the projector the following points should be noted.
• When cleaning the lens be sure to use a commercial air blower or lens cleaning paper (used in cleaning
glasses and cameras).
• The surface of the lens is very delicate. Do not allow hard objects to bump or rub against it.
Caution
● Be sure not to attach this lens to the projector when storing or carrying the projector. This
may cause damage to them.
Supplied Accessories
• Lens cap (front) × 1
• Installation manual
Specifications
Model
Picture size (diagonal)
Focal length
F no.
Throw ratio
Weight
Depth of projector with the lens attached

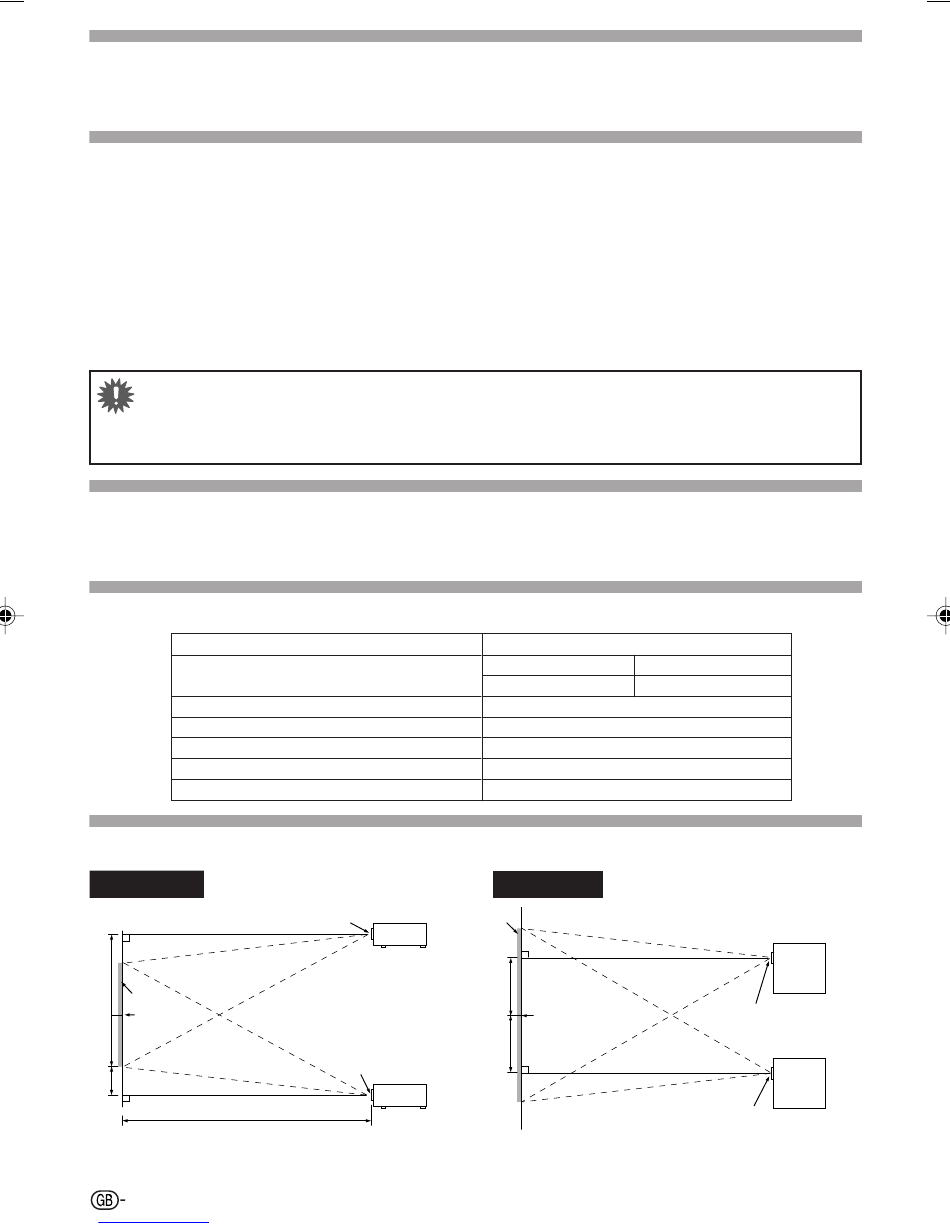

Picture size and projection distance chart
Side View
90°
Screen
H1
Center of
screen
H2
90°
1
Downloaded from www.Manualslib.com
• Lens cap (rear) × 1
• Operation manual (this manual)
Lens center
Lower lens shift
position
(High mount setup)
Lens center
Upper lens shift
position
L
(Desktop setup)
manuals search engine
AN-P8EX
XG-P610X series 80'' to 150'' (4:3)
XG-P560W series 80'' to 140'' (16:10)
15
11.6 mm ( / '')
32
2.5
1:0.8
Approx. 2,500 g (5.5 lbs.)
711 mm (28'')
Top View
Screen
90°
Center of screen
W
90°
Leftmost lens
Lens center
shift position
Lens center
Rightmost lens
shift position
