Subzero SZ-CPT Kurzanleitung

SZ-CPT WIDESCREEN GUITAR & BASS
PEDAL TUNER USER MANUAL
1. ON/OFF
2. Screen:
A. Note Name
B. Tuning Meter and Calibration
3. Input
4. Output

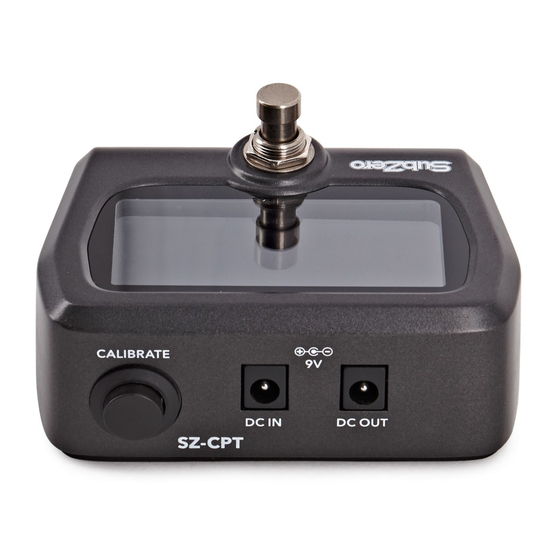

5. 9V DC Input
6. 9V DC Output
7. Battery Compartment
8. Calibration Button
HOW TO USE
1. Install the battery, or connect an AC-DC 9V power
supply. Please check the polarity of your power
supply before use.
2. When your instrument is plugged in, the tuner will
automatically turn on. When the tuner is engaged
using the ON/OFF button, your signal will be
bypassed and will not go to the output. Disengage
the tuner to allow your signal to pass through.
3. Play a single note from your instrument, the note
name will appear in the tuner screen. The screen
color will change, and the tuning needle will move.
• The screen turns green, the center needle
appears, both triangles besides the note name
appear: in tune.
• The screen is white, the left tuning needles
appear, the triangle at the left side of the note
name appears: fl at note
6
B
A
2
4
7
1
• The screen is white, the right tuning needles
apprear, the triangle at the right side of the note
name appears: sharp note.
4. When you remove your cable form the input, the
pedal will automatically turn off.
SPECIFICATIONS
Tuning Mode . . . . . . . . . . . Chromatic
Tuning Range . . . . . . . . . . AO (27.5Hz) -
Pitch Range . . . . . . . . . . . . 430 - 450Hz
Tuning Way . . . . . . . . . . . . The singal input must be
Tuning Tolerance . . . . . . . ±0.5 cent
Power . . . . . . . . . . . . . . . . . 6F22 battery, or 9V DC
Dimension . . . . . . . . . . . . . 107 x 84 x 54mm
Weight . . . . . . . . . . . . . . . . 276g
Attachment . . . . . . . . . . . . Manual, Battery
If you have any more questions about this product, please do not hesitate to contact the
Gear4music Customer Service Team on: +44 (0) 330 365 4444 or info@gear4music.com
C8 (4186.00Hz)
connected
5
8
3
