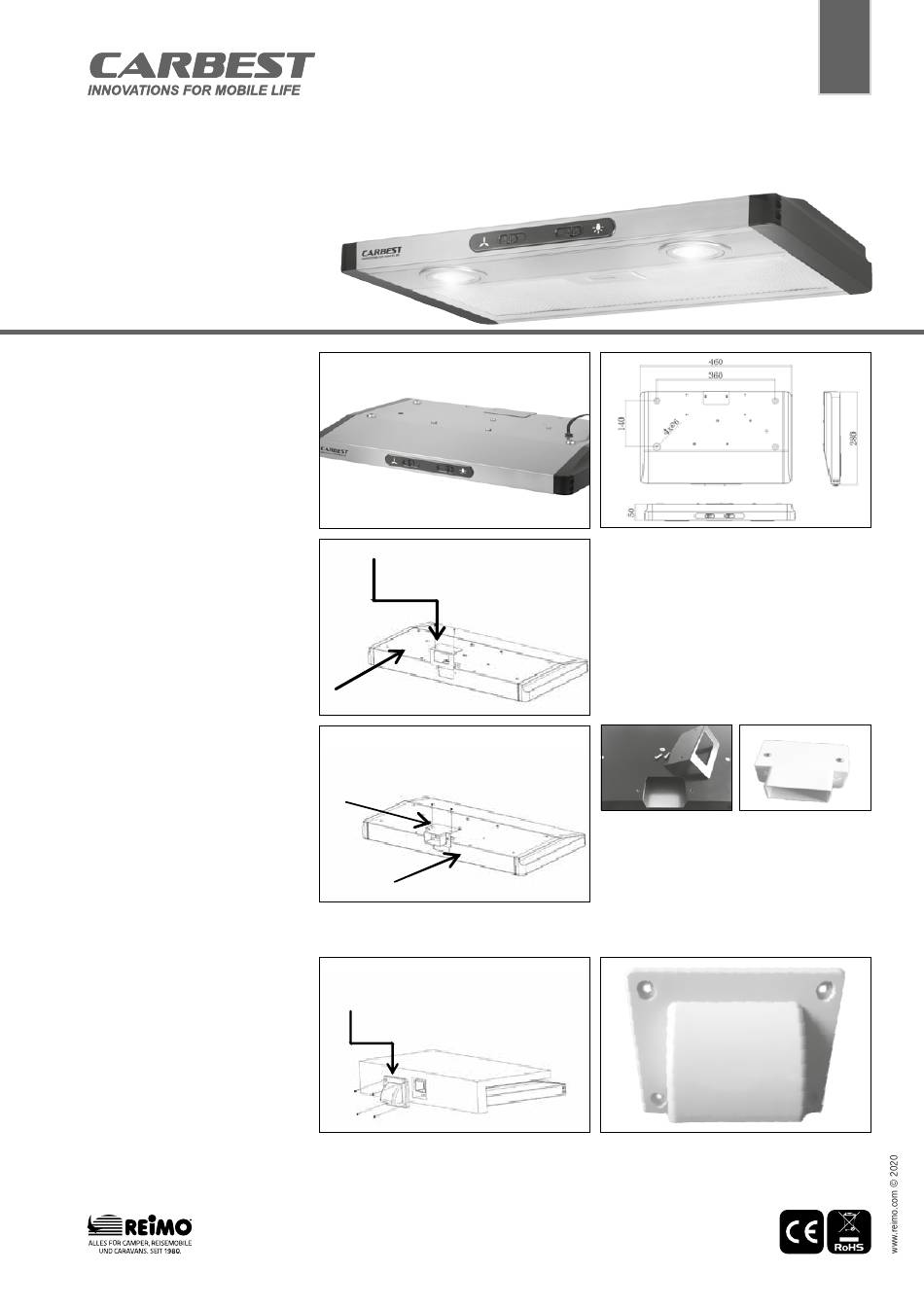

Reimo Carbest 31852 Installation

Surface mounted range hood - stainless steel
• Overall size: 460 x 280 x 50 mm
• Power: 15 – 30 W
• Voltage: 12 V
• Weight: 1,8 kg
SIZE AND DIMENSIONS
Carbest built-under extractor hood made of
stainless steel.
REMOVE SCREWS,
dismantling the metal vent from the main
body.
INSTALL THE OUTLET
on the rangehood
INSTALL EXHAUST COVER
Place the exhaust cover into the right
position to cover the outlet and then place
screw to secure it to the wall panel.
REIMO REISEMOBIL-CENTER GMBH · 63329 EGELSBACH · BOSCHRING 10 · GERMANY
WWW.REIMO.COM · MADE IN CHINA
01
Metal vent
Main Body
02
Plastic vent A
Main Body
Install plastic vent A to main body
03
Plastic vent B
Connect plastic vent B to vent A,
screw vent B to external wall
Remove the metal outlet and install the plastic vent
A on the rangehood
Plastic vent B
