Limited One Year Warranty
T&S warrants to the original purchaser (other than
for purposes of resale) that such product is free from
defects in material and workmanship for a period of
one (1) year from the date of purchase. During this
one-year warranty period, if the product is found to
be defective, T&S shall, at its options, repair and/
or replace it. To obtain warranty service, products
must be returned to...
T&S Brass and Bronze Works, Inc.
Attn: Warranty Repair Department
2 Saddleback Cove
Travelers Rest, SC 29690
Shipping, freight, insurance, and other transpor-
tation charges of the product to T&S and the return
of repaired or replaced product to the purchaser are
the responsibility of the purchaser. Repair and/or
replacement shall be made within a reasonable time
after receipt by T&S of the returned product. This
warranty does not cover Items which have received
secondary finishing or have been altered or modi-
fied after purchase, or for defects caused by physi-
cal abuse to or misuse of the product, or shipment
of the products.
Any express warranty not provided herein, and
any remedy for Breach of Contract which might arise,
is hereby excluded and disclaimed. Any implied
warranties of merchantability or fitness for a particu-
lar purpose are limited to one year in duration. Under
no circumstances shall T&S be liable for loss of
use or any special consequential costs, expenses
or damages.
Some states do not allow limitations on how long
and implied warranty lasts or the exclusion or limi-
tation of incidental or consequential damages, so
the above limitations or exclusions may not apply
to you. Specific rights under this warranty and other
rights vary from state to state.
P/N: 098-012367-45
Date: 990518
Drawn: CW
Checked: MAB 8-10-99
Approved: MVW 8-6-99

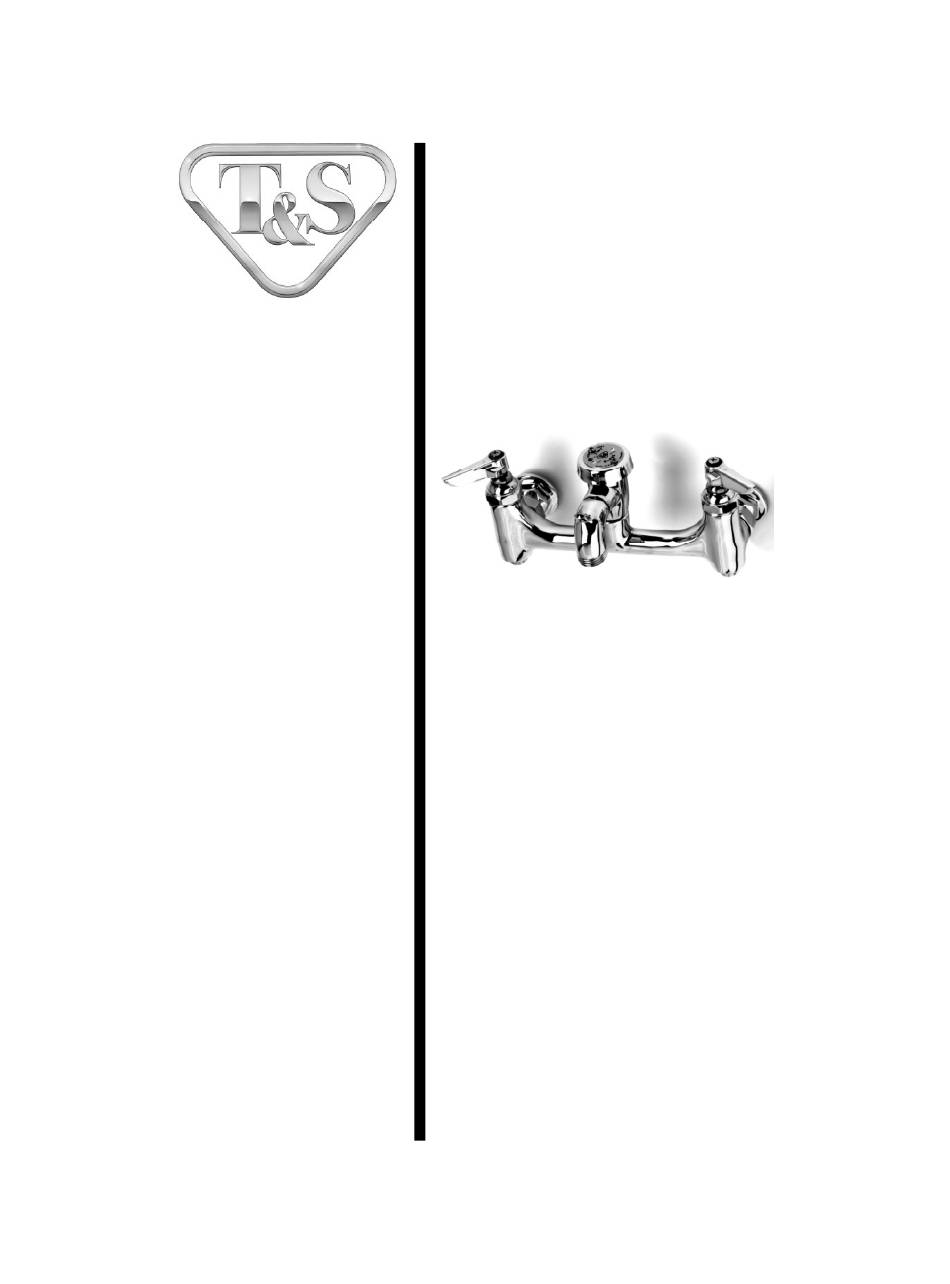

Installation and
Maintenance
Instructions
Service Sink Faucets
w/ Vacuum Breaker
Deutsch:
Installations- und
Wartungsanleitungen
Español:
la Instalación y las
Instrucciones de
Mantenimiento
Français:
les Instructions
d'Installation et
d'Entretien

Werbung

Inhaltsverzeichnis
loading

Inhaltszusammenfassung für T&S B-2271

  • Seite 1 Installation and Maintenance Instructions Limited One Year Warranty T&S warrants to the original purchaser (other than for purposes of resale) that such product is free from defects in material and workmanship for a period of one (1) year from the date of purchase. During this one-year warranty period, if the product is found to be defective, T&S shall, at its options, repair and/ or replace it.
  • Seite 2: Exploded View

    Exploded View apply loctite #680 * Some items are listed for instructional purposes and may not be sold as separate parts.
  • Seite 3 Part Number Guide Service Sink Faucet Assemblies Asm, Base Faucet B0674RGH Body, Faucet Asm, Flange Coupling 002893-40 Washer, Coupling Flange 001019-45 Nipple, Close 1/2 HWL 002534-25 Asm, Eterna LH Spindle 002713-40 Asm, Eterna RH Spindle 002714-40 Asm, Bonnet - Cold 005959-40 Asm, Bonnet - Hot 005960-40...
  • Seite 4: General Instructions

    General Instructions Spout Installation 1. Remove no.6 from both sides of no.1. 2. Apply Loctite #680 to threads of no.4 and no.11. 3. Insert no.10 and rotate into no.1 until tight with no.11 facing front of sink. Thread no.11 into no.10. 4.
  • Seite 5: Instrucciones Generales

    Instrucciones Generales Instalación Caño: 1. Remuéva la parte No.6 de ambos lados de la parte No.1. 2. Aplique Loctite #680 a las roscas de las partes No.4 y No.11. apriete con la parte 3. Inserte la parte No.10 y gire dentro de la parte No.1 hasta que No.11 orientada hacia el frente del lavatorio.
  • Seite 6: Instructions Générales

    Instructions Générales L’Installation Le Bec: 1. Enlever Nº.6 de chaque côté de Nº.1. 2. Appliquer Loctite #680 aux filets de Nº.4 et Nº .11. 3. Insérer Nº.10 et tourner dans Nº.1 jusqu’il etre bien serrer avec Nº.11 vers la face de l’évier. Insérer Nº.11dans Nº.10. 4.
  • Seite 7: Allgemeine Anleitungen

    Allgemeine Anleitungen Installation des Wasserhahns: Entfernen Sie Nr. 6 von beiden Seiten der Nr. 1. Tragen Sie Loctite #680 zu den Gewinden von Nr. 4 und Nr.11 auf. Führen Sie Nr. 10 ein, und drehen Sie es in Nr. 1 bis dieses fest ist, und mit der Vorderseite in Richtung des Beckens zeigt.
  • Seite 8 RELATED T&S BRASS PRODUCT LINE B-0657 Service Sink Faucet B-0669 Service Sink Faucet T&S BRASS AND BRONZE WORKS, INC. A firm commitment to application-engineered plumbing products 2 Saddleback Cove, P.O. Box 1088, T & S Brass-Europe Travelers Rest, SC 29690 ‘De Veenhoeve’...
