10
Using an appropriately sized drill bit for the mounting surface
and screw type, drill the holes.
11 Remove the template from the mounting surface.
12 Connect the speaker wires while observing correct polarity.
You can use this table as a reference:
Wire color
Gray
Gray with black
White
White with black

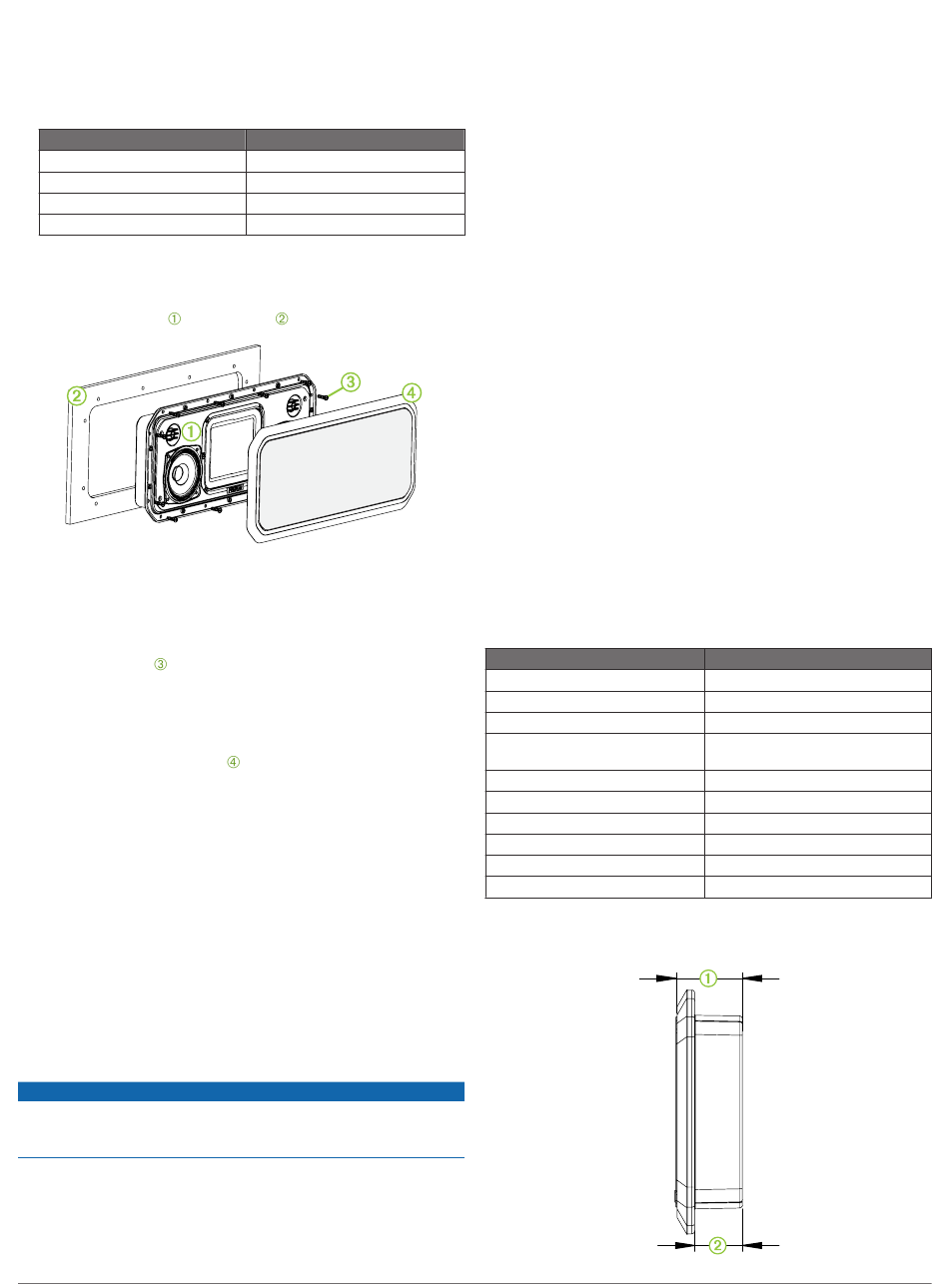

For best results, use standard spade connectors (not
included) on the source wires to connect to the speaker
wires.
13
Place the speaker in the cutout
14
If there is a concern that water may enter the mounting
surface around the edges of the speaker, apply marine
sealant around each of the screw holes and between the
stereo and the mounting surface (optional).
15
Secure the speaker to the mounting surface using the
included screws , or screws appropriate for the depth of the
mounting surface.
NOTE: Do not over tighten the screws, especially if the
mounting surface is not flat.
16
With the FUSION logo in the correct orientation for your
installation, press the grille
of the connectors snap into place.
Speaker Information
Registering Your RV-FS402
Help us better support you by completing our online registration
today.
• Go to www.fusionentertainment.com.
• Keep the original sales receipt, or a photocopy, in a safe
place.
Cleaning the Speaker
NOTE: This speaker is rated IP65 for protection in the harsh
marine environment. It is not designed to withstand high
pressure water spray, which may occur when you wash down
your boat or RV. Failure to carefully spray-clean the boat or RV
may damage the product and void the warranty.
Do not use harsh or solvent-based cleaners on the speaker.
Using such cleaners may damage the product and void the
warranty.
1
Clean all salt water and salt residue from the speaker grille
with a damp cloth soaked in fresh water.
2
Use a mild detergent to remove a heavy buildup of salt or
stains.
Installation Instructions
Polarity
Right positive (+)
Right negative (-)
Left positive (+)
Left negative (-)
.
frame onto the speaker until all
NOTICE
Troubleshooting
Before you contact your FUSION dealer or service center, you
should perform a few simple troubleshooting steps to help
diagnose the problem.
If the FUSION speaker has been installed by a professional
installation company, you should contact the company so the
technicians can assess the problem and advise you about
possible solutions.
There is no sound coming from the speakers
• Verify that all connections from the source device and/or the
amplifier are connected correctly to the speaker terminals.
The system lacks bass or high frequencies
• Verify that the correct wire polarity is observed between the
source and speakers.
The wires should be connected positive to positive and
negative to negative.
• Verify that the speakers are attached firmly to the mounting
surface.
The audio is distorted
• Verify that the source volume is not too loud for the speaker,
and reduce the volume if necessary.
• Verify that the panels surrounding the speaker on the vessel
are not rattling.
• Verify that the source device and/or the amplifier are
connected to the speaker terminals correctly.
• If the speaker is connected to an amplifier, verify that the
input level of the amplifier is matched to the output level of
the stereo. For more information, see the manual for the
amplifier.
Specifications
Specification
Tweeter type
Max. power (Watts)
RMS power (Watts)
Amplifier power rating
recommendation
Efficiency (1 W/1 m)
Frequency response
Min. mounting depth (clearance)
Impedance
Operating temperature range
Storage temperature range

Dimension Drawings

Side View
Measurement
Soft dome
100 W
25 W
5 to 50 W RMS, playing music
86 dB
67 Hz to 20 kHz
41 mm (1.61 in.)
4 ohms per speaker connection
From 0 to 50°C (from 32 to 122°F)
From -20 to 70°C (from -4 to 158°F)
3
