EXPO T50 TEAK-INOX
EXPO T50 TEAK-INOX EP
01
80
N
HOLE PATTERN
11
10
04
220-240V
N N N
N
L L
L L
ACCESSORY SET
3x
3x
1x
06
12
05
DIN 911/2,5
07
08
09
02

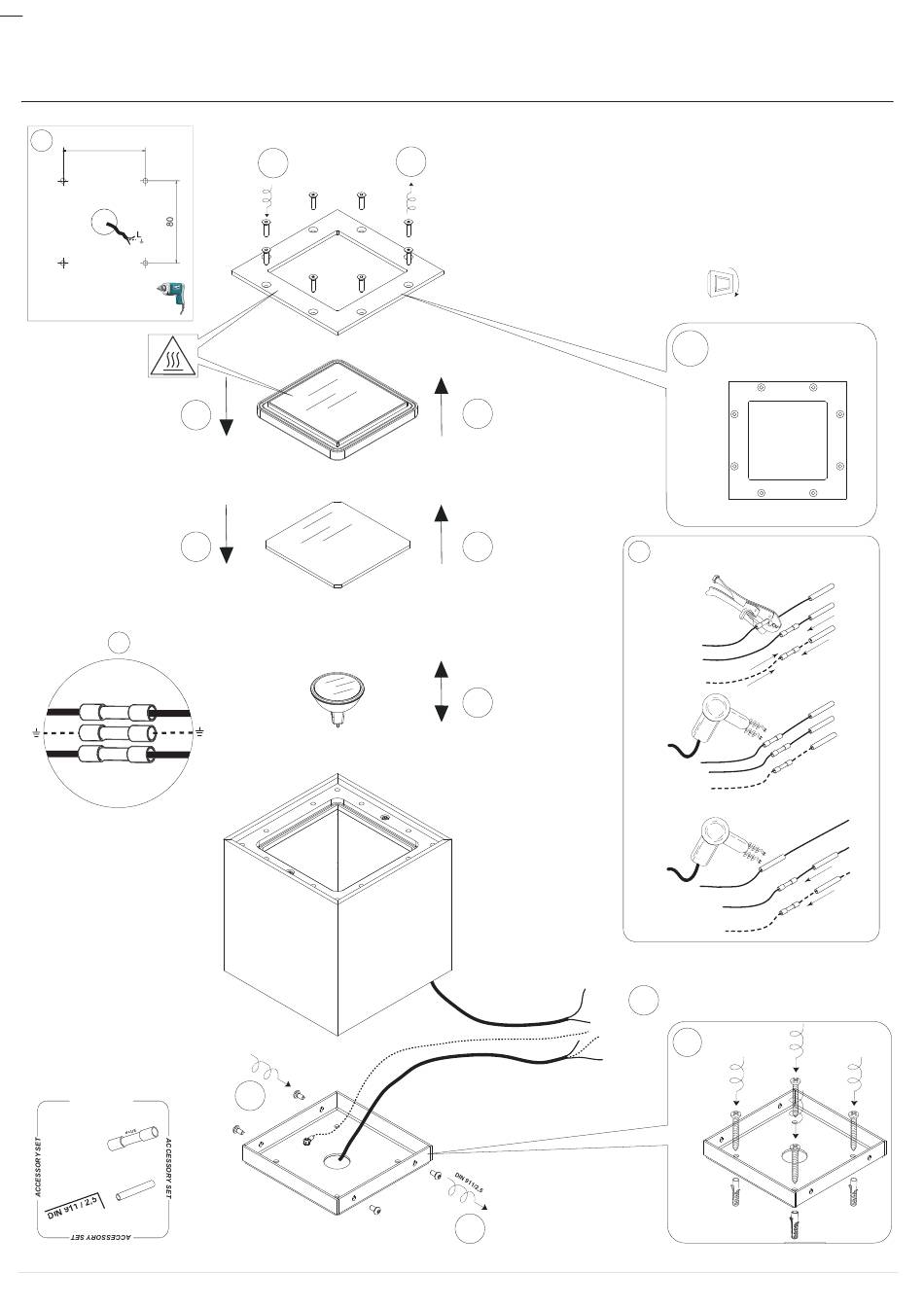

INSTALLATION INSTRUCTIONS - PART A
01. MAKE HOLE PATTERN
02. REMOVE THE GROUND FIXATION
03. FIT THE GROUND FIXATION ON THE GROUND
04. MAKE THE ELECTRICAL CONNECTION
05. PLACE THE BODY EN FASTEN THE SCREWS
06. REMOVE THE COVER PLATE
07. REMOVE THE GLASS WITH THE RUBBER GASKET
08. REMOVE THE SECOND GLASS
09. INSERT/REPLACE LAMP
10. PLACE THE SECOND GLASS
11. PLACE THE GLASS WITH THE RUBBER GASKET
12. PLACE THE COVER PLATE
13. SWITCH ON
OFF
ON
FIXATION SEQUENCE
14
FOLLOW nr. 1-16
05
13
04
12
16
08
11
03
WATERPROOF CONNECT
04
A
TRANSFO
B
HEAT
TRANSFO
C
HEAT
TRANSFO
04
220-240V
03
DELTA LIGHT nv BELGIUM
01
09
06
14
10
02
15
07
220-240V
220-240V
last update : 23/12/2009
