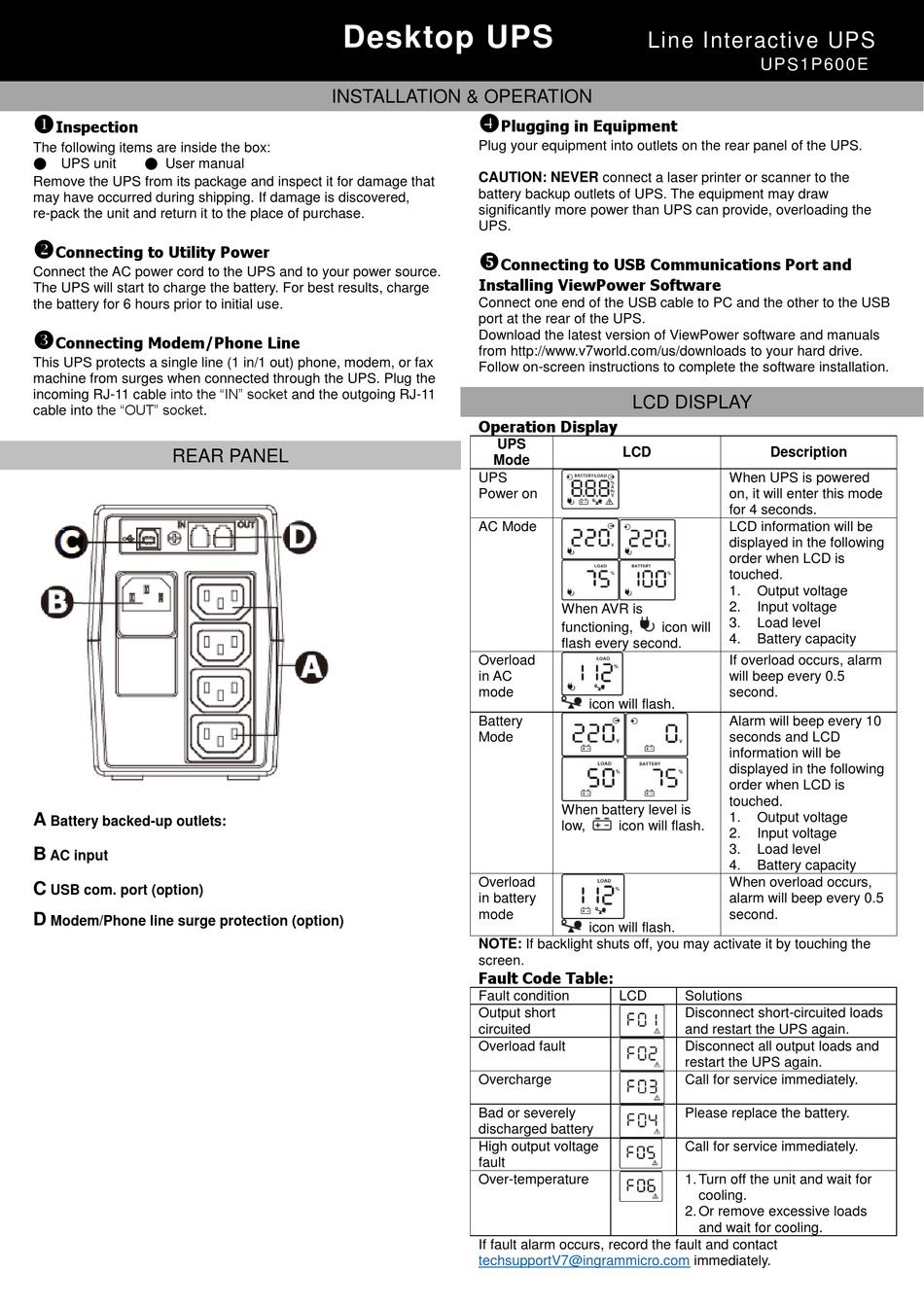

Voltronic UPS1P600E Gebrauchsanweisung


Inspection
The following items are inside the box:
● UPS unit ● User manual
Remove the UPS from its package and inspect it for damage that
may have occurred during shipping. If damage is discovered,
re-pack the unit and return it to the place of purchase.

Connecting to Utility Power
Connect the AC power cord to the UPS and to your power source.
The UPS will start to charge the battery. For best results, charge
the battery for 6 hours prior to initial use.

Connecting Modem/Phone Line
This UPS protects a single line (1 in/1 out) phone, modem, or fax
machine from surges when connected through the UPS. Plug the
incoming RJ-11 cable into the "IN" socket and the outgoing RJ-11
cable into the "OUT" socket.
REAR PANEL
A
Battery backed-up outlets:
B
AC input
C
USB com. port (option)
D
Modem/Phone line surge protection (option)
Desktop UPS
INSTALLATION & OPERATION

Plugging in Equipment
Plug your equipment into outlets on the rear panel of the UPS.
CAUTION: NEVER connect a laser printer or scanner to the
battery backup outlets of UPS. The equipment may draw
significantly more power than UPS can provide, overloading the
UPS.

Connecting to USB Communications Port and
Installing ViewPower Software
Connect one end of the USB cable to PC and the other to the USB
port at the rear of the UPS.
Download the latest version of ViewPower software and manuals
from http://www.v7world.com/us/downloads to your hard drive.
Follow on-screen instructions to complete the software installation.
Operation Display
UPS
Mode
UPS
Power on
AC Mode
Overload
in AC
mode
Battery
Mode
Overload
in battery
mode
NOTE: If backlight shuts off, you may activate it by touching the
screen.
Fault Code Table:
Fault condition
Output short
circuited
Overload fault
Overcharge
Bad or severely
discharged battery
High output voltage
fault
Over-temperature
If fault alarm occurs, record the fault and contact
techsupportV7@ingrammicro.com
Line Interactive UPS
LCD DISPLAY
LCD
When UPS is powered
on, it will enter this mode
for 4 seconds.
LCD information will be
displayed in the following
order when LCD is
touched.
1.
2.
When AVR is
3.
functioning, icon will
4.
flash every second.
If overload occurs, alarm
will beep every 0.5
second.
icon will flash.
Alarm will beep every 10
seconds and LCD
information will be
displayed in the following
order when LCD is
touched.
When battery level is
1.
low, icon will flash.
2.
3.
4.
When overload occurs,
alarm will beep every 0.5
second.
icon will flash.
LCD Solutions
Disconnect short-circuited loads
and restart the UPS again.
Disconnect all output loads and
restart the UPS again.
Call for service immediately.
Please replace the battery.
Call for service immediately.
1. Turn off the unit and wait for
cooling.
2. Or remove excessive loads
and wait for cooling.
immediately.
UPS1P600E
Description
Output voltage
Input voltage
Load level
Battery capacity
Output voltage
Input voltage
Load level
Battery capacity
