Delite 720 Bedienungsanleitung

On/Off-Button
Camera-Button
MicroSD-
Card-Slot
Reset
Lens
Mini-USB
Microphone
feAtUReS | AUSStAttUNg
Photo 3 Megapixel
Resolution / Fotoauflösung
Cam 1280 x 720 Pixel
Frames/sec / Bilder pro Sekunde 30 fps / 30 Bilder/sek
Recording time / Aufnahmezeit up to 1 hours / bis zu 1 Std.
Microphone / Mikrofon Built in / Eingebaut
Memory / Speicher
MicroSD – not included / nicht enthalten
Suitable for 1GB – 16GB
Power supply / Stromversorgung Plug&Play & load per USB
ca. 20 Gr.
Weight & dimensions / Gewicht & Maße
50 mm x 35 mm x 14 mm
Compatibility / Kompatibilität PC / Mac
MANUAL
1. SwitchiNg oN the DeLite 720 The DELITE 720 is supplied with a partly
charged battery. Please charge the battery fully before using the camera.

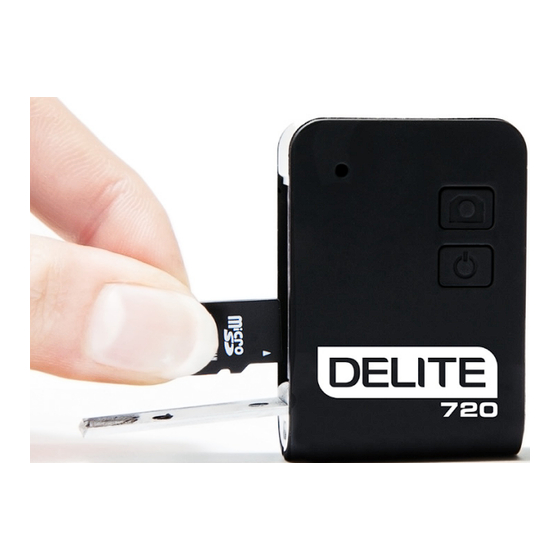

Please insert your MicroSD memory card in the appropriate slot (see diagram).
If you hear a click, the card has been inserted correctly.
Now press the on/off button . A yellow LED will light up when the DELITE 720 is
ready to use.
2. RecoRDiNg viDeo To record a video, press the
button until the LED blinks
in rapid succession. Recording will then begin. The LED will blink repeatedly during
recording. To end the recording, press the button. The LED will now stay lit. When
not in use, the DELITE 720 will switch off automatically after 30 seconds..
3. tAkiNg photoS Please switch on the camera as described in Point 1 and press
the button . The yellow LED will blink once, indicating that your DELITE 720 is
now in photo mode. Press the button once to take a photograph.
4. USe AS A webcAM Connect the DELITE 720 to your computer with the USB
cable provided and press the button . The camera will be detected as a drive.
Now press and hold the top button and then press the button below it (keep
both buttons pressed for approx. 2 seconds). The DELITE 720 will be identified as a
webcam automatically.
Due to different system requirements for hardware and software, you may need
to configure additional settings. (The webcam function is not compatible with
Windows7/32bit or Apple products).
pLeASe ALSo RefeR to the NoteS SectioN
viewiNg photoS AND viDeoS To view your photos and video recordings, connect
the DELITE 720HD to your computer using the USB cable provided.
Press the button . The camera will be detected as a drive and the LED will light up
in yellow/red. The DCIM directory will be displayed. You will find your photos and
videos in the 100Media folder in this directory. Double-click a file (jpeg or mov) to
open the photo or video.
chARgiNg the bAtteRy The battery will begin to charge as soon as the DELITE
720 is connected to your computer via the USB cable provided. The battery will be
fully charged after 2 hours and will finish charging automatically, which means the
battery cannot be overcharged.
please do not leave the camera unattended while it is charging!
USAge Strictly observe legal regulations. Users are solely responsible for proper
usage. Please respect the privacy of third parties.
Kumuju GmbH is not liable for the lost of photos or videos caused
by damage to the DELITE 720 or its accessories.
NoteS
Supported operating systems: Windows XP, Windows VISTA, Windows7* and MacOS*
(* No webcam function with Windows7 32 Bit and MacOS)
You can use 1GB-32 GB MicroSD or MicroSDHC cards in the Class4 category or
faster.
If the camera no longer responds and the LED remains constantly on, remove the
memory card and use a needle or paperclip to press the reset button on the left side
of the camera casing and restart the camera.
Please store the operating instructions carefully. They contain important information
on how to use and maintain your DELITE 720.
coNtAct
www.kumuju.com
For technical questions or requesting support: info@kumuju.com
For questions on the product or its accessories: info@kumuju.com
KUMUJU GmbH, Schrammsweg 20a, D-20249 Hamburg, Germany
EMV-Directive 2004/108/EG, WEEE-Reg.-No. DE 27219954
DeLite 720
hD-viDeocAMeRA
beDieNUNgSANLeitUNg MANUNAL
