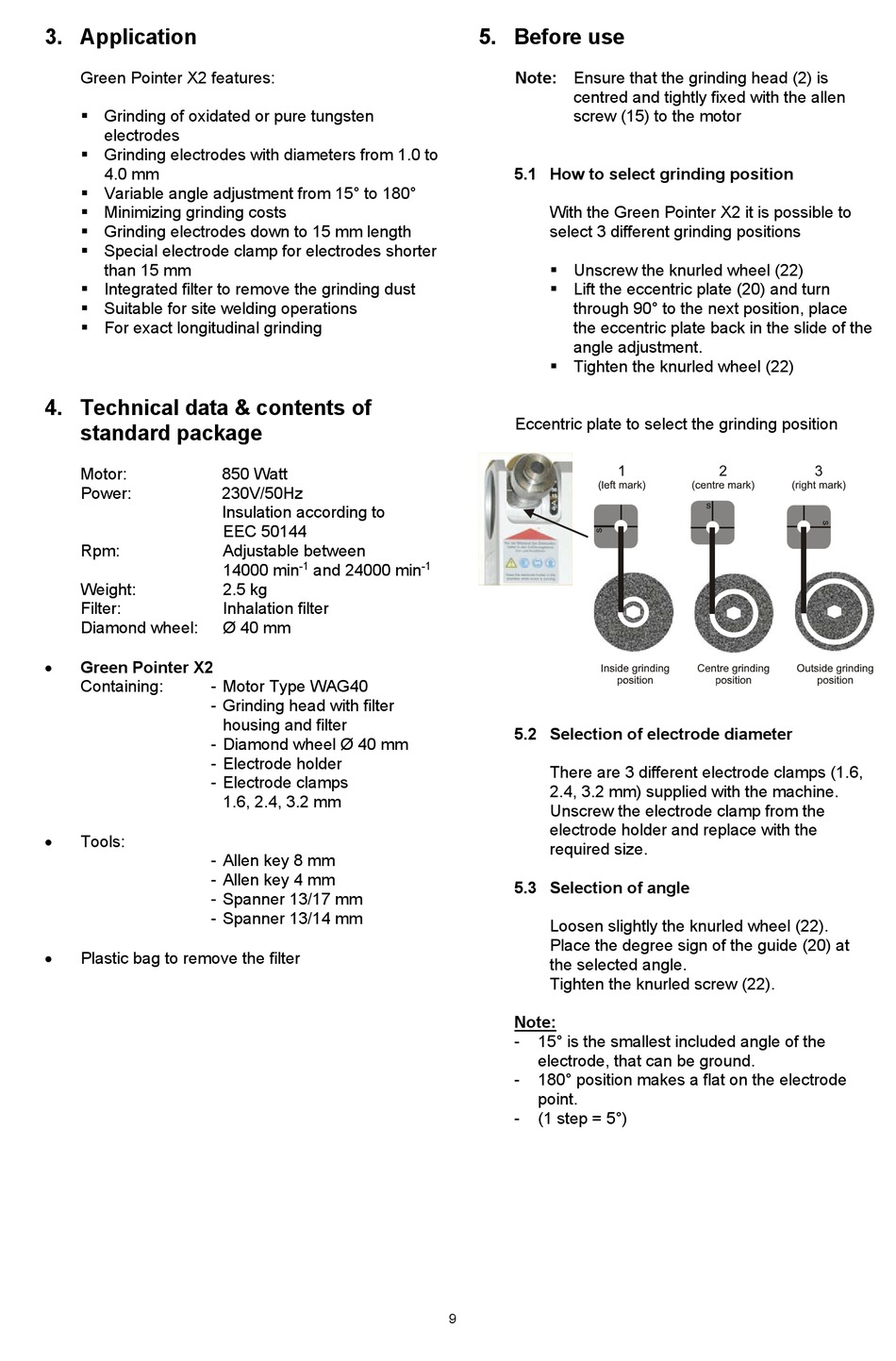

3. Application
Green Pointer X2 features:
 Grinding of oxidated or pure tungsten
electrodes
 Grinding electrodes with diameters from 1.0 to
4.0 mm
 Variable angle adjustment from 15° to 180°
 Minimizing grinding costs
 Grinding electrodes down to 15 mm length
 Special electrode clamp for electrodes shorter
than 15 mm
 Integrated filter to remove the grinding dust
 Suitable for site welding operations
 For exact longitudinal grinding
4. Technical data & contents of
standard package
Motor:
Power:
Rpm:
Weight:
Filter:
Diamond wheel:

Green Pointer X2
Containing: - Motor Type WAG40
- Grinding head with filter
- Diamond wheel Ø 40 mm
- Electrode holder
- Electrode clamps

Tools:
- Allen key 8 mm
- Allen key 4 mm
- Spanner 13/17 mm
- Spanner 13/14 mm

Plastic bag to remove the filter
850 Watt
230V/50Hz
Insulation according to
EEC 50144
Adjustable between
14000 min -1 and 24000 min
2.5 kg
Inhalation filter
Ø 40 mm
housing and filter
1.6, 2.4, 3.2 mm

5. Before use

Note: Ensure that the grinding head (2) is
centred and tightly fixed with the allen
screw (15) to the motor
5.1 How to select grinding position
With the Green Pointer X2 it is possible to
select 3 different grinding positions
 Unscrew the knurled wheel (22)
 Lift the eccentric plate (20) and turn
through 90° to the next position, place
the eccentric plate back in the slide of the
angle adjustment.
 Tighten the knurled wheel (22)
Eccentric plate to select the grinding position
-1
5.2 Selection of electrode diameter
There are 3 different electrode clamps (1.6,
2.4, 3.2 mm) supplied with the machine.
Unscrew the electrode clamp from the
electrode holder and replace with the
required size.
5.3 Selection of angle
Loosen slightly the knurled wheel (22).
Place the degree sign of the guide (20) at
the selected angle.
Tighten the knurled screw (22).
Note:
- 15° is the smallest included angle of the
electrode, that can be ground.
- 180° position makes a flat on the electrode
point.
- (1 step = 5°)
