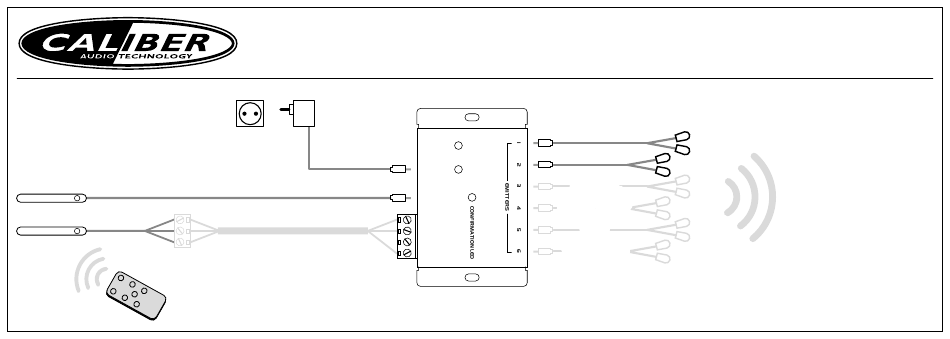

INFRARED RECEIVER
OR
EXTEND THE LENGTH OF THE IR-CABLE
UP TO 18 METERS (CABLE NOT INCLUDED)
+12V DC
= ORANGE
GROUND = BLUE
STATUS
= PURPLE
SIGNAL
= YELLOW
STATUS
+12V DC
POWER
+12V DC
OPTIONAL
OPTIONAL
IR RECEIVER
(EXTRA 'IR EYE'
(EXTRA 'IR EYE'
+12V DC
SOLD
SOLD
GROUND
STATUS
SEPERATELY)
SEPERATELY)
SIGNAL
IR HIde AwAy
Infrared extender kit
INFRARED EMITTER
1
(Can send signals up to 6 dual emitters.
2
(3)
(4)
(5)
LED indicator for conformation
(6)
W W W. C A L I BER . NL
CALIBER HEAd OffICE • The Netherlands • Fax: +31 (0)416 69 90 01 • E-mail: info@caliber.nl
Compatible with
DVD Player, set top box,
mediabox, etc.
Controls up to 12 devices
Kit includes 2 dual emitters)
12V DC Power supply
(Adapter included)
Slim IR receiver with
3 meter cable
(Extendable up to 18 meters)
Metal case for
interference shielding
