04
05
GB
Magnetic
mounting plates
Modular - 2 panels
2
88x236 cm
Modular - 2 panels
4
198x196 cm
Modular - 3 panels
4
88x354 cm
Modular - 3 panels
8
198x294 cm
Modular - 4 panels
4
88x472 cm
Modular - 4 panels
8
198x392 cm
•
The wall must be smooth (no bumps or dents) and free of obstacles.
•
Magnetic surface of the strip should be completly in contact with back of the
PET -felt panel to have it's full holding power. Always mount magnets in the
same flat plane. With bumpy walls use spacers (available in most D.I.Y. shops) to
put the magnets in the same plane. See image 1.
•
Check flatness between strips by using a level. Adjust with spacers and repeat
check until all surface are in the same plane. See image 2.
•
Provided screws and plugs are suited for solid stone walls. In case of other walls
make sure you choose suited mounting materials! Keep in mind that the screw
head should fit deep enough into the steel plate, because of the magnet!
Image 2
Magnetic
Screws
Dowels
mounting strips
7
22
22
12
40
40
7
30
30
12
56
56
14
44
44
24
80
80
Image 1
- Side view -
Opvulplaatje

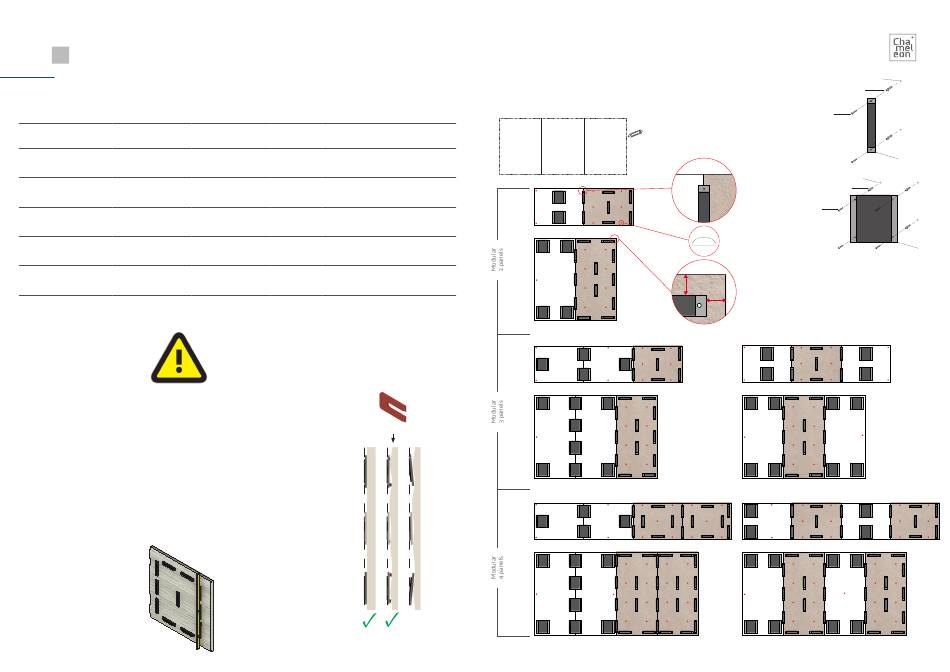

Placement of magnetic plates and strips
Start by marking out the positioning of the panels on the back wall.
Ensure that the seams have been fully marked out. This allows the
strips to be fixed in the correct position. The strips on the seams are
key to ensure a smooth transition.
Self adhesive
spacers
Marking panels
8
9
10
10
16
18
X
2x Ø 6mm
2x dowel 6mm
2x screw 4x40
4x Ø 6mm
4x dowel 6mm
4x srew 4x40
± 50 mm
Magnetic strip
50x300mm
Magnetic plate
300x300mm
We make it visible
