23780/85/90 Microphone
»Fishing Pole«
- For manual positioning of microphones over distances of
-
up to 1.5 m or 3.2 m
- Easy and intuitive to use, visually appealing and very practical
- A microphone cable (max. ø 6 mm) can be placed inside the tube
- Ideal for mobile use: it is light and collapsible to a small size
- Carrying case included
- Excellent handling and use through effective clamp elements:
-
The locking force of each clamping lever is individually
-
adjustable;
-
quiet telescoping in/out of the tube; it doesn't rattle
- Length steplessly adjustable:
-
Art. 23755: 640 - 1530 mm, Art. 23765: 1070 - 3230 mm
- Threaded Connector: 3/8" or 5/8" knurled washer included
Thank you for choosing this product. The instructions provide directions to all of
the important set up and handling steps. We recommend you keep these
instructions for future reference.
SAFETY and HANDLING and USAGE NOTES
- Load bearing weight: Microphone
- The handling of a fishing pole microphone can bear significant risks for:
-
a. operator, b. persons and c. objects within reach (structures, lamps etc.).
-
Careful handling is indispensable.
- We especially warn against the risks associated with lightening and electrical
-
cables.
- Other fishing pole microphones that are nearby may also be a source of danger,
-
e.g. the risk of tripping if it is not properly stowed. After use, the tube combination
-
should be retracted and securely stored away immediately.
- To avoid the unintended extension or retraction of the tube, only one clamp
-
element is always in the open position and the tube can be extended or
-
retracted.
- All clamping elements must be in a closed position during use, transport and
-
storage.
- When using an internal cable, please ensure that the cable opening is not
-
damaged. Cable is not included with the delivery. Because only a segment of
-
the users work with cables, the rubber cap does not come with a hole in it, if
-
needed cut a hole into the thin wall (ø 12 mm) of the cap.
-
NOTE: Please protect yourself from the risk of cuts.
- The operator must be able to use the fishing pole microphone in a responsible
-
manner.
- Attach the microphone after the tube has been extended - and remove the
-
microphone prior to retracting the tube.
- The aluminum Tubes are very strong and sturdy. However, improper use and
-
excessive force can result in damage to the tubes. Damaged tubes may not be
-
used in any case, because:
-
a. possible sharp edges can result in painful injuries for the operators or third
-
parties,
-
b. the perfect functioning of the pole is no longer guaranteed.
- For cleaning use a lightly damp cloth and a non-abrasive agent.
INSTRUCTION MANUAL

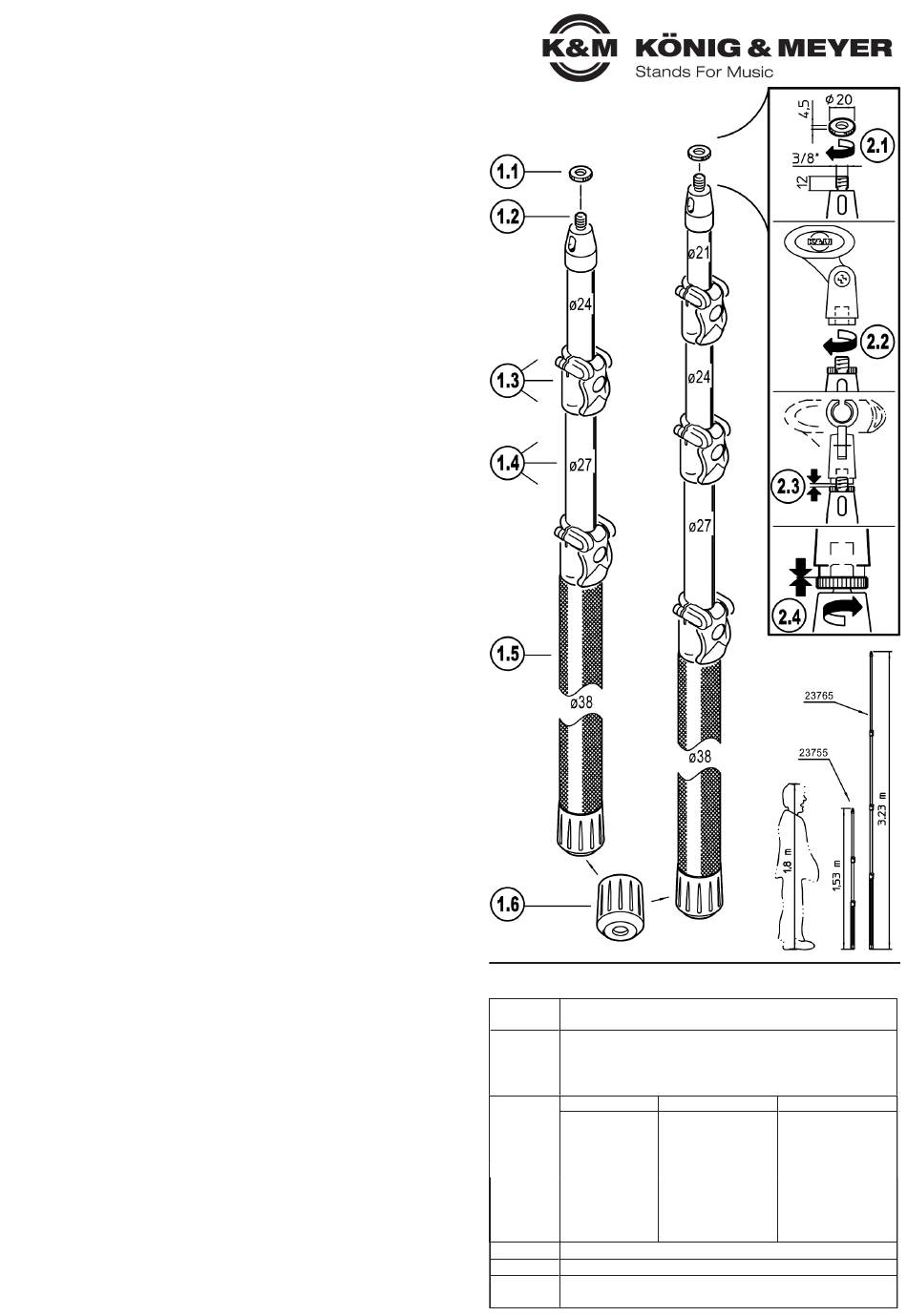

1. COMPONENTS
- The microphone fishing pole is completely pre-assembled and ready for use.
- Please carry out a visual inspection, whether - as far as visible - all parts are
-
present and in good condition:
-
1.1 Knurled washer, 1.2 Thread, 1.3 Tension clamps, 1.4 Tubes,
-
1.5 Foam rubber handle, 1.6 End cap
2. MIKING
NOTE: When setting up the microphone fishing pole, attaching the microphone is
NOTE:
the last operation - when removing it, the first.
2.1 Turn knurled washer 1.1 to the microphone mounting thread 1.2 until it stops.
2.2 Screw the microphone clip (see chapter ACCESSORIES) onto the thread.
2.3 Align the microphone clip and allow some space to the knurled washer if
2.3
necessary.
2.4 Turn the knurled washer 1.1 upwards and tighten with it microphone clip
2.4
(prevents unintentional twisting of the microphone).
KÖNIG & MEYER GmbH & Co. KG
Kiesweg 2, 97877 Wertheim, www.k-m.de
23755-300-55 / 23755-500-55 / 23765-300-55 / 23765-500-55 Rev.1a 7/20
Art. 27355
640-1530 mm
1070-3230 mm
TECHNISCHE DATEN
Variants
»Fishing Pole« 1.5 m: 23755-300-55 - 3/8" / 23755-500-55 - 5/8"
»Fishing Pole« 3.2 m: 23765-300-55 - 3/8" / 23765-500-55 - 5/8"
Material
- Telescopic tubes, microphone sleeve with thread: Aluminum
- Knurled washer: Steel
- Tension clamps: PA-6
- End cap: TPE
Dimensions
Range:
Handle:
Tubes:
Micro connection: 3/8" or rather 5/8"
Cable, inside:
Packing size:
Weight:
Cardboard:
Load
Microphones, max. 1 kg
Carry case
with zipper, neck loop, PE-foil, linen-optics
Accessories
Microphone clips 85035, 85050, 85055, 85060, 85070
(optional)
Popkiller 23956 (ø 130 mm), 23966 (ø 200 mm)
Art. 27365
Art. 27355 - 1.5 m
Art. 27365 - 3.2 m
640 - 1530 mm
1070 - 3230 mm
ø 38 x 415 mm
ø 38 x 785 mm
ø 30 - 27 - 24 mm
ø 30 - 27 - 24 - 21
3/8" or rather 5/8"
max. ø 6 mm (1/4")
max. ø 6 mm (1/4")
45 x 42 x 635 mm
45 x 42 x 1070 mm
0.5 kg
0.9 kg
680 x 65 x 65 mm
1045 x 65 x 65 mm
