215
(8 15/32")
72,5
70
(2 55/64")
(2 3/4")
Ø30
(Ø1 3/16")
72,5
(2 55/64")
Ø30
(Ø1 3/16")
28
(1 7/64")
*MIN. 28 mm
(min. 1 7/64")
* Verificare gli ingombri e rispettare le
indicazioni di profondità
/
Check dimensions and follow depth
indications
DUAL FLUSH TECE CISTERN
TECE BOX
TECE BOX BASIC
TECE BOX PLUS
TECE BOX PROFIL
PLA13
_ REV14
PLA13/HYDROPLATE
AISI 316/L STAINLESS STEEL

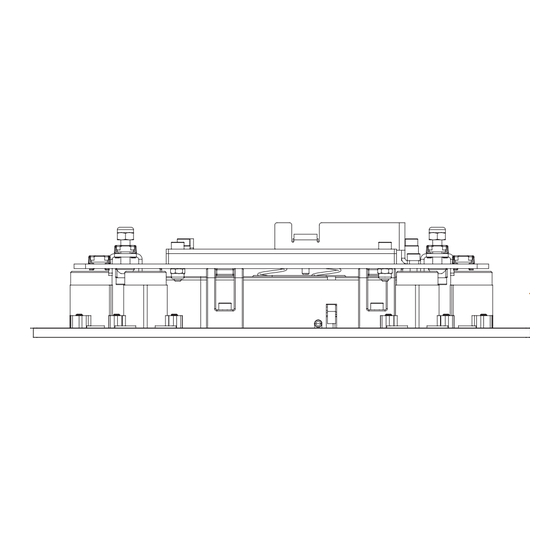

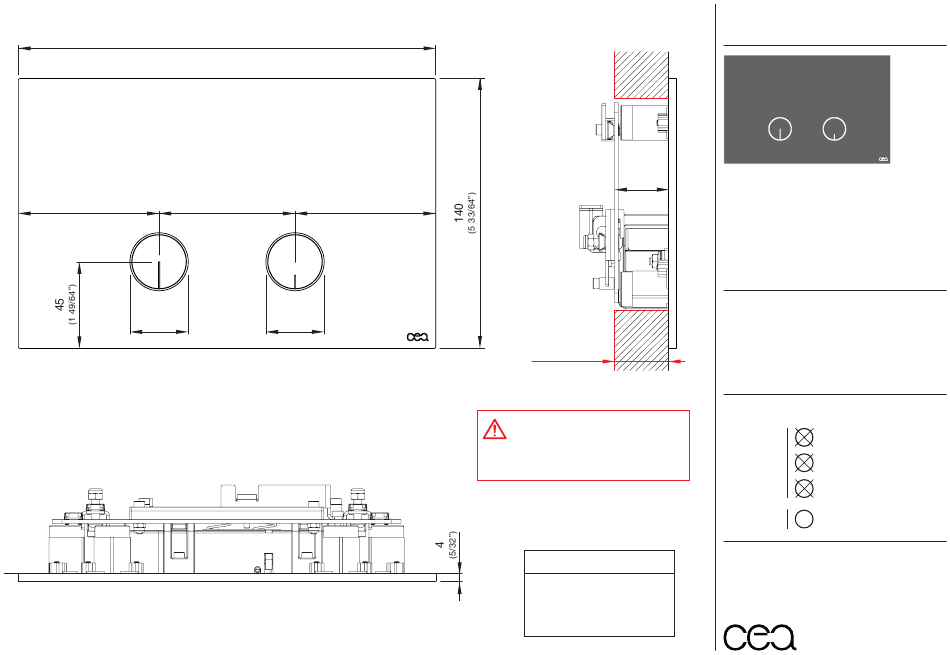

Placca per cassetta a doppio flusso Tece con pulsanti a filo
Plate for dual flush Tece cistern with flush buttons
DESIGN
NATALINO MALASORTI
MANUTENZIONE / MAINTENANCE
acido clorico e muriatico
HCl
cloric and muriatic acid
acido fluoridrico
NON UTILIZZARE
HFl
DO NOT USE
hydrofluoric acid
ipoclorito di sodio
NaClO
chlorine bleach
sapone a PH neutro
UTILIZZARE
PH
TO USE
7
neutral PH soap
Questi disegni sono proprietà di CEADESIGN SRL s.u. pertanto non potranno
essere utilizzati e/o comunicati a terzi, anche in forma parziale, senza preventiva
autorizzazione. CEADESIGN SRL s.u. si riserva il diritto di apportare modifiche ai
disegni al fine di migliorare il prodotto.
CEADESIGN SRL s.u. has the property rights on these drawings, therefore they
cannot be used and/or transferred to third party, even in partial form, without any
prior authorization. Furthermore CEADESIGN SRL s.u. reserves the right to apply
any change to these drawings in order to upgrade the product.
