Field of application:
The devices are only suitable for in-house distribution of RF signals! If the
device is used for other purposes, no warranty is given!
Scope of delivery:
1 × Wideband headamplifier
4 × Termination resistors CFA 11-00
1 × Operation instructions

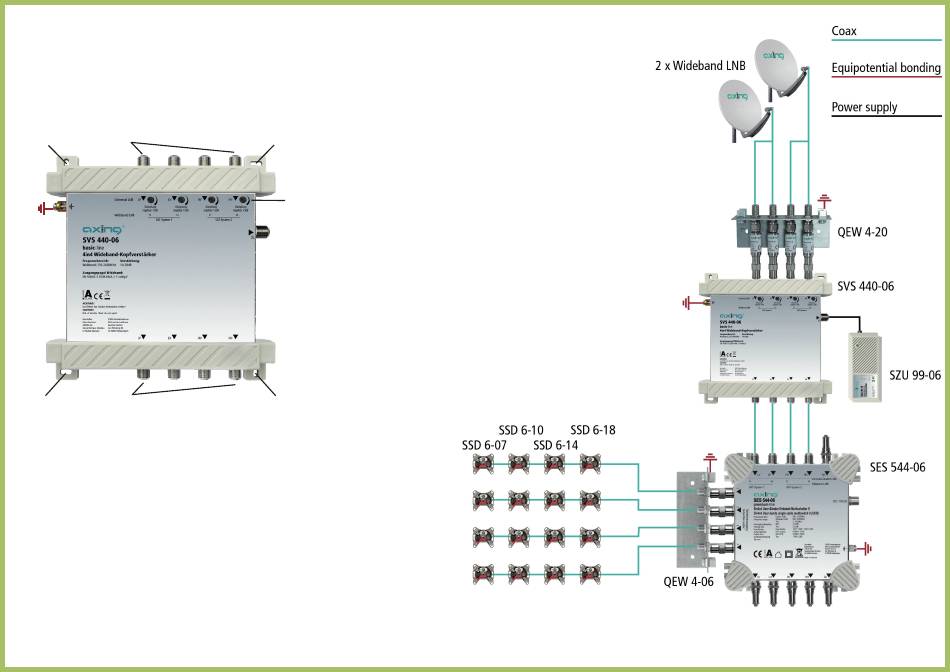

4
2
1
2
5
1.
Equipotential bonding connection
2.
Mounting holes
3.
DC socket
4.
Inputs
5.
Outputs
6.
Attenuators
Equipotential bonding and Mounting:
To avoid dangerous power surges (e.g. risk of fire and danger of life) the
devices must be connected to the equipotential bonding according to
EN 60728-11.
Use the equipotential bonding connection at the device (1).
To connect the outer conductor of the coaxial cable to the equipotential
bonding, use e.g. QEW Earthing angles at the inputs of the device.
Use the included mounting screws and the mounting holes of the
device (2).
Power Supply:
The SVS 440-06 requires an external power supply SZU 99-06 (not included in
delivery).
Use appropriate mounting screws and the mounting holes of the device (2).
RF Installation:
Connect the inputs (4) of the head amplifier to the wideband LNBs of your
SAT reception antenna.
Use highly shielded coaxial cables with F connectors. Suited cables and
plugs can be found in the current AXING catalogue or at www.axing.com.
2
Connect the outputs (5) with the inputs of a singlecable multiswitch.
Level Adjustment:
All SAT input levels can be adjusted (6).
6
3
2
