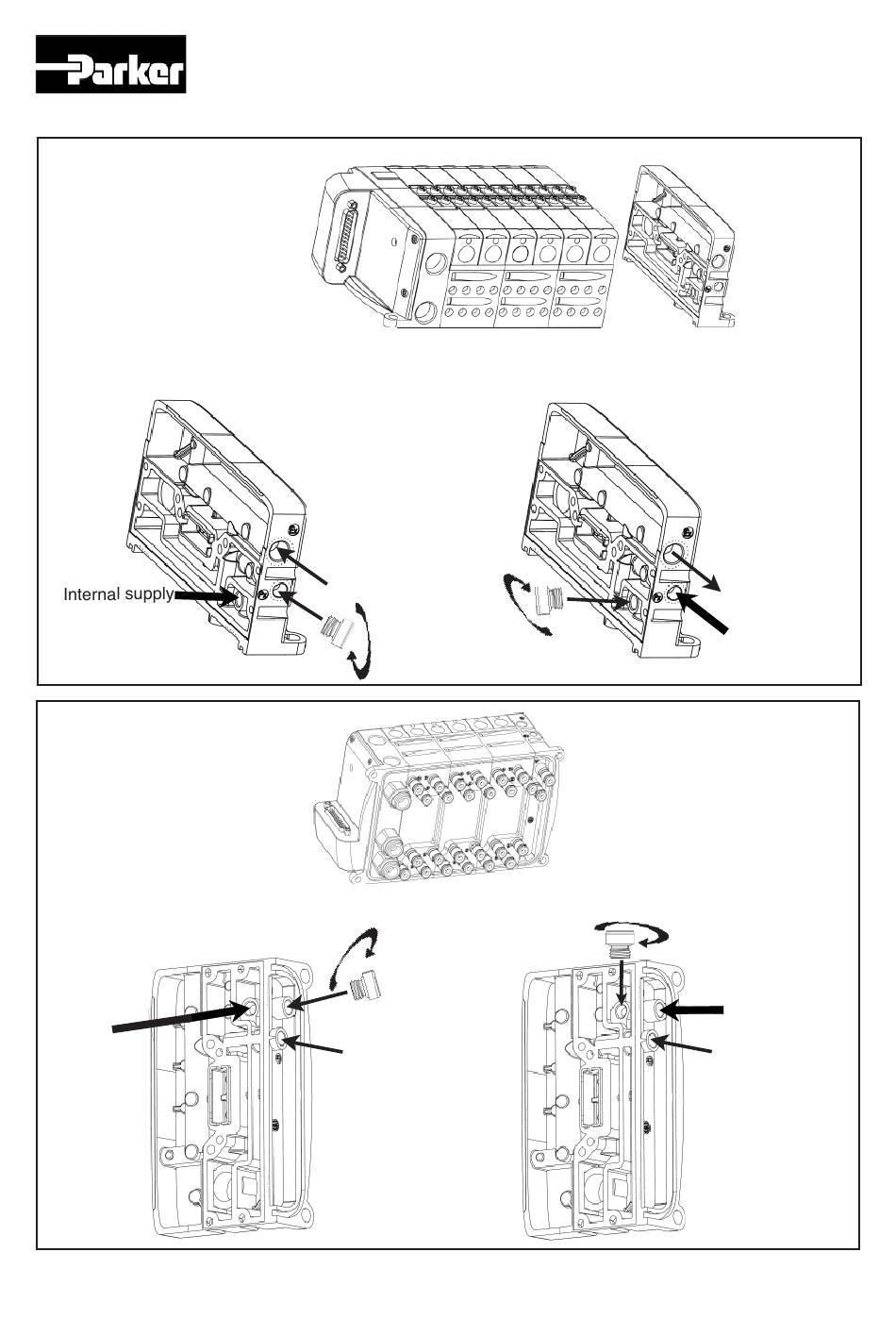

Side ported
Internal solenoids pilot supply
Bottom ported
Internal solenoids pilot supply
Internal
supply
Operating pressure -0.9 to 8.3 bar, with external pilot pressure 6 bar. Solenoid pressure supply 2.7 to 8.3 bar
W930030340111
PSM...AP
Solenoid
exhaust
Plug M7
Plug M7
Solenoid
exhaust
http://www.parker.com/Pneumatic
External solenoids pilot supply
Plug M7
External solenoids pilot supply
Plug M7
Solenoid
exhaust
External Px
M7 port
External Px
M7 port
Solenoid
exhaust
300303401W05 01
Inhaltszusammenfassung für Parker PSM Serie
- Seite 1 Internal solenoids pilot supply Plug M7 External Px Plug M7 Internal M7 port supply Solenoid Solenoid exhaust exhaust Operating pressure -0.9 to 8.3 bar, with external pilot pressure 6 bar. Solenoid pressure supply 2.7 to 8.3 bar http://www.parker.com/Pneumatic 300303401W05 01 W930030340111...
- Seite 2 • Test the system operation for function and leakage. Do not put • Pruebe la operación del sistema verifi cando funcionamiento parker.com ou appeler le 00 800 27 27 53 74 en Europe. into operation until the function is as intended and there is no y fugas.
