Esscom PL-1085 Bedienungsanleitung Seite 42

PL-1085

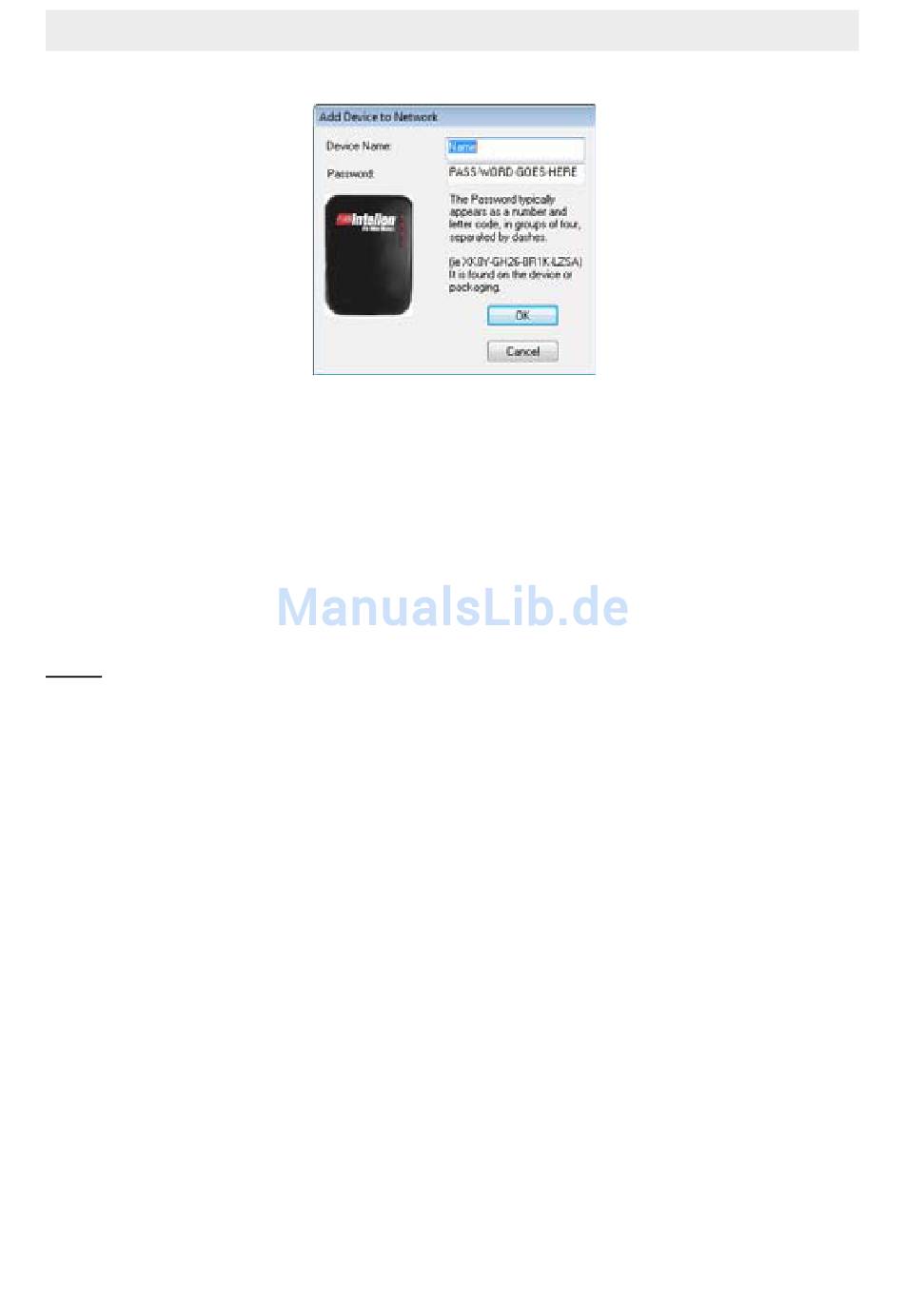

When you click Add, below dialog box will appear :
Now enter both a device name and the password (The password is located at
the bottom label of the device).
A confirmation box will appear if the password was entered correctly and if the
device was found.
• Quality : shows the connection quality rate between the remote plug and the
plug connected to your computer.
• MAC Address : shows the device's MAC address.
Note:
The device must be present on the power line (plugged in) in order for the
password to be confirmed and added to the network. If the device could not be
located, a warning message will be shown.
The Scan button is used to perform an immediate search of the PL-1085
devices connected to the computer. By default the utility automatically scans
every few seconds and updates the display.
42
