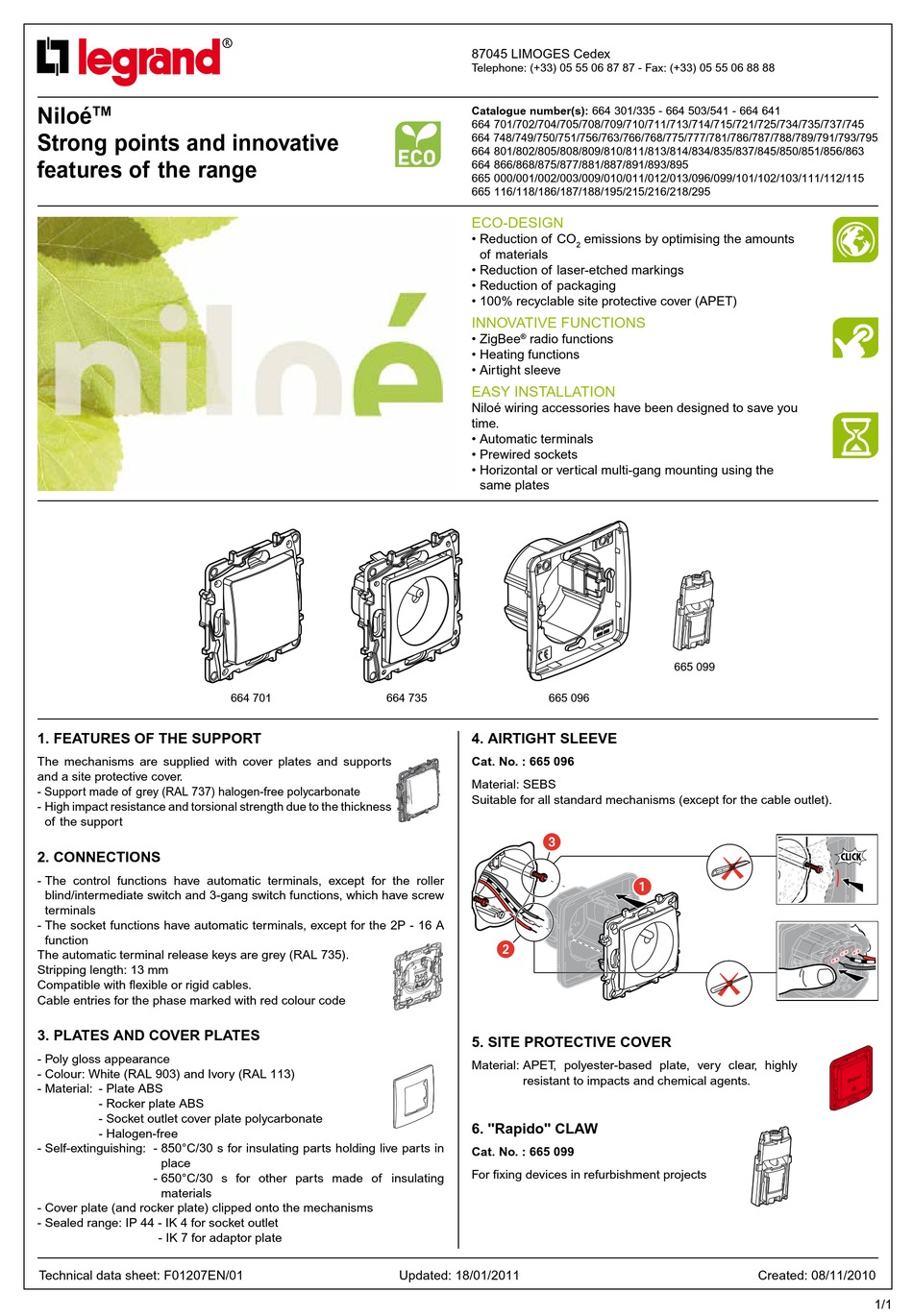

Niloé
TM
Strong points and innovative
features of the range
1. FEATURES OF THE SUPPORT
The mechanisms are supplied with cover plates and supports
and a site protective cover.
- Support made of grey (RAL 737) halogen-free polycarbonate
- High impact resistance and torsional strength due to the thickness
of the support
2. CONNECTIONS
- The control functions have automatic terminals, except for the roller
blind/intermediate switch and 3-gang switch functions, which have screw
terminals
- The socket functions have automatic terminals, except for the 2P - 16 A
function
The automatic terminal release keys are grey (RAL 735).
Stripping length: 13 mm
Compatible with flexible or rigid cables.
Cable entries for the phase marked with red colour code
3. PLATES AND COVER PLATES
- Poly gloss appearance
- Colour: White (RAL 903) and Ivory (RAL 113)
- Material: - Plate ABS
- Rocker plate ABS
- Socket outlet cover plate polycarbonate
- Halogen-free
- Self-extinguishing: - 850°C/30 s for insulating parts holding live parts in
place
- 650°C/30 s for other parts made of insulating
materials
- Cover plate (and rocker plate) clipped onto the mechanisms
- Sealed range: IP 44 - IK 4 for socket outlet
- IK 7 for adaptor plate
Technical data sheet: F01207EN/01
664 701
664 735
Updated: 18/01/2011
87045 LIMOGES Cedex
Telephone: (+33) 05 55 06 87 87 - Fax: (+33) 05 55 06 88 88
Catalogue number(s): 664 301/335 - 664 503/541 - 664 641
664 701/702/704/705/708/709/710/711/713/714/715/721/725/734/735/737/745
664 748/749/750/751/756/763/766/768/775/777/781/786/787/788/789/791/793/795
664 801/802/805/808/809/810/811/813/814/834/835/837/845/850/851/856/863
664 866/868/875/877/881/887/891/893/895
665 000/001/002/003/009/010/011/012/013/096/099/101/102/103/111/112/115
665 116/118/186/187/188/195/215/216/218/295
ECO-DESIGN
• Reduction of CO
emissions by optimising the amounts
2
of materials
• Reduction of laser-etched markings
• Reduction of packaging
• 100% recyclable site protective cover (APET)
INNOVATIVE FUNCTIONS
• ZigBee
radio functions
®
• Heating functions
• Airtight sleeve
EASY INSTALLATION
Niloé wiring accessories have been designed to save you
time.
• Automatic terminals
• Prewired sockets
• Horizontal or vertical multi-gang mounting using the
same plates
665 096
4. AIRTIGHT SLEEVE
Cat. No. : 665 096
Material: SEBS
Suitable for all standard mechanisms (except for the cable outlet).
�
�
�
5. SITE PROTECTIVE COVER
Material: APET, polyester-based plate, very clear, highly
resistant to impacts and chemical agents.
6. "Rapido" CLAW
Cat. No. : 665 099
For fixing devices in refurbishment projects
665 099
Created: 08/11/2010
1/1
