2. Technical Data

Modell

Input Voltage

Output
Power consumption
Ambient temperature
Dimensions
Net-weight
3. Specifications
1. Nearly smooth adjustment of dimming
2. Controlling of dynamic white luminaires
3. Control of endless number of RF receivers
4. Installation with magnet / 3M adhesive tape.
IP 20
4. Usage
Press and hold to increase
brightness
Press to switch
on or off
Controlls the white channel
of receiver.
Press and hold to increase
or decrease brightness
MBN GmbH, Balthasar-Schaller-Str. 3, 86316 Friedberg - Germany
07.19. Technical amendments reserved
PROLED RF DW MINI REMOTE CONTROLLER
3 VDC Battery (CR2430)
Radio Frequency Signal 868 MHz
< 1 W
-10°C – 45°C
55 mm x 55 mm x 12 mm (W x L x H)
50 g

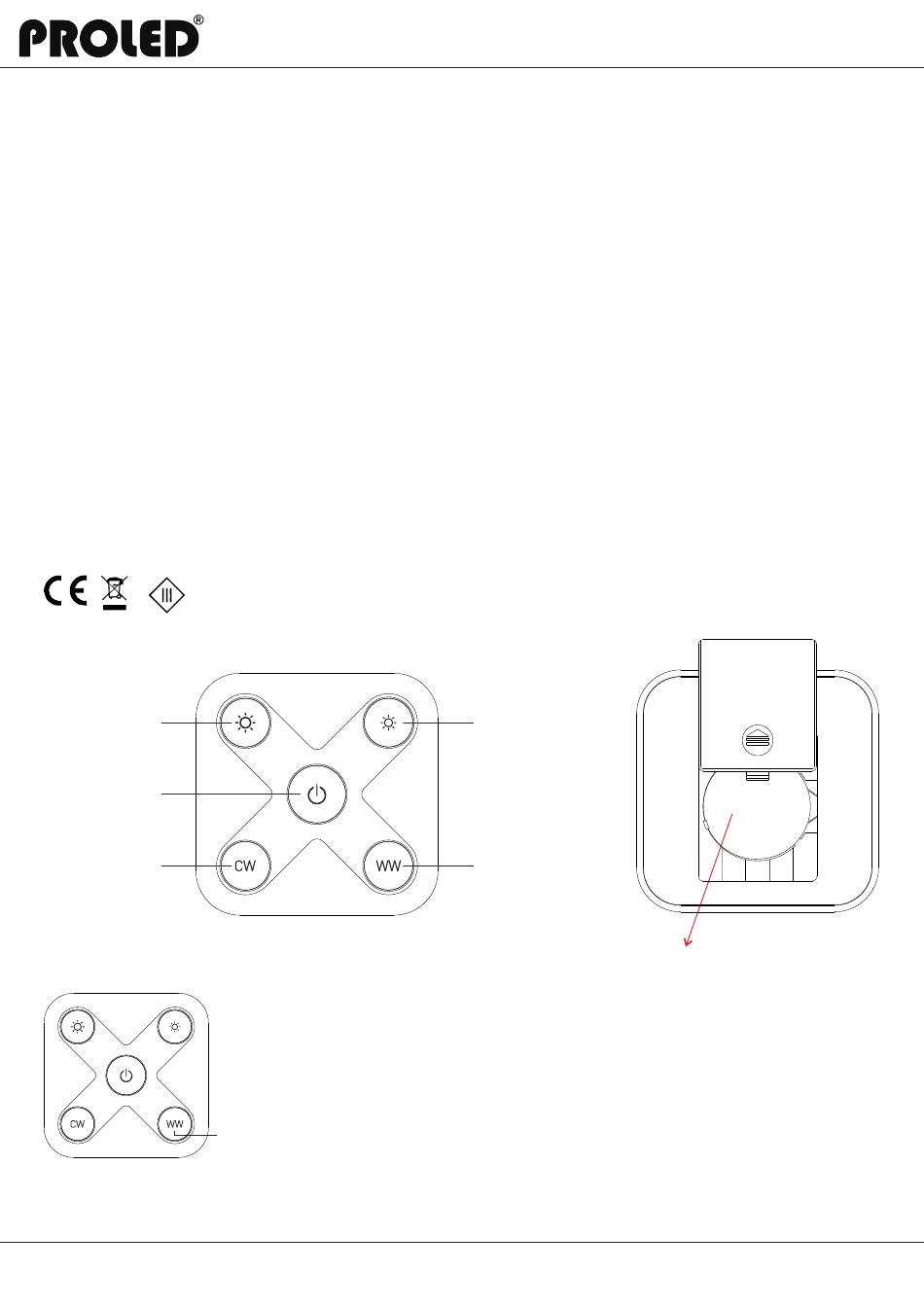

Front side
Connecting RF DW MINI REMOTE CONTROLLER with RF receiver:
a. Connect the RF-receiver according to wiring diagram. Receiver is not part
of delivery.
Please order separately.
b. Press learning key (Learning) at receiver.
c. Press one of the buttons at RF DW MINI REMOTE CONTROLLER, for
example WW-button. Luminaire connected with RF receiver flash one time
to confirm connection with RF receiver.
d. A longer press (>5 sec.) on learning key untill LED blinks confirms, that ID
will be deleted.
www.proled.com
Bedienungsanleitung / User's manual
Press and hold to decrease
brightness
Controlls the warm white
channel of receiver.
Press and hold to increase
or decrease brightness
CR2430 Battery. Please remove security plate
before starting using.
Back side
