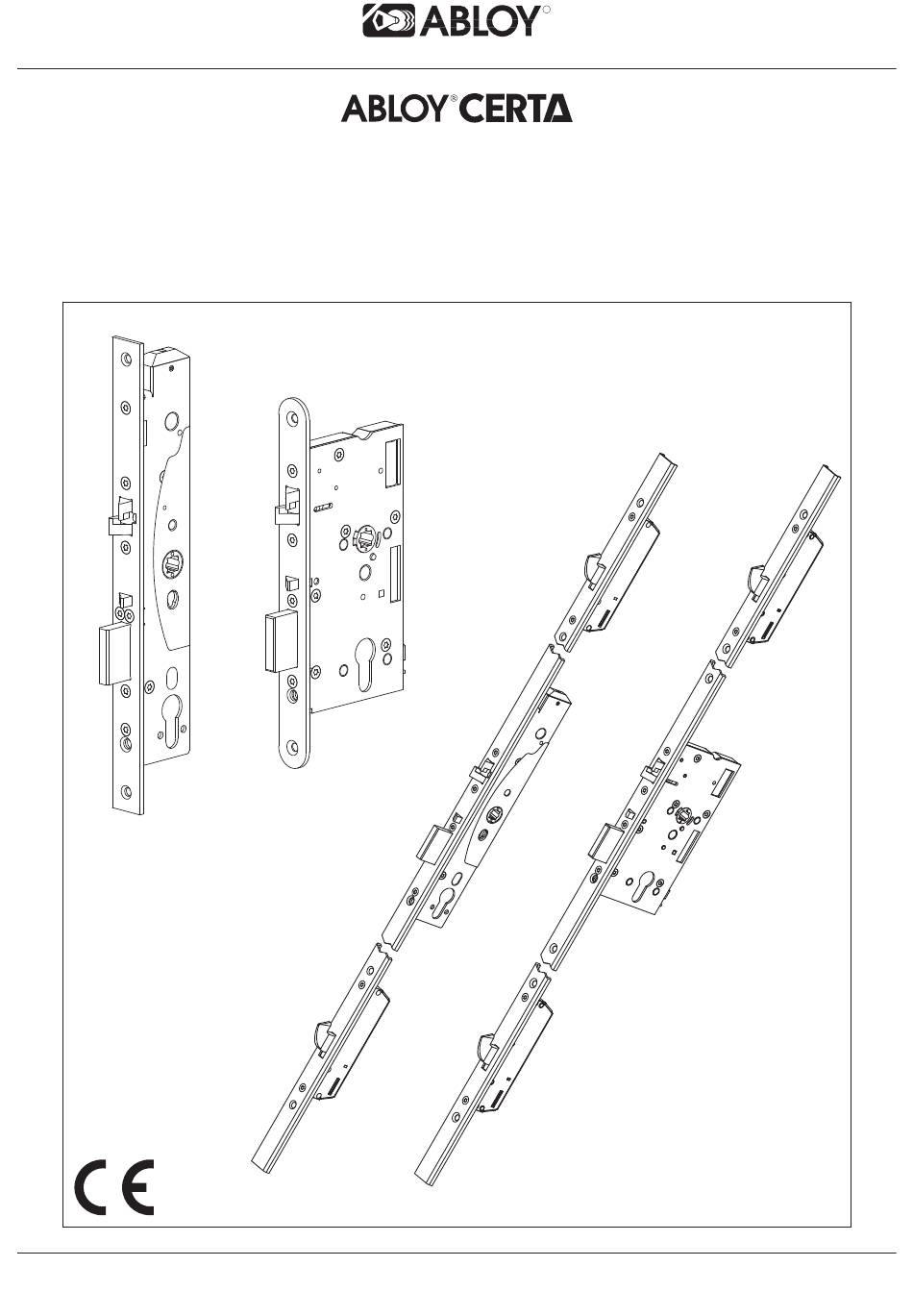

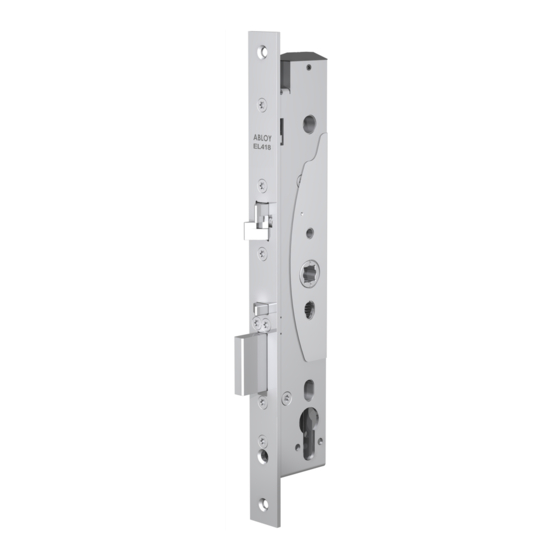

- Seite 1 Small Business EL418, EL419, EL518, EL519 MP418, MP419, MP518, MP519 ASSA ABLOY An ASSA ABLOY Group brand...
- Seite 2 EL418, EL419 EL518, EL519 10.5 6 X 2 6 x 2 4.5 x 2...
- Seite 3 MP418, MP419 MP518, MP519 10.5...
- Seite 4 Contents ENGLISH Inhoud NEDERLANDS TECHNICAL DATA ............... 6 - 7 TECHNISCHE INFORMATIE ..........6 - 7 STANDARDS ................8 NORMERING ................8 EMERGENCY EXIT DEVICES INSTALLATION INSTALLATIE VAN NOODUITGANG ACCORDING TO EN 179 ........... 9 - 11 VOORZIENINGEN CONFORM DE EN 179 ....... 9 - 11 PANIC EXIT DEVICES INSTALLATION INSTALLATIE VAN VLUCHTWEG ACCORDING TO EN 1125 ..........
- Seite 5 Obsah ČESKY Ñîäåðæàíèå ÏÎ-ÐÓÑÑÊÈ TECHNICKÉ ÚDAJE ................6 - 7 ÒÅÕÍÈ×ÅÑÊÀß ÑÏÅÖÈÔÈÊÀÖÈß ........6 - 7 NORMY ......................8 ÒÅÑÒÈÐÎÂÀÍÈÅ ÑÎÃËÀÑÍÎ ÑÒÀÍÄÀÐÒÀÌ ...... 8 INSTALACE ZAŘÍZENÍ ÚNIKOVÉHO VÝCHODU ÌÎÍÒÀÆ ÓÑÒÐÎÉÑÒ ÀÂÀÐÈÉÍÎÃÎ V SOULADU S EN 179 ................ 9 - 11 ÂÛÕÎÄÀ...
- Seite 6 U: 12 - 24 V DC (-0 % / +15%) Max. Normal drive Idle Anlaufspitzenstrom Normalbetrieb Ruhestrom Maxi. Normal Repos Maximaal. Motor in bedrijf In rust Max. Durante el uso Con cerradura inactiva Max. Funzionamento normale Riposo Max. Běžný pohyb Klidu Maksymalny Normalny...
- Seite 7 MP418, MP419 MP518, MP519 55 / 60 / 65 / 80 / 100 30 / 35 / 40 / 45 mm 10 mm 8 x 8 mm / EA211 (6 m) / 9 x 9 mm EA221 (10 m) 9 x 0.14 mm2 20 mm 10 mm 8 x 8 mm /...
- Seite 8 Funzioni selezionabili: Funzioni meccaniche: Settable functions: Mechanical functions: - direzione d’apertura del - Opening direction of trigger trigger bolt Uscite: Catenaccio fuori Monitoring outputs: Bolt out The use of a universal building key is prohibited because it can seriosly damage the lock. Nastavitelné...
- Seite 9 DO 20.15.01 DO 20.03.01, DO 20.13.01, DO 20.32.01 DO 20.33.02 DO 20.15.02 DO 20.03.02 DO 20.13.02 DO 20.32.02 e.g. ABLOY® INOXI e.g. S6B8 1016, 1023, 1056, 1070, 1080, 111, 111.23, e.g. 60-0719 EL418 EL419 3-19/013/120 PZ+BL 1088, 1090, 1117, 1118, 1119, 114.23GK,...
- Seite 10 DO 20.03.01, DO 20.13.01, DO 20.32.01 DO 20.33.02 DO 20.15.02 DO 20.03.02 DO 20.13.02 DO 20.32.02 e.g. ABLOY® INOXI e.g. S6B8 1016, 1023, 1056, 1070, 1080, 111, 111.23, e.g. 60-0719 MP418, MP419 3-19/013/120 PZ+BL 1088, 1090, 1117, 1118, 1119, 114.23GK, ABLOY®...
- Seite 11 EN 1125 effeff DO 30.04 DO 30.05 8000-00-1100 (-) NORMA MP418 8000-10-1100 (PZ) 990000-XX-0A 8000-00-1100 (-) 990100-XX-0A MP419 8000-11-1100 (RZ) 990001-XX-0A effeff 991000-XX-0A DO 30.04 991100-XX-0A 8000-00-1100 (-) 991001-XX-0A MP518 8000-20-1100 (PZ) 991101-XX-0A 8000-00-1100 (-) MP519 8000-21-1100 (RZ) The safety features of this product are essential to its compliance with EN 179/EN 1125. No modification of any kind other than those described in these instructions, are permitted.
- Seite 13 Please make sure that both the door leaf and the frames are straight, not bent. Bitte stellen Sie sicher, dass sowohl das Türblatt als auch die Rahmen gerade und nicht schief sind. Vérifiez que la porte et le chambranle soient bien droits (non bombés ). Zorg ervoor dat de deur en de omlijsting loodrecht staan ( niet gebogen ).
- Seite 14 Fare attenzione che la porta ed il telaio siano perfettamente allineati. Ujistěte se prosím, že obě strany dveřních křídel a rámů jsou rovně, nikoli zakřivené. Upewnij siê, ¿e drzwi oraz o¶cie¿nica s± proste, nie pogiête. Ïîæàëóéñòà óáåäèòåñü, ÷òî äâåðíîå ïîëîòíî è ðàìà ïðÿìûå, áåç èçãèáîâ. 请确认门框及门扇保持水平，不能弯曲 F = D Lasciare del cavo Verificare che il Forare con un...
- Seite 18 MP418, MP419 3.5 x 8 EA306 233 / 347 221 / 347 EA322 EA324 EA325 EA326 EA327 EA328 EA329 EA330 EA331 EA332 12, 15, 18, 20 24, 28, 50 EA306...
- Seite 19 MP518, MP519 + 0.50 R 9 0 + 0.50 R 12.5 0 + 0.50 R 9 0 18.5 + 0.50 R 9 0...
- Seite 20 MP518, MP519 + 0.50 R 9 0 + 0.50 R 12.5 0 + 0.50 R 9 0 8 x 2 8 x 2 + 0.50 R 9 0...
- Seite 21 MP518, MP519 R 6 x2 LP781 R 6 x2 LP781 R 6 x4 EA323 EA321 R 6 x4 R 6 x2 LP781 R 6 x2 LP781...
- Seite 22 MP518 MP519 EA306 + 0.50 R 10 0 + 0.50 R 10 0 EA322 EA324 EA325 EA326 EA327 EA328 EA329 EA330 EA331 EA332 + 0.50 R 10 0 EA306 + 0.50 R 10 0...
- Seite 23 LOCTITE 243 2.5 mm Please note not to unscrew the Allen screw completely. Asegúrese de no desenroscar el tornillo en su totalidad. Bitte beachten Sie, dass Sie die Inbusschraube nicht Attenzione:non allentare completamente la vite. ganz herausdrehen. Prosím dejte pozor, abyste šroub nevyšroubovali úplně.
- Seite 24 2 mm LOCTITE 243 ...
- Seite 25 EL418, EL419, MP418, MP419 EL418, EL419, MP418, MP419 EL518, EL519, MP518, MP519 EL518, EL519, MP518, MP519 EL418, EL419, MP418, MP419 EL518, EL519, MP518, MP519...
- Seite 28 An ASSA ABLOY Group brand Abloy Oy is one of the leading manufactures of locks, locking systems and architectural hardware and the word´s leading developer of products in the field of electromechanical locking technology. ASSA ABLOY is the global leader in door opening solutions, dedicated to satisfying end-user needs for security, safety and convenience.
