Fiskars 1023656 Originalanleitung

Impulse sprinkler, metal
Original instructions: Model 1023656 / 1023658
: Please read the manual before
attention
using.
: Always close the water source (water
warning
tap) after use of the garden watering products.
Electric shock hazard -Do not direct the water
•
jet on or near electrical connections, products
or outlets. Do not direct the water jet towards
•
persons or animals. No drinking water.
•
non-commercial use only -commercial use will
void guarantee. For watering use with outdoor
home water faucet only. Not for indoor or appli-
ance use. Recommended pressure - 4 bar.
•
Do not use with water exceeding 38 °C.
and drain before storing in frost free environ-
ment. Do not leave product pressurised while
•
unattended.
Disposal
: Dispose of the product through or
important
via your municipal recycling collection centre.
Warranty terms The manufacturer shall repair
or replace, through the dealer, any parts of the
product found to be faulty due to manufacturing
defects, for a period of 24 months as of the date
of purchase. This service is subject to the fol-
lowing provision: the device has been used for
its intended purpose as per the recommenda-
tions in the user manual. The warranty does not
cover defects due to tampering, improper use or
wear. The warranty is valid only if the customer
returns the product to the dealer complete in
all its parts together with the receipt or other
document proving the date of purchase. The
warranty is fulfilled by supplying a fully functional
replacement device or by repairing the faulty
device. The manufacturer reserves the right to
choose between these options.
EU Declaration of Conformity Fiskars
Oy, Finland hereby certifies that when leaving
Fiskars factory Fiskars sprinklers are in accord-
ance with harmonized EU guidelines, EU stand-
ards of safety and product specific standards.
This certificate becomes void if the units are
modified without Fiskars approval. CE declara-
tion of conformity in accordance with European
Machinery Directive 2006/42/EC annex I and
other applicable directives.
fiskars.com
Use Adjust the watering distance and the direc-
tion with the control knobs:
Watering coverage adjustment.
1.
tering coverage up to Ø 26 meters by rotating
distance control knob (
Spray pattern adjustment.
2.
tern from powerful jet to gentle mist by rotat-
ing diffuser pin ( ).
D
For Watering area adjustment.
• 3.
with rotation control lever from partial (
to 360° coverage (
E3
Storage
•
Detach Store in a frost-free environment.
• 1.
Detach, (if it has flow control, turn it to ON
2.
position) and drain sprinkler before storing.
Maintenance
Keep the product clean.
1.
kler head can be detached for more efficient
cleaning. Cleaning with water.
•
Store the product in a dry place and away
2.
from sunlight.
Hinges, rotating components and other mov-
3.
ing parts can be lubricated in case jamming
occurs.
Unscrew to detach connector and sprinkler
4.
head ( ).
G
Troubleshooting
: Sprinkler does not rotate
problem
back and forth.
: Tap is closed.
1.
possible cause
: Open the tap.
solution
: Insufficient water pressure.
2.
possible cause
: Recommended operational pressure
solution
is 4.0 bars.
: Connected hose is twisted/
3.
possible cause
kinked. : Check hose.
solution
: Sprinkler rotates to one side
problem
and stops.
: Insufficient water pressure.
possible cause
: Recommended operational pressure
solution
is 4.0 bars.
: Sprinkler doesn't cover 360°.
problem
: The trip lever (
possible cause
: Flip the trip lever (
tion.
solution
coverage.
Impulse sprinkler, metal
Adjust wa-
•
).
C
Adjust spray pat-
•
Easily adjust area
•
, )
E1 E2
).
Connector and sprin-
•
Watering distance
Watering area
) is in low posi-
E3
) up for 360°
E3
Recommendation for the size of the garden:
For extra large size (500 m
* According to the Fiskars garden size guide
recommended operating pressure
operating temperature
max
watering distance up to
** Performance is related to operating pressure
Wedgwood Drive, Barlaston,
Stoke-on-Trent, Staffordshire, ST12 9ER,
ukconsumercare@fiskars.com
Fiskars Australia Pty Ltd ,
D
B
E1 E2
G
Wheels' base
A.
- 1023656 ( ),
A1
Spike base
F
- 1023658 ( ).
A2

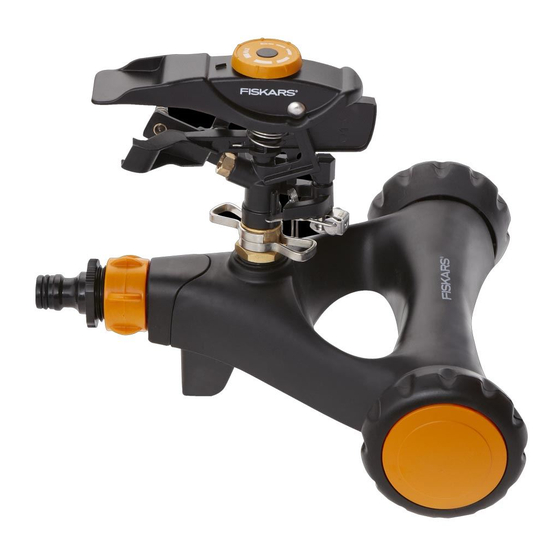

Brass & zinc head.
B.
Distance control knob.
C.
Diffuser pin.
D.
Control levers for adjust watering
E.
area ( , ). Trip lever for 360° coverage (
E1 E2
Universal fit - fits with all type of connectors and other
F.
brands.
C
E1
E2
Partial
& above)* garden.
2
.
water temperature
**
Fiskars UK Limited ,
100 Holbeche Road,
Arndell Park NSW 2148,
+61 3 8645 2400.
C
E3
A1
A2
).
E3
E3
Full
4.0 bar
5 – 50 °C
38 °C
Ø 26 m
