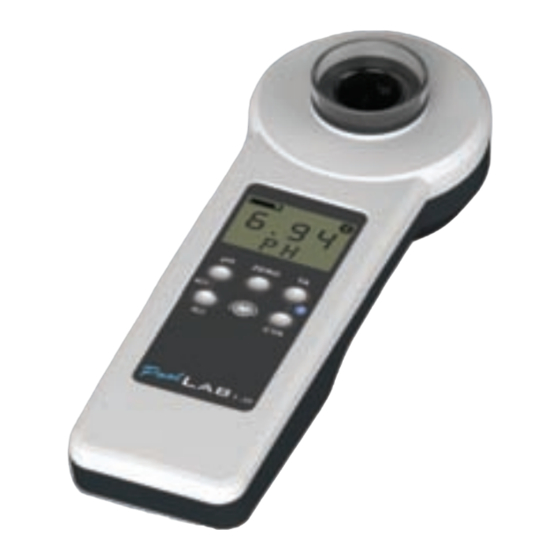

POOL LAB 1.0 Gebrauchsanleitung
Inhaltszusammenfassung für POOL LAB 1.0
- Seite 1 User Manual Manuel d’utilisation Manual de usuario Gebrauchsanleitung Manuale dell’utente www.poollab.org Downloaded from www.Manualslib.com manuals search engine...
-
Seite 2: Inhaltsverzeichnis
CONTENT Delivery content Changing Batteries Switch on/off General Advices 6 - 7 ZERO 8 - 9 TEST - pH 10 - 11 TEST - Cl - Chlorine 12 - 15 TEST - CYA - Cyanuric Acid 16 - 17 TEST - TA - Alkalinity 18 - 19 TEST - Active Oxygen (MPS) 20 - 21... -
Seite 3: Delivery Content
Delivery content • Contenu du colis • Contenido de la entrega • Lieferumfang • contenuto della confezione PoolLab 1.0 Light shield AAA Batteries Crushing / Stirring Rods 10ml syringe User guide 20 x Phenol Red Photometer tablets 20 x DPD N° 1 Photometer tablets 10 x DPD N°... -
Seite 4: Changing Batteries
Batteries • Piles • Pilas • Batterien • Batterie Change • chargement • cambio • wechseln • cambiamento 3 x AAA Downloaded from www.Manualslib.com manuals search engine... -
Seite 5: Switch On/Off
Switch on • Allumer • Encender • Einschalten • Accendere 2 sec. · ZERO On/Off button can also be used to skip countdown during measurement (not recommended) Le bouton Marche / Arrêt peut être également utilisé pour ignorer le compte à rebours lors de la mesure (non recommandé) El botón de On/Off también se puede utilizar para cancelar la cuenta atrás durante la medición (no se recomienda) Der On/Off Knopf kann auch zum Abbrechen des Countdowns... -
Seite 6: General Advices
Advices • Conseils • Consejos • Hinweise • Consigli Always use PHOTOMETER grade tablets! Never use RAPID grade tablets! Do not touch reagent tablets! Toujours utiliser des pastilles de qualité PHOTOMETRE! Ne jamais utiliser des pastilles de qualité "RAPID" ! PHOTOMETER Ne touchez pas les pastilles avec les mains! - Seite 7 IMPORTANT • IMPORTANTE • WICHTIG Detergent waterproof (IP68 ) ZERO It is important to clean the device after each measurement to get rid of any reagent residues! Il est important de nettoyer le dispositif après chaque mesure pour éliminer les résidus de réactifs! Es importante limpiar el dispositivo después de cada medición para deshacerse de cualquier residuo de reactivo!
-
Seite 8: Zero
ZERO 3 x = waterproof (IP68 ) ZERO take 10 ml water sample waterproof (IP68 ) 10 ml ZERO ZERO ZERO Downloaded from www.Manualslib.com manuals search engine... - Seite 9 Only 1 time per test batch • Une seule fois par lot de test • Sólo una vez por lote de prueba • Nur 1 x pro Testreihe • solo una volta per test in batch Once you performed ZERO, all measurements, like pH, chlorine... can be done one after each other without the need to do a ZERO again.
-
Seite 10: Test - Ph
Range: 6.50 - 8.40 pH Reagent: Phenol Red Photometer 3 x = waterproof (IP68 ) ZERO 10 ml waterproof (IP68 ) 10 ml ZERO Downloaded from www.Manualslib.com manuals search engine... - Seite 11 After / Après / Después de / Nach / Dopo ZERO completely Phenol Red dissolved Photometer residue ZERO ZERO 15 sec. · ZERO ZERO Downloaded from www.Manualslib.com manuals search engine...
-
Seite 12: Test - Cl - Chlorine
Chlorine Chlore Cloro Chlor Cloro Range: 0.00 - 6.00 mg/l (ppm) Reagents: DPD N° 1 Photometer DPD N° 3 Photometer 3 x = waterproof (IP68 ) ZERO 10 ml waterproof (IP68 ) 10 ml ZERO Downloaded from www.Manualslib.com manuals search engine... - Seite 13 After / Après / Después de / Nach / Dopo ZERO Free Chlorine • Chlore libre • Cloro libre • Freies Chlor • Cloro libero N° 1 Photometer completely dissolved ZERO ZERO residue Total Chlorine 15 sec. · ZERO ZERO Downloaded from www.Manualslib.com manuals search engine...
- Seite 14 Total Chlorine • Chlore total • Cloro total • Gesamt-Chlor • Cloro totale N° 3 Photometer ZERO ZERO completely dissolved · ZERO ZERO pH ZERO TA residue Downloaded from www.Manualslib.com manuals search engine...
- Seite 15 Total Chlorine is measured directly after free Chlorine without emptying the cuvette. The DPD 3 tablet is added to the sample water which already contains the DPD 1 tablet (dissolved). Combined Chlorine is calculated as Total Chlorine minus free Chlorine. Le chlore total est mesuré...
-
Seite 16: Test - Cya - Cyanuric Acid
Cyanuric Acid Acide cyanurique Ácido cianúrico Cyanursäure Acido Cianurico Range: 0 - 160 mg/l (ppm) Reagent: CYA-Test Photometer 3 x = waterproof (IP68 ) ZERO 10 ml waterproof (IP68 ) 10 ml ZERO Downloaded from www.Manualslib.com manuals search engine... - Seite 17 After / Après / Después de / Nach / Dopo ZERO Cyan. Acid • Acide Cyan • Ácido Cian. • Cyanursäure • Acido Cianurico CYA-Test completely Photometer dissolved ZERO ZERO residue 15 sec. · ZERO ZERO Downloaded from www.Manualslib.com manuals search engine...
-
Seite 18: Test - Ta - Alkalinity
Alkalinity Alcalinité Alcalinidad Alkalinität Alcalinità Range: 0 - 300 mg/l (ppm) CaCO Reagent: Alkalinity-M Photometer 3 x = waterproof (IP68 ) ZERO 10 ml waterproof (IP68 ) 10 ml ZERO Downloaded from www.Manualslib.com manuals search engine... - Seite 19 After / Après / Después de / Nach / Dopo ZERO Alkalinity • Alcalinité • Alcalinidad • Alkalinität • Alcalinità Alkalinity-M Photometer completely dissolved ZERO ZERO residue 25 sec. · ZERO ZERO Downloaded from www.Manualslib.com manuals search engine...
-
Seite 20: Test - Active Oxygen (Mps)
Active Oxygen (MPS) Oxygène actif (MPS) Oxígeno activo (MPS) Aktivsauerstoff (MPS) Ossigeno Attivo (MPS) Range: 0.0 - 30.0 mg/l (ppm) Reagent: DPD N° 4 Photometer* *not part of standard equipment 3 x = waterproof (IP68 ) ZERO 10 ml waterproof (IP68 ) 10 ml ZERO... - Seite 21 After / Après / Después de / Nach / Dopo ZERO Active Oxygen • Oxygène actif • Oxígeno activo Aktivsauerstoff • Ossigeno Attivo N° 4 Photometer* completely dissolved ZERO ZERO residue 120 sec. · ZERO ZERO Downloaded from www.Manualslib.com manuals search engine...
-
Seite 22: Test - Chlorine Dioxide
Chlorine Dioxide Dioxyde de Chlore Dióxido de cloro Chlordioxid Biossido di Cloro Range: 0.0 - 11.4 mg/l (ppm) Reagent: DPD N° 1 Photometer Glycine* *not part of standard equipment 3 x = waterproof (IP68 ) ZERO 10 ml waterproof (IP68 ) 10 ml ZERO Downloaded from... - Seite 23 After / Après / Después de / Nach / Dopo ZERO Cl.Dioxide • Dioxyde de Cl • Dióxido de Cl Chlordioxid • Biossido di Cl Only if your water sample does contain Chlorine next to Chlorine Dioxide (both disinfectants used), the following procedure "A" needs to be followed and Glycine reagent needs to be used.
- Seite 24 After / Après / Después de / Nach / Dopo ZERO Cl.Dioxide • Dioxyde de Cl • Dióxido de Cl Chlordioxid • Biossido di Cl With Chlorine / Avec du Chlore / Con Cloro / Mit Chlor / Con il Cloro Glycine* completely dissolved...
- Seite 25 After / Après / Después de / Nach / Dopo ZERO Cl.Dioxide • Dioxyde de Cl • Dióxido de Cl Chlordioxid • Biossido di Cl Without Chlorine / Sans Chlore / Sin Cloro / Ohne Chlor / Senza Cloro DPD N° 1 Photometer completely dissolved...
-
Seite 26: Test - Bromine
Bromine Brome Bromo Brom Bromo Range: 0.0 - 13.5 mg/l (ppm) Reagent: DPD N° 1 Photometer Glycine* *not part of standard equipment 3 x = waterproof (IP68 ) ZERO 10 ml waterproof (IP68 ) 10 ml ZERO Downloaded from www.Manualslib.com manuals search engine... - Seite 27 After / Après / Después de / Nach / Dopo ZERO Bromine • Brome • Bromo • Brom • Bromo Only if your water sample does contain Chlorine next to Bromine (both disinfectants used), the following procedure "A" needs to be followed and Glycine reagent needs to be used.
- Seite 28 After / Après / Después de / Nach / Dopo ZERO Bromine • Brome • Bromo • Brom • Bromo With Chlorine / Avec du Chlore / Con Cloro / Mit Chlor / Con il Cloro Glycine* completely dissolved ZERO ZERO residue DPD N°...
- Seite 29 After / Après / Después de / Nach / Dopo ZERO Bromine • Brome • Bromo • Brom • Bromo Without Chlorine / Sans Chlore / Sin Cloro / Ohne Chlor / Senza Cloro DPD N° 1 Photometer completely dissolved ZERO ZERO residue...
-
Seite 30: Test - Ozone
Ozone Ozono Ozon Range: 0.00 - 4.00 mg/l (ppm) Reagent: DPD N° 1 Photometer DPD N° 3 Photometer Glycine* *not part of standard equipment 3 x = waterproof (IP68 ) ZERO 10 ml waterproof (IP68 ) 10 ml ZERO Downloaded from www.Manualslib.com manuals search engine... - Seite 31 After / Après / Después de / Nach / Dopo ZERO Ozone • Ozono • Ozon Only if your water sample does contain Ozone next to Chlorine (both disinfectants used), the following procedure "B" needs to be followed and Glycine reagent needs to be used. Otherwise (only Ozone present), please follow procedure "A".
- Seite 32 After / Après / Después de / Nach / Dopo ZERO Ozone • Ozono • Ozon Without Chlorine / Sans Chlore / Sin Cloro / Ohne Chlor / Senza Cloro DPD N° DPD N° (Photometer) completely dissolved ZERO ZERO residue 120 sec.
- Seite 33 After / Après / Después de / Nach / Dopo ZERO Ozone • Ozono • Ozon With Chlorine / Avec du Chlore / Con Cloro / Mit Chlor / Con il Cloro DPD N° DPD N° (Photometer) completely dissolved ZERO ZERO residue 120 sec.
- Seite 34 After / Après / Después de / Nach / Dopo ZERO Ozone • Ozono • Ozon With Chlorine / Avec du Chlore / Con Cloro / Mit Chlor / Con il Cloro 0 ml 0 ml ZERO 10 ml waterproof (IP68 ) 10 ml ZERO...
- Seite 35 After / Après / Después de / Nach / Dopo ZERO Ozone • Ozono • Ozon With Chlorine / Avec du Chlore / Con Cloro / Mit Chlor / Con il Cloro DPD N° DPD N° (Photometer) completely dissolved ZERO ZERO residue 120 sec.
- Seite 36 Hydrogen Peroxide Peroxyde d'Hydrogène Peróxido de Hidrógeno Wasserstoffperoxid Perossido di Idrogeno (LR) Range: 0.00 - 2.90 mg/l (ppm) Reagent: Hyd. Peroxide LR Photometer* *not part of standard equipment 3 x = waterproof (IP68 ) ZERO 10 ml waterproof (IP68 ) 10 ml ZERO Downloaded from...
- Seite 37 After / Après / Después de / Nach / Dopo ZERO Hyd. Perox. • Perox. d‘hyd. • Peróx. de Hidr. Wasserstoffperox. • Peross. di Idrog. Hyd. Peroxide LR Photometer* completely dissolved ZERO ZERO residue 120 sec. · ZERO ZERO Downloaded from www.Manualslib.com manuals search engine...
- Seite 38 Hydrogen Peroxide Peroxyde d'Hydrogène Peróxido de Hidrógeno Wasserstoffperoxid Perossido di Idrogeno (HR) Range: 0 - 200 mg/l (ppm) Reagent: Hyd. Peroxide HR Phot.* Acidifying PT *not part of standard equipment 3 x = waterproof (IP68 ) ZERO 10 ml waterproof (IP68 ) 10 ml ZERO...
- Seite 39 After / Après / Después de / Nach / Dopo ZERO Hyd. Perox. • Perox. d‘hyd. • Peróx. de Hidr. Wasserstoffperox. • Peross. di Idrog. Acidifying completely dissolved ZERO ZERO residue Hyd. Peroxide Photometer* completely dissolved ZERO ZERO residue 15 sec. ·...
-
Seite 40: Test - Total Hardness
Total Hardness Dureté Totale Dureza Total Gesamthärte Durezza Totale Range: 0 - 500 mg/l (ppm) Reagent: POL20TH1 /POL10TH2 *not part of standard equipment 3 x = waterproof (IP68 ) ZERO 10 ml waterproof (IP68 ) 10 ml ZERO Downloaded from www.Manualslib.com manuals search engine... - Seite 41 After / Après / Después de / Nach / Dopo ZERO Total Hardn. • Dureté Totale • Dureza Total Gesamthärte • Durezza Totale POL20TH1* POL10TH2* 10 x ZERO ZERO 120 sec. · ZERO ZERO Downloaded from www.Manualslib.com manuals search engine...
-
Seite 42: Test - Calcium Hardness
Calcium Hardness Dureté Calcique Dureza de Calcio Kalziumhärte Durezza del Calcio Range: 0 - 500 mg/l (ppm) Reagent: POL20CaH1 /POL20CaH2 *not part of standard equipment 3 x = waterproof (IP68 ) ZERO 10 ml waterproof (IP68 ) 10 ml ZERO Downloaded from www.Manualslib.com manuals search engine... - Seite 43 After / Après / Después de / Nach / Dopo ZERO Calcium Hard. • Dureté Calcique • Dureza de Calcio • Kalziumhärte • Durezza del Calcio POL20CaH1* POL20CaH2* 10 x 10 x ZERO ZERO 30 sec. · ZERO ZERO Downloaded from www.Manualslib.com manuals search engine...
-
Seite 44: Or / Ur / Dilution
OR-UR / Dilution • OR-UR / Verdünnung • OR-UR / Dilución • OR-UR / Diluzione OR = Overrange / UR = underrange. Test result is outside the range of the method. OR results can be brought into measurement range by dilution. Use syringe to take only 5ml (or 1ml) sample water plus 5ml (9ml) distilled water. -
Seite 45: Troubleshooting (Error)
Error codes • Codes d'erreur • Códigos de error • Fehlercodes • codici di errore BAT!: Change batteries • Changer les piles • Cambiar las pilas • Batterien wechseln • Cambiare le batterie Err02: (too dark) Clean measurement chamber or dilute sample •... -
Seite 46: Changing Cuvette / Calibration
Changing the cuvette • Changer la cuvette Cambiar la cubeta • Küvettenwechsel cambiando la cuvetta 90° ZERO ZERO 90° click ZERO ZERO Downloaded from www.Manualslib.com manuals search engine... -
Seite 47: Accessories
Accessories • Accessoires • Accesorios • Zubehör • Accessori Reagents • Réactifs • Reactivos • Reagenzien • Reagenti POL01-Nf 20/20/10/10/10 Phenol Red / DPD N° 1 / DPD N° 3 / CYA-Test / Alkalinity-M Photometer TbsPph100 100 x Phenol Red Photometer TbsPD1100 100 x DPD N°... -
Seite 48: App / Software
Software / App • Logiciels / App • Software / Aplicación • Software / App • Software / App Bluetooth ON Bluetooth OFF ZERO Windows/ MacOS: www.poollab.org Downloaded from www.Manualslib.com manuals search engine... -
Seite 49: Technical Data
Technical data • Données techniques • Datos técnicos • Technische Daten • Dati tecnici TEST: Cl 0.00 - 6.00 ± 10 % mg/l 6.50 - 8.40 ± 0.1 pH - 160 ± 15 % mg/l - 300 ± 15 % mg/l CaCO Act.Ox... -
Seite 50: Disposal Of Batteries / Device
Disposal Batteries According to EC Guideline 2006/66/EC, user is obliged to dispose in a proper manner by returning worn out batteries to dedicated collection places such as any shop selling batteries. Batteries must not be disposed of in normal domestic waste. Device According to EC Directive 2002/96/EC, electronic devices must not be disposed of in normal domestic waste. -
Seite 51: Ce Compliance Statement
CE compliance statement We, the manufacturer of the PoolLab 1.0 Photometer hereby declare comliance of PoolLab 1.0 Photometer with the essential requirements in accordance to the Directive 2014/53/UE of the European Parliament and of the Council of April 16th, 2014: ETSI EN 300 328 (V2.1.1) - Seite 52 FCC Part 15 compliance statement IC licence-exempt RSS compliance statement This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
- Seite 53 émetteur. Changes or modifications not expressly approved by Water-i.d. GmbH could void the user‘s authority to operate the equipment. FCC ID: 2ALRR-POOLLAB10 22610- POOLLAB10 Model: POOL LAB 1.0 Downloaded from www.Manualslib.com manuals search engine...
-
Seite 54: Notes
NOTES • NOTAS • NOTIZEN • NOTE Downloaded from www.Manualslib.com manuals search engine... - Seite 55 NOTES • NOTAS • NOTIZEN • NOTE Downloaded from www.Manualslib.com manuals search engine...
-
Seite 56: Certificate Of Compliance
Certificate • Certificat • Certificado • Zertifikat • Certificato CERTIFICATE OF COMPLIANCE We hereby certify that the device PoolLab 1.0 With it‘s serial number as stated below, has passed intensive visual and technical checks as part of our QM documentation.
