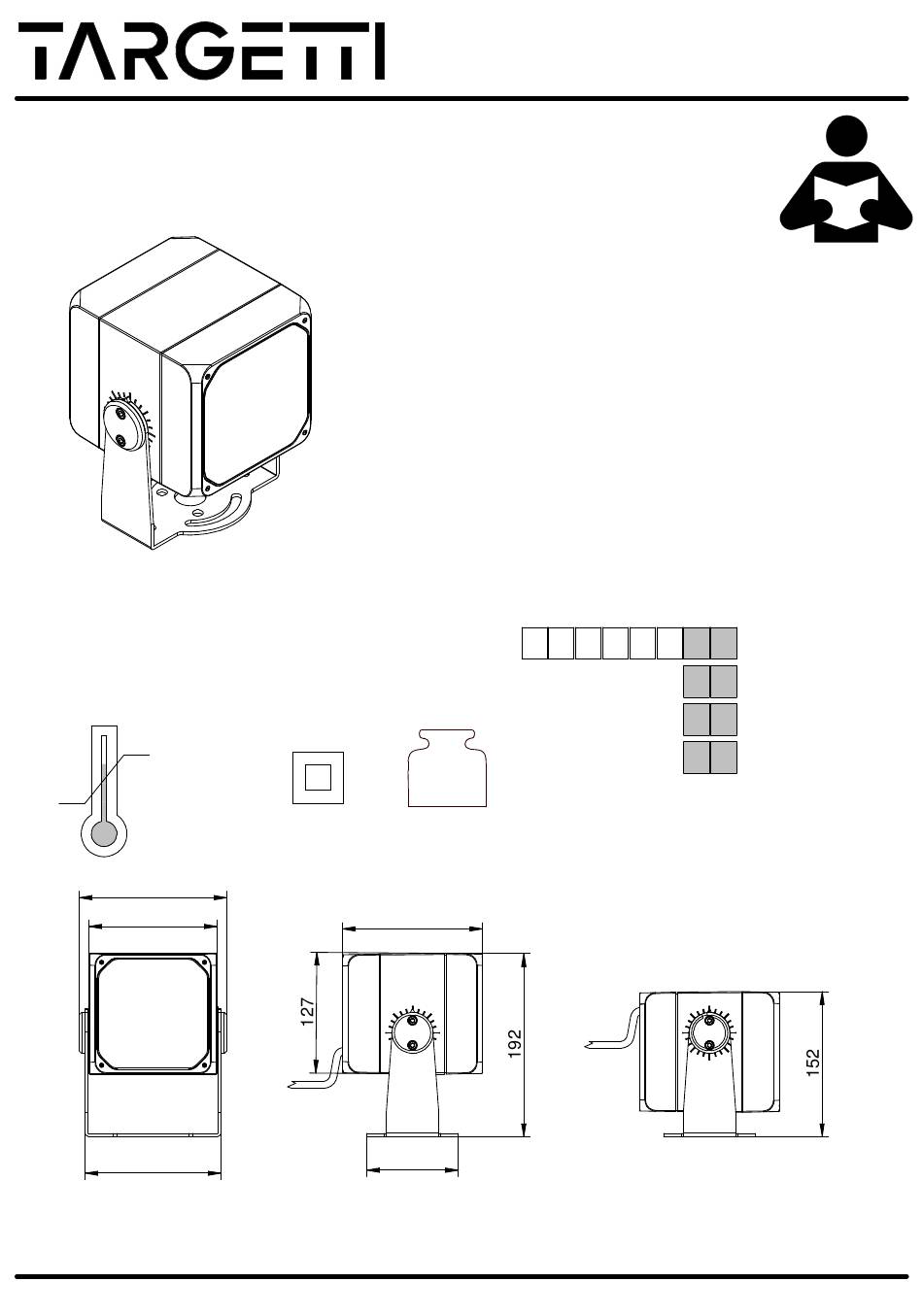

DART Medium
+35°C
-25°C
220/240V
154,5
134,5
142
RG1 secondo norma IEC/TR 62778:2014 / RG1 in accordance with IEC/TR 62778:2014
RG1 selon la norme IEC/TR 62778:2014 / RG1 nach der norm IEC/TR 62778:2014
RG1 enlight IEC/TR 62778:2014 / RG1 volgens IEC/TR 62778:2014
Targetti Sankey S.p.A. Via Pratese, 164 50145 Florence Italy
16W Sorgente Led / Led source
19W Apparecchio / Fixture
COD. 1E2994 / 1E2995
34W Sorgente Led / Led source
38W Apparecchio / Fixture
COD. 1E2996 / 1E2997
COD. 1E2998 / 1E2999
33W Sorgente Led / Led source
37W Apparecchio / Fixture
COD. 1E3000 / 1E3001 / 1E3002
COD. 1E3003 / 1E3004 / 1E3005
COD. 1E3126 / 1E3127
3,1Kg
50/60Hz
147
96
RG1 de acordo com norma IEC/TR 62778:2014
1 E
X X
In caso di dubbi sulla simbologia,
riferirsi al catalogo o al sito web.
IP66 IK10
1,5mt
cod. 2BZ0CS00_101
X X
E
L
Electronic
D
1/10V Dimmable
D A
DALI Dimmable
If in doubt about the symbols refer
to catalog or website
www.targetti.com
