IPAS ComBridge IPR Bedien- Und Montageanweisung

ComBridge IPR
General Usage
The device is based on the KNXnet/IP standard and it is able to
connect different KNX lines via IP. The separated KNX lines can
communicate in this way. The IP Router can substitute a "classical"
line coupler. The KNX lines are completely galvanically separated
from each other. The data communication between the lines is done
via Multicast on the IP network.
Group Address filter-tables can be loaded in order to reduce the
traffic in the KNX line. The filter-tables are automatically generated
by ETS (Engineering Tool Software)
The physical connection to the KNX line is done via a standard bus
connector terminal block. The IP network is connected via RJ45
connector (100BaseT). The device requires an additional safety low
voltage 24V DC, which has to be connected to the second terminal
block (yellow/white).
The ComBridge IP Router supports up to 5 tunnel connections in
order to connect other clients, e.g. ETS or visualisation tools
(ComBridge Evolution).
The ComBridge IPR can be used as a line coupler or as an area
coupler depending on the ETS project.
The IP Address can be adjusted fix or it can be received from a
DHCP server in the network automatically. Default setting on de-
livery is DHCP.
Device types and accessories
At present the following device types are available:
ComBridge IP Router: Order Number: 3622-141-17
Scope of delivery
The following individual components are included in the delivery of the ComBridge IPR:
•
Complete device with connected bus connector
•
Operating and mounting instructions
Application programs
The following application programs are currently available:
3622-IPRouter-01-0110
For application program functions, please see application program description.
Installation advice
• The device must only be installed and commissioned by an accredited electrical engineer.
• The prevailing safety and protection rules must be heeded.
• The device is intended for interior installation in dry rooms.
• During the installation the device must be switched off.
• Do not open the device! Faulty devices must be returned to the manufacturer.
• Please follow country-specific safety and accident prevention rules as well as all current KNX guidelines.
IPAS GmbH (Rev. 1.0)
Operating and mounting instructions
Order. Nr.: 3622-141-17 ComBridge IPR
Technical Specifications
Power Supply
•
Supply Voltage 24 V DC SELV via connector yellow/white
Consumption: 24V/40mA (ca. 1W)
•
Bus supply via KNX Bus
Control elements
•
Programming Button to toggle between normal and addressing
mode
Display elements
•
LED red Indication normal/addressing mode
•
PWR-LED green: displays operation ok
•
KNX-LED: yellow: displays KNX Communication
•
ETH-LED yellow: displays Ethernet Communication
Connectors
•
Bus connector: KNX bus connector (black/red)
•
Supply 24 V DC connector (white/yellow)
•
Ethernet 100Mbit: RJ-45 connector
Ethernet
•
IP-connection via Ethernet, speed 100 Mbit / second
•
IP address allocation via DHCP service or fixed IP address
Mechanical data
•
Housing: Plastic ABS – V0
•
Dimensions REG housing 2TE:
Width: 36mm
Height: 55mm
Length: 86mm
•
Weight 150 g
•
Mounting: 35mm DIN rail

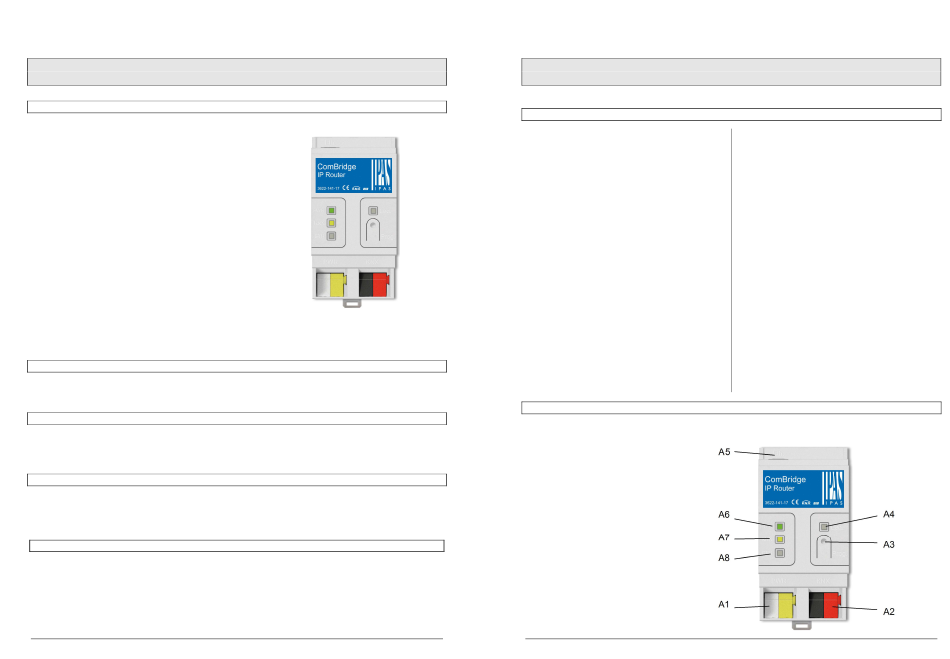

Location and function of the display and control elements
The connectors for KNX bus, 24V supply as well as the Ethernet RJ45 connector are only accessible in the distribution box when the cover
is removed.
A1: DC 24 V bus connector terminal (yellow-
white)
A2: KNX bus connector terminal (black-red)
A3: KNX learning button
A4: KNX programming LED
A5: Ethernet RJ45 socket
A6: Power LED
A7: KNX Communication LED
A8: Ethernet Link + Communication LED
Page IPAS GmbH (Rev. 1.0)
Operating and mounting instructions
Order. Nr.: 3622-141-17
Electrical safety
•
Pollution class (in accordance with EN60664-1): 2
•
Protection type (in accordance with EN 60529): IP20
•
Protection class (according to IEC 1140) III
•
Overvoltage category: III
•
KNX Bus: SELV DC 24 V
EMC requirements
•
Complies with EN 50090-2-2, EN 50491-5-1/-2/-3 and EN
50428
Environmental conditions
•
Clima resistence: EN 50090-2-2, EN50428
•
Environmental conditions during operation: -5°C to +45°C
•
Storage temperature: -25°C to +70°C
•
Rel. humidity (non condensing): 5 % to 93 %
Approbation
KNX registered
CE-Signage
According to EMC-Guidelines (Residential and commercial build-
ings), Low Voltage guidelines
