Water saving sprinkler
Original instructions: Model 1023661 / 1023662
: Please read the manual before
attention
using.
: Always close the water source (water
warning
tap) after use of the garden watering products.
Electric shock hazard -Do not direct the water
•
jet on or near electrical connections, products
or outlets. Do not direct the water jet towards
•
persons or animals. No drinking water.
•
non-commercial use only -commercial use will
void guarantee. For watering use with outdoor
home water faucet only. Not for indoor or appli-
ance use. Recommended pressure - 4 bar.
•
Do not use with water exceeding 38 °C.
and drain before storing in frost free environ-
ment. Do not leave product pressurised while
•
unattended.
Disposal
: Dispose of the product through or
important
via your municipal recycling collection centre.
Warranty terms The manufacturer shall repair
or replace, through the dealer, any parts of the
product found to be faulty due to manufacturing
defects, for a period of 24 months as of the date
of purchase. This service is subject to the fol-
lowing provision: the device has been used for
its intended purpose as per the recommenda-
tions in the user manual. The warranty does not
cover defects due to tampering, improper use or
wear. The warranty is valid only if the customer
returns the product to the dealer complete in
all its parts together with the receipt or other
document proving the date of purchase. The
warranty is fulfilled by supplying a fully functional
replacement device or by repairing the faulty
device. The manufacturer reserves the right to
choose between these options.
EU Declaration of Conformity Fiskars
Oy, Finland hereby certifies that when leaving
Fiskars factory Fiskars sprinklers are in accord-
ance with harmonized EU guidelines, EU stand-
ards of safety and product specific standards.
This certificate becomes void if the units are
modified without Fiskars approval. CE declara-
tion of conformity in accordance with European
Machinery Directive 2006/42/EC annex I and
other applicable directives.
fiskars.com
Use Adjust the watering distance and the di-
rection with the control knob (
options: Full ( ), Center (
D 1
( ).
D4
Storage
Store in a frost-free environment.
1.
Detach, (if it has flow control, turn it to ON
2.
For position) and drain sprinkler before storing by
•
unscrewing drain valve (
Maintenance
To keep your sprinkler performing at its best:
•
Detach Do not rotate the spray tube by hand (
• 1.
Clean spray jets regularly with the cleaning
2.
plug ( ).
A
Clean the inlet filter (if applicable) regularly by
3.
removing and rinsing it (
Troubleshooting
: Sprinkler does not rotate
problem
back and forth.
: Tap is closed.
1.
possible cause
: Open the tap.
tion
: Insufficient water pressure.
2.
possible cause
: Recommended operational pressure
solution
is 4.0 bars.
: Water doesn't go through
3.
possible cause
filter due to caught debris (if applicable).
: Clean filter (
).
E
tion
: Connected hose is twisted/
4.
possible cause
kinked. : Check hose.
solution
: Sprinkler rotates to one side
problem
and stops.
: Insufficient water pressure.
possible cause
: Recommended operational pressure
solution
is 4.0 bars.
: Not all sprinkler's nozzles per-
problem
form.
: Nozzles are blocked with debris
possible cause
: Clean spray jets regularly with
or lime.
solution
the cleaning plug ( ).
A
Water saving sprinkler
). Possible 4 main
D
), Left ( ) and Right
D2 D3
).
A
).
B
).
E
F1
-
solu
A.
B.
C.
D.
E.

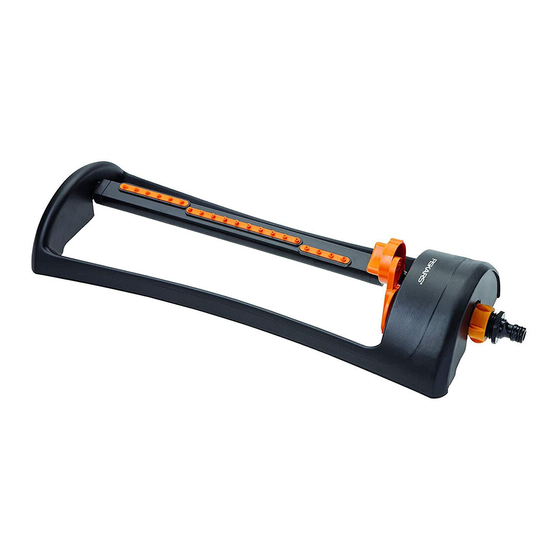

Durable metal base - 1023661 (
F.
-
solu
G.
Watering area length
D1
Recommendation for the size of the garden:
Model 1023661 - for large size (300 – 500 m
Model 1023662 - for medium size (100 – 300 m
* According to the Fiskars garden size guide
recommended operating pressure
operating temperature
.
max
watering distance up to
** Performance is related to operating pressure
Wedgwood Drive, Barlaston,
Stoke-on-Trent, Staffordshire, ST12 9ER,
ukconsumercare@fiskars.com
Fiskars Australia Pty Ltd ,
Arndell Park NSW 2148,
A
B C D
F2
Drain valve doubles as nozzle cleaning plug.
Sprinkler jets.
Spray tube.
Control knob.
Removable water filter catches debris and is easy
to clean.
).
F1
Impact-resistant plastic base - 1023662 (
Universal fit - fits with all type of quick hose connectors
and other brands.
D2
Full
D3
D
D4
water temperature
**
Fiskars UK Limited ,
100 Holbeche Road,
+61 3 8645 2400.
E G
).
F2
Center
Left
Right
)* garden.
2
)* garden.
2
4.0 bar
5 – 50 °C
38 °C
16 x 17/17.5 x 19 m
