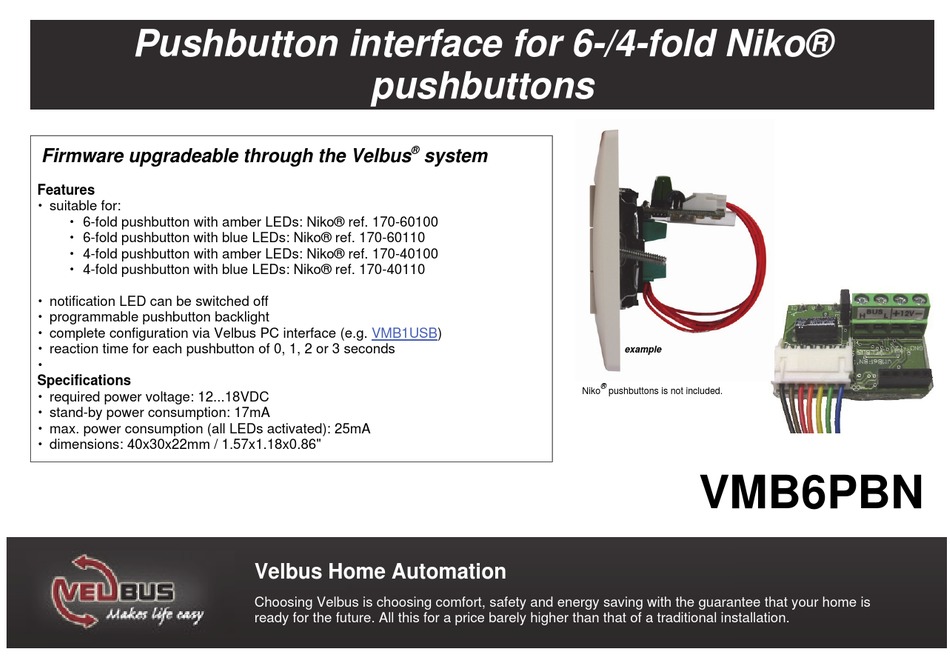

Pushbutton interface for 6-/4-fold Niko®
Firmware upgradeable through the Velbus
Features
suitable for:
6-fold pushbutton with amber LEDs: Niko® ref. 170-60100
6-fold pushbutton with blue LEDs: Niko® ref. 170-60110
4-fold pushbutton with amber LEDs: Niko® ref. 170-40100
4-fold pushbutton with blue LEDs: Niko® ref. 170-40110
notification LED can be switched off
programmable pushbutton backlight
complete configuration via Velbus PC interface (e.g. VMB1USB)
reaction time for each pushbutton of 0, 1, 2 or 3 seconds
Specifications
required power voltage: 12...18VDC
stand-by power consumption: 17mA
max. power consumption (all LEDs activated): 25mA
dimensions: 40x30x22mm / 1.57x1.18x0.86"
pushbuttons
®
system
Velbus Home Automation
Choosing Velbus is choosing comfort, safety and energy saving with the guarantee that your home is
ready for the future. All this for a price barely higher than that of a traditional installation.
example
®
Niko
pushbuttons is not included.
VMB6PBN
