General

Fronius Signal
Card

Overview

Downloaded from www.Manualslib.com
The Fronius Signal Card keeps you up-to-date with the operating status of
your inverter in real time. It may be used with the following inverters:
- Fronius IG
- Fronius IG Plus
- Fronius IG Plus V
Note the following special features of the Fronius Signal Card:
- The Fronius Signal Card is not a Fronius Solar Net component and
therefore does not require a Datalogger
- The Fronius Signal Card is only available as a card and can only ever
monitor one inverter at a time
- The Fronius Signal Card detects serious inverter malfunctions
- If a malfunction is detected, the Fronius Signal Card trips a relay and
also emits an acoustic signal (see „Jumper" chapter)
- The relay activates a consumer chosen by the user (e.g. a visual or
acoustic alarm)

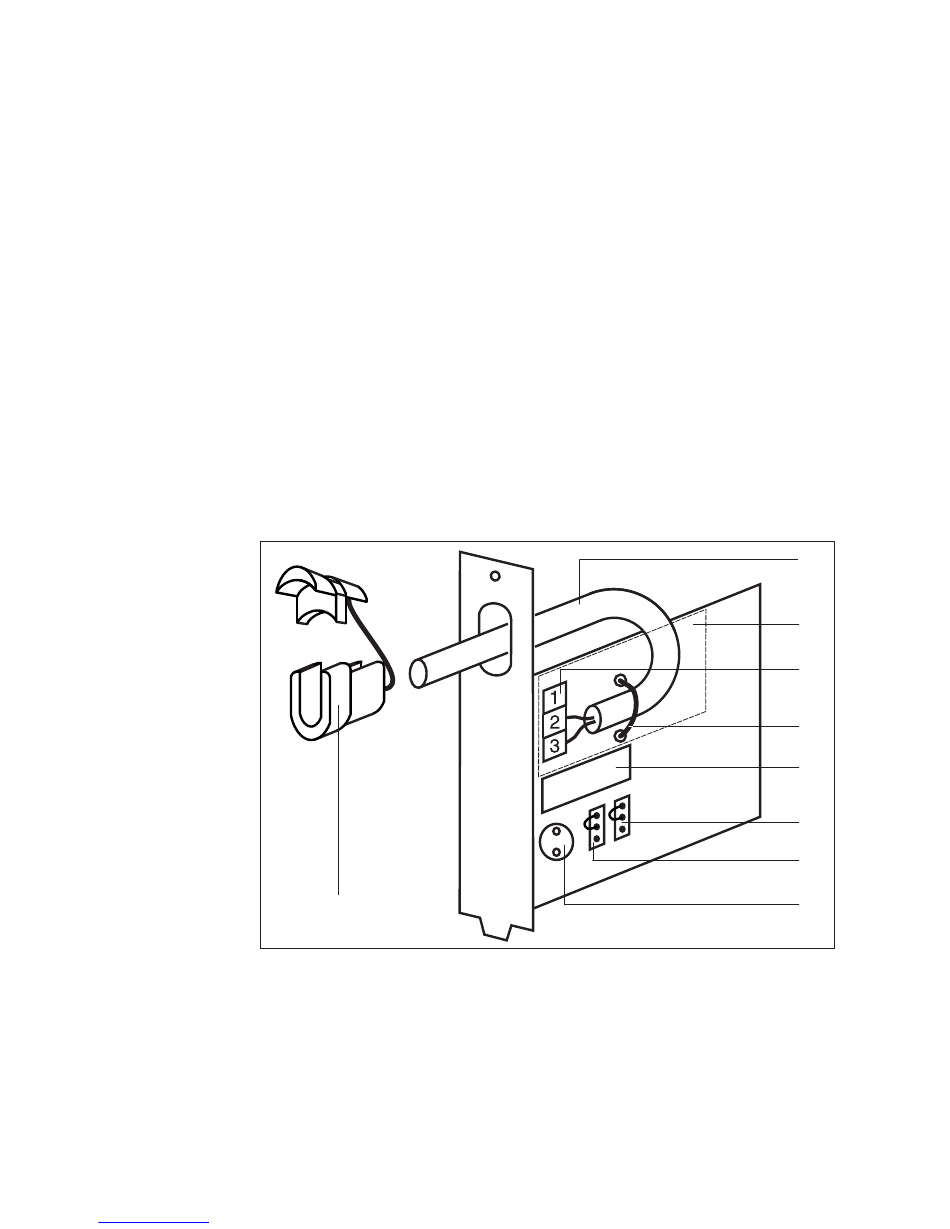

(9)
(1) Connection cable (2-pin or 3-pin sheathed cable)
(2) Component-free zone (route the connection cable so that it lies within
this zone)
(3) Terminal
(4) Cable tie
(5) Relay
(6) Service code jumper
(7) Buzzer jumper
(8) Buzzer
(9) Strain-relief device for connection cable
manuals search engine
4
(1)
(2)
(3)
(4)
(5)
(6)
(7)
(8)
